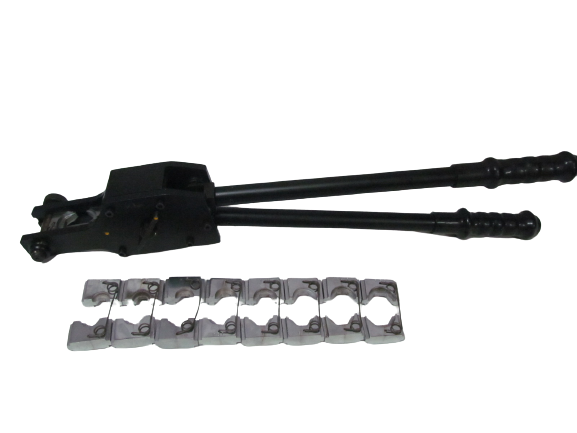

Under Hand Crimping Tools, put text : PL series: Fitted with jaws, Sapsons hand-operated plier-type PL series crimping tools are designed to have better metal-to-metal contact between wires and non-insulated cable terminal ends. Size: 0.5 sq. mm to 16.0 sq. mm GD series: Sapsons GD series bench-type hand crimping tool is suitable for bench-mounted crimping and production line applications. Size: 10 sq. mm to 185 sq. mm GP series: Sapsons GP series mechanical gear-powered hand-operated crimping tool is a multi-stroke tool with ratchet & pin lock, and a rapid motion with maximum handle opening of 90°. This lightweight yet sturdy tool comes with interchangeable hex-type dies and is incredibly handy for carrying out tasks in a remote setting. Size: 25 sq. mm to 400 sq. mm

MH Series Hydraulic Crimping Tools : The MH Series Hydraulic Crimping Tools are robust, high-performance tools designed for crimping a wide range of electrical connectors and terminals with precision and reliability. These tools are commonly used in industrial, electrical, and construction settings for cable termination and assembly.

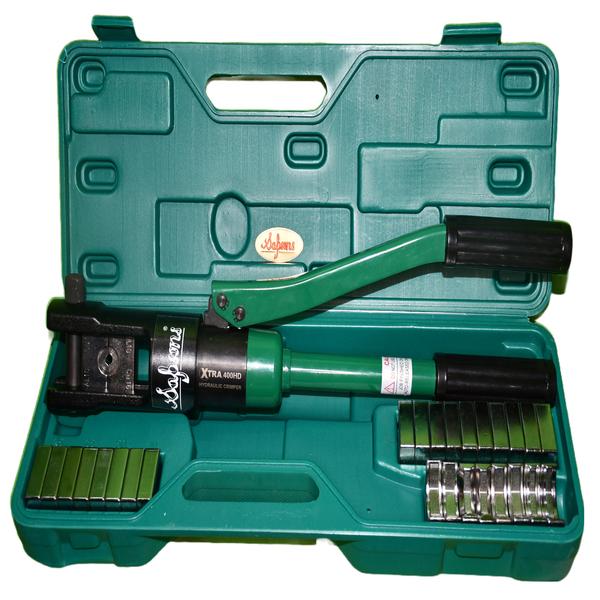

SAPSONS make HP Series Slim type Hand operated Hydraulic crimping tool with built-in hydraulic pump, is one of the unique tool for crimping both aluminium and copper lugs and ferrules. These Crimping Tools are light in weight, easy to use and easy to carry. The HP Series Hand Crimping Tools are supplied in specially melded plastic carrying case, with hex dies of size from 10 to 300 sq.mm. The HP Series Hand Crimping Tools are very useful for electrical maintenance engineers and contractors, as they are very handy and easy to carry anywhere. * MODEL NO. SAP-HP-300

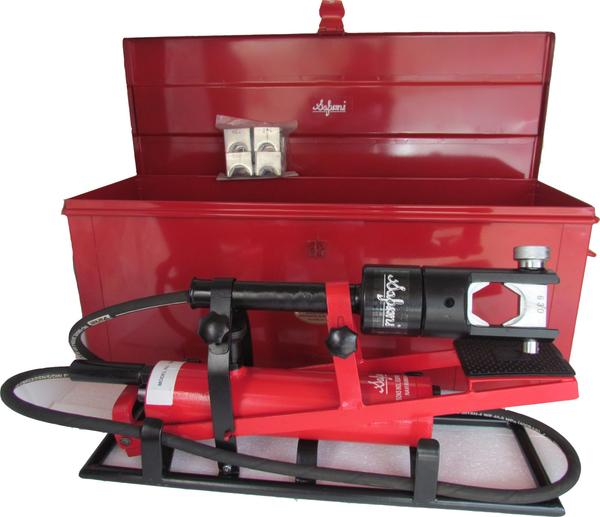

SAPSONS ‘FT’ Series Foot operated Hydraulic Crimping Tools are one of our Unique design, supplied with Heavy duty Foot operated Pump - with sturdiest design, fitted over Heavy steel frame, for well-balanced operation. These are suitable for crimping Copper and Aluminium Cable terminal ends and in-line Connectors upto 1200 Sq.mm. Our FT Series Hydraulic Crimping Tools are equipped with in-built Safety release valve, to prevent the overloading, thus protecting both Pump & Crimping Head. Available Models: * SAP-FT-400 – Capacity: 50.0 To 400.0 Sq. Mm (Supplied With Set Of 9 Sizes Of Dies) * SAP-FT-630 – Capacity: 240.0 To 630.0 Sq. Mm (Supplied With Set Of 5 Sizes Of Dies) * SAP-FT-1000 – Capacity: 500.0 To 1000.0 Sq. Mm (Supplied With Set Of 4 Sizes Of Dies) * SAP-FT-1200 – Capacity: 500.0 To 1200.0 Sq. Mm (Supplied With Set Of 5 Sizes Of Dies) * Special Model Can Be Supplied With Additional Dies, As Per Customer’s Need. * Extra Long Hose Can Be Supplied With Tool On Request, At Extra Cost. The FT Series Hydraulic Crimping Tools that we provide are suitable for any heavy duty crimping applications, to be done at ground positions. Hydraulic crimping head is slim in Design, suitable for easy accessibility inside the panels and confined areas, where other tools cannot be used. Available Models: * SAP-FT-400 – Capacity: 50.0 To 400.0 Sq. Mm (Supplied With Set Of 9 Sizes Of Dies) * SAP-FT-630 – Capacity: 240.0 To 630.0 Sq. Mm (Supplied With Set Of 5 Sizes Of Dies) * SAP-FT-1000 – Capacity: 500.0 To 1000.0 Sq. Mm (Supplied With Set Of 4 Sizes Of Dies) * SAP-FT-1200 – Capacity: 500.0 To 1200.0 Sq. Mm (Supplied With Set Of 5 Sizes Of Dies) * Special Model Can Be Supplied With Additional Dies, As Per Customer’s Need. * Extra Long Hose Can Be Supplied With Tool On Request, At Extra Cost.

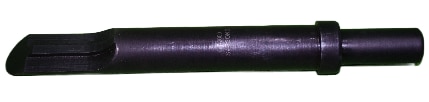

Sapsons SKT series knockout tools are used to punch tubes/tube stubs out of tube sheets. They're used manually or with pneumatic chipping hammer (either directly or after the collapse of tube-ends). Tube Size: 3/8"- 4"(9.5 - 101.6 mm) OD

Tube Collapsing Tools are specialized mechanical devices used primarily in manufacturing, maintenance, and decommissioning processes to intentionally deform or crush tubing. The goal is to collapse the tube structure, making it unusable for further operation or ensuring it is securely sealed or destroyed. These tools are common in industries such as nuclear power, petrochemical, heat exchanger manufacturing, and aerospace. Tube Size: 3/8' - 2.1/2' (9.5 - 63.5 mm) OD

Riveting Tools: Riveting tools are specialized tools used to install rivets, which are fasteners used to join materials together—typically metal or plastic in a permanent and strong way. Riveting is commonly used in construction, automotive, aircraft, and manufacturing industries.

HP series : slim-type hand-operated hydraulic crimping tools are designed for hexagonal crimping of aluminum/copper lugs as well as ferrules, and come with a built-in hydraulic pump. Supplied in a specially molded plastic carrying case, these crimping tools are lightweight, portable and easy to use, making them ideal for electrical maintenance engineers and contractors. Size: 10 sq. mm to 300 sq. mm

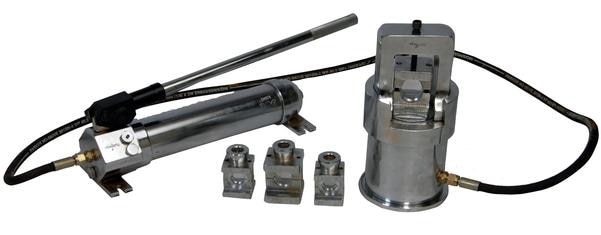

‘HJ’ Series : Hydraulic Crimping Tools are made out of Solid Special Alloy Steel, where weight is not an issue to the customer, and it is mainly used in manufacturing plants, with Crane facility. These tools are Economy model but heavy in design. HJ Series Hydraulic Crimping Tools are available for crimping Copper and Aluminum Cable terminal ends up to 400 Sq.mm with Ring or Hex dies. Construction and Working: The Crimping Jack and Hydraulic Pump are connected with 2 Mtrs. long Hydraulic Hose pipe and the Hydraulic Hand pump is designed to develop Pressure of up to 250 Kg/ Sq.mm. The mechanism within the pump controls the pressure developed, while crimping and safety valve prevents overloading.
