Under Hand Crimping Tools, put text : PL series: Fitted with jaws, Sapsons hand-operated plier-type PL series crimping tools are designed to have better metal-to-metal contact between wires and non-insulated cable terminal ends. Size: 0.5 sq. mm to 16.0 sq. mm GD series: Sapsons GD series bench-type hand crimping tool is suitable for bench-mounted crimping and production line applications. Size: 10 sq. mm to 185 sq. mm GP series: Sapsons GP series mechanical gear-powered hand-operated crimping tool is a multi-stroke tool with ratchet & pin lock, and a rapid motion with maximum handle opening of 90°. This lightweight yet sturdy tool comes with interchangeable hex-type dies and is incredibly handy for carrying out tasks in a remote setting. Size: 25 sq. mm to 400 sq. mm

MH Series Hydraulic Crimping Tools : The MH Series Hydraulic Crimping Tools are robust, high-performance tools designed for crimping a wide range of electrical connectors and terminals with precision and reliability. These tools are commonly used in industrial, electrical, and construction settings for cable termination and assembly.

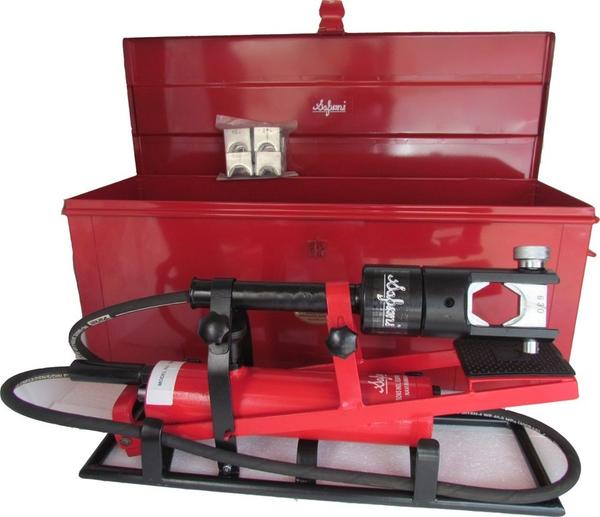

SAPSONS ‘FT’ Series Foot operated Hydraulic Crimping Tools are one of our Unique design, supplied with Heavy duty Foot operated Pump - with sturdiest design, fitted over Heavy steel frame, for well-balanced operation. These are suitable for crimping Copper and Aluminium Cable terminal ends and in-line Connectors upto 1200 Sq.mm. Our FT Series Hydraulic Crimping Tools are equipped with in-built Safety release valve, to prevent the overloading, thus protecting both Pump & Crimping Head. Available Models: * SAP-FT-400 – Capacity: 50.0 To 400.0 Sq. Mm (Supplied With Set Of 9 Sizes Of Dies) * SAP-FT-630 – Capacity: 240.0 To 630.0 Sq. Mm (Supplied With Set Of 5 Sizes Of Dies) * SAP-FT-1000 – Capacity: 500.0 To 1000.0 Sq. Mm (Supplied With Set Of 4 Sizes Of Dies) * SAP-FT-1200 – Capacity: 500.0 To 1200.0 Sq. Mm (Supplied With Set Of 5 Sizes Of Dies) * Special Model Can Be Supplied With Additional Dies, As Per Customer’s Need. * Extra Long Hose Can Be Supplied With Tool On Request, At Extra Cost. The FT Series Hydraulic Crimping Tools that we provide are suitable for any heavy duty crimping applications, to be done at ground positions. Hydraulic crimping head is slim in Design, suitable for easy accessibility inside the panels and confined areas, where other tools cannot be used. Available Models: * SAP-FT-400 – Capacity: 50.0 To 400.0 Sq. Mm (Supplied With Set Of 9 Sizes Of Dies) * SAP-FT-630 – Capacity: 240.0 To 630.0 Sq. Mm (Supplied With Set Of 5 Sizes Of Dies) * SAP-FT-1000 – Capacity: 500.0 To 1000.0 Sq. Mm (Supplied With Set Of 4 Sizes Of Dies) * SAP-FT-1200 – Capacity: 500.0 To 1200.0 Sq. Mm (Supplied With Set Of 5 Sizes Of Dies) * Special Model Can Be Supplied With Additional Dies, As Per Customer’s Need. * Extra Long Hose Can Be Supplied With Tool On Request, At Extra Cost.

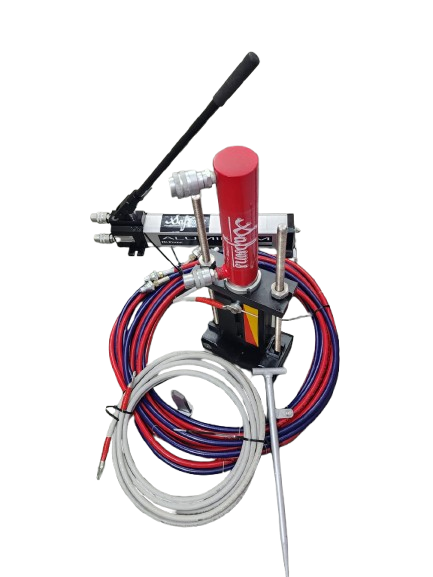

SAPSONS HYDRAULIC CABLE SPIKING TOOL is specially designed to ensure the absence of voltage in low voltage and Medium voltage power cables before undertaking any electrical maintenance work. Human life is precious and by using our Cable spiking tool, the safety of the Electrical team is ensured. They can simply check the Power cable and eliminate accident. What is cable Spiking tools? Cable Spiking tool is one of the Safety tools used to protect the Electrical workers from any Electrical accident while carrying out cable repair, maintenance, jointing or end termination etc... The cable spiking chisel pierces the sheath of the cable, as well as its insulation, to reach the main conductor. If the cable is powered prior to cutting, an arcing fault is caused by breaking down the insulation. Why are spike tool used? Cable spiking tool is used to ensure that the power cable under maintenance is not live. Cables are spiked with the help of Cable spiking tool and confirm the circuit is not Live. It is one of the very important safety procedure universally followed and the Cables are preliminarily spiked before carrying out jointing or terminating of faulty 11kV/33kV cables. Our Cable spiking tool is intended to prove that any power cable under maintenance is previously disconnected, is dead before starting the work, when these cables are undergoing repair, diversion or maintenance. The design of SAPSONS cable spiking tool is robust and reliable which consist of a hand operated hydraulic pump connected by a hydraulic hose to the hydraulic cylinder. The Cable Spiking chisel which is made of special alloy steel and hardened is connected to the piston of the Hydraulic cylinder. When the cylinder is operated thru the Hydraulic hand pump, the chisel pierce into the cable to reach the conductor. The Cylinder is mounted on a Rectangular shaped tubular steel body which is placed on cable dia and locked with the lower base clamp by threaded steel rods on both the side. A separate earthing cable of approx. 6 mtrs. long crimped at one end with suitable lugs connected with the tool and the other end is having the earthing rod for grounding.

SAPSONS make HP Series Slim type Hand operated Hydraulic crimping tool with built-in hydraulic pump, is one of the unique tool for crimping both aluminium and copper lugs and ferrules. These Crimping Tools are light in weight, easy to use and easy to carry. The HP Series Hand Crimping Tools are supplied in specially melded plastic carrying case, with hex dies of size from 10 to 300 sq.mm. The HP Series Hand Crimping Tools are very useful for electrical maintenance engineers and contractors, as they are very handy and easy to carry anywhere. * MODEL NO. SAP-HP-300

‘HJ’ Series : Hydraulic Crimping Tools are made out of Solid Special Alloy Steel, where weight is not an issue to the customer, and it is mainly used in manufacturing plants, with Crane facility. These tools are Economy model but heavy in design. HJ Series Hydraulic Crimping Tools are available for crimping Copper and Aluminum Cable terminal ends up to 400 Sq.mm with Ring or Hex dies. Construction and Working: The Crimping Jack and Hydraulic Pump are connected with 2 Mtrs. long Hydraulic Hose pipe and the Hydraulic Hand pump is designed to develop Pressure of up to 250 Kg/ Sq.mm. The mechanism within the pump controls the pressure developed, while crimping and safety valve prevents overloading.

SAPSONS ‘FT’ Series Foot operated Hydraulic Crimping Tools are one of our Unique design, supplied with Heavy duty Foot operated Pump - with sturdiest design, fitted over Heavy steel frame, for well-balanced operation. These are suitable for crimping Copper and Aluminium Cable terminal ends and in-line Connectors upto 1200 Sq.mm. Our FT Series Hydraulic Crimping Tools are equipped with in-built Safety release valve, to prevent the overloading, thus protecting both Pump & Crimping Head. Available Models: * SAP-FT-400 – Capacity: 50.0 To 400.0 Sq. Mm (Supplied With Set Of 9 Sizes Of Dies) * SAP-FT-630 – Capacity: 240.0 To 630.0 Sq. Mm (Supplied With Set Of 5 Sizes Of Dies) * SAP-FT-1000 – Capacity: 500.0 To 1000.0 Sq. Mm (Supplied With Set Of 4 Sizes Of Dies) * SAP-FT-1200 – Capacity: 500.0 To 1200.0 Sq. Mm (Supplied With Set Of 5 Sizes Of Dies) * Special Model Can Be Supplied With Additional Dies, As Per Customer’s Need. * Extra Long Hose Can Be Supplied With Tool On Request, At Extra Cost. The FT Series Hydraulic Crimping Tools that we provide are suitable for any heavy duty crimping applications, to be done at ground positions. Hydraulic crimping head is slim in Design, suitable for easy accessibility inside the panels and confined areas, where other tools cannot be used. Available Models: * SAP-FT-400 – Capacity: 50.0 To 400.0 Sq. Mm (Supplied With Set Of 9 Sizes Of Dies) * SAP-FT-630 – Capacity: 240.0 To 630.0 Sq. Mm (Supplied With Set Of 5 Sizes Of Dies) * SAP-FT-1000 – Capacity: 500.0 To 1000.0 Sq. Mm (Supplied With Set Of 4 Sizes Of Dies) * SAP-FT-1200 – Capacity: 500.0 To 1200.0 Sq. Mm (Supplied With Set Of 5 Sizes Of Dies) * Special Model Can Be Supplied With Additional Dies, As Per Customer’s Need. * Extra Long Hose Can Be Supplied With Tool On Request, At Extra Cost.

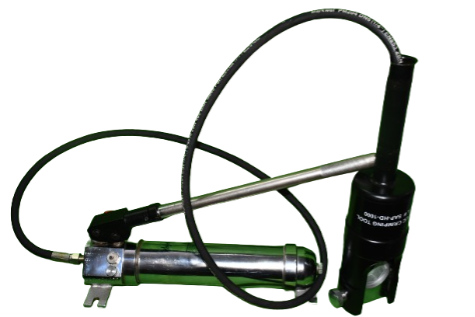

SAPSONS ‘HD’ Series Hydraulic Crimping Tools is designed for crimping with Ring or Hex dies to crimp Copper / Aluminium Cable terminal ends/ Ferrules upto 1200 Sq. mm, powered by Heavy duty powerful Hand Pump. The Crimping Head and Hydraulic Hand Pump is connected with 2 Mtr. long Hydraulic Hose pipe and the Hydraulic Hand pump is designed to develop Pressure from 300 to 700 Bar. The crimping Head is Slim in design and made from Solid Special Alloy Steel to withstand the pressure developed while crimping. The mechanism within the pump controls the pressure developed, while crimping and safety valve prevents overloading. This Slim type Hand held Hydraulic crimping head is suitable for Heavy duty crimping and can be easily used inside the panels, very confined areas, critical positions and very critical applications. Available Models: * SAP-HD-400 – Capacity: 50.0 To 400.0 Sq. Mm (Supplied With Sets Of 9 Sizes Of Dies) * SAP-HD-630 – Capacity: 240.0 To 630.0 Sq. Mm (Supplied With Sets Of 5 Sizes Of Dies) * SAP-HD-1000 – Capacity: 500.0 To 1000.0 Sq. Mm (Supplied With Sets Of 4 Sizes Of Dies) * SAP-HD-1200 – Capacity: 500.0 To 1200.0 Sq. Mm (Supplied With Sets Of 5 Sizes Of Dies) * Special Model Can Be Supplied With Additional Dies, As Per Customer’s Need. * Extra Long Hose Can Be Supplied With Tool On Request, At Extra Cost.

Sapsons SKT series knockout tools are used to punch tubes/tube stubs out of tube sheets. They're used manually or with pneumatic chipping hammer (either directly or after the collapse of tube-ends). Tube Size: 3/8"- 4"(9.5 - 101.6 mm) OD
