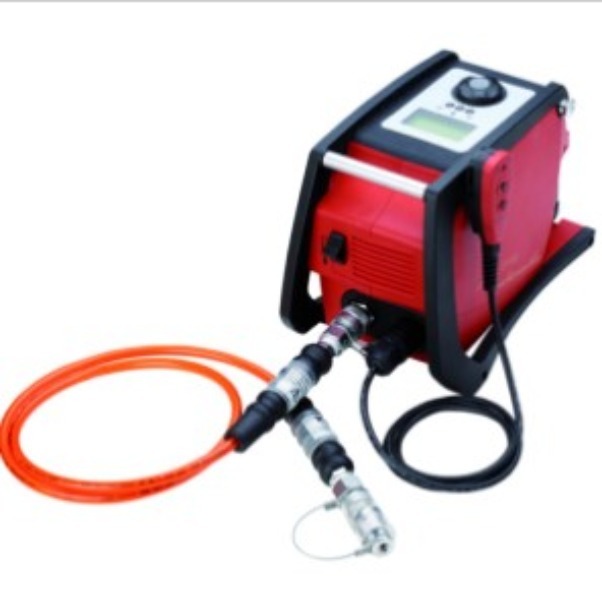

The CP700 – Compact Hydraulic Pump with Display is a portable, battery-powered electro-hydraulic pump designed for operating high-pressure hydraulic tools such as cutting and crimping heads. It is widely used in electrical installation, construction, and industrial maintenance applications.
Description :-
The CP700 is engineered to deliver high pressure up to 700 bar (70 MPa) while maintaining a compact, lightweight, and ergonomic design. It integrates an intelligent control system with a digital display, enabling precise monitoring, diagnostics, and programmable operation.
Key Features :
• Compact & portable design
Lightweight (~4.5–4.6 kg) with ergonomic handling for both right- and left-handed users.
• High-pressure performance
Operates hydraulic tools up to 700 bar, suitable for heavy-duty cutting and crimping.
• Integrated digital display
- Shows actual vs. set pressure
- Displays error messages and diagnostics
- Allows monitoring of pressure curves and cycles
• Programmable operation
Pre-installed programs for cutting/crimping, with customizable pressure and cycle settings.
• Electronic pressure control
Built-in sensor ensures accurate and repeatable pressure application.
• Double-piston technology
Provides fast oil flow at low pressure and efficient high-pressure delivery.
• Battery-powered system
Uses 18V Li-ion battery (3.0 Ah) with charge indicator for cordless operation.
• Data recording & USB interface
Stores up to thousands of cycles; data can be exported to a PC for analysis and maintenance tracking.
• Remote control operation
Includes wired remote (approx. 1.5 m) for convenient operation and safety.
Technical Specifications :
• Operating pressure: 700 bar (70 MPa)
• Power: ~200 W
• Flow rate:
- Low pressure (<100 bar): ~1.2 L/min
- High pressure (up to 700 bar): ~0.2 L/min
• Battery: 18 V DC, 3.0 Ah Li-ion
• Dimensions: approx. 290 × 190 × 205 mm
• Weight: ~4.5 kg
• Operating temperature: −20°C to +55°C
Applications :
• Hydraulic crimping tools
• Cable cutting equipment
• Industrial pressing operations
• Maintenance and installation tasks in power and infrastructure sectors
Typical Kit Includes-
• CP700 pump unit
• Li-ion battery & charger
• High-pressure hose (≈1.5 m)
• Remote control
• USB cable & software
• Carrying bag/strap
Summary :-
The CP700 Compact Hydraulic Pump stands out for its portability, intelligent control system, and high-pressure capability. Its display interface and programmable functions make it especially useful for applications requiring precision, traceability, and reliability in hydraulic operations.
In short, the CP700 combines high pressure, portability, and smart digital control for efficient hydraulic operations
