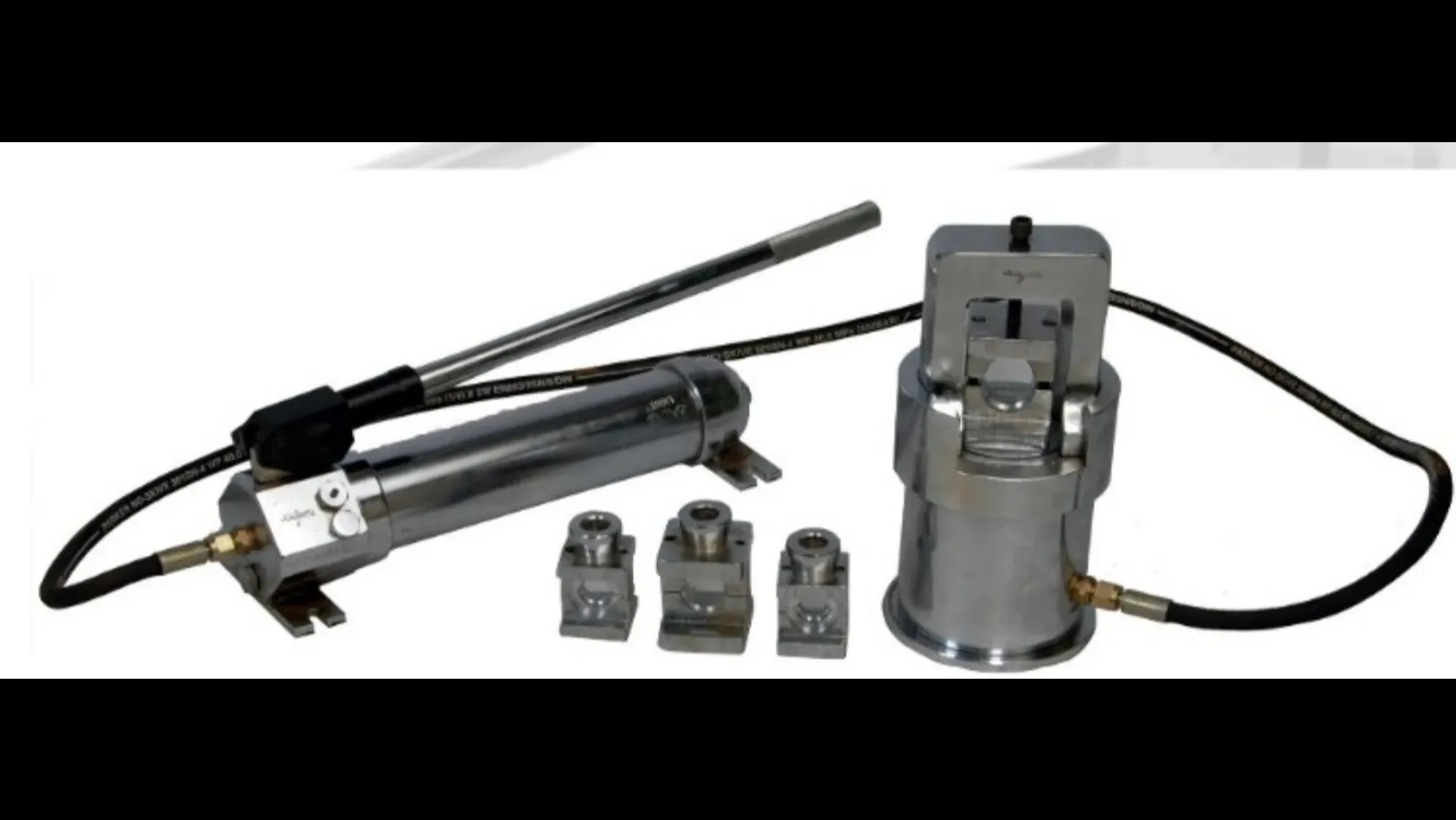

The SAPSONS ‘HJ’ Series Hydraulic Crimping Tools are heavy-duty hydraulic tools designed for crimping copper and aluminium cable terminal ends. They are manufactured from solid special alloy steel and are intended primarily for industrial / manufacturing environments where tool weight is less critical and crane handling facilities are available.
Key Features :
• Heavy-duty, robust construction using special alloy steel.
• Economy-model design with a sturdy/heavy construction.
• Suitable for crimping Copper and Aluminium cable terminal ends.
• Crimping capacity up to 400 sq. mm.
• Uses interchangeable Ring or Hex dies.
• Crimping jack and hydraulic hand pump are connected by a 2-metre hydraulic hose.
• Hydraulic hand pump develops pressure of up to 250 kg/sq. mm as specified by SAPSONS.
• Built-in hydraulic mechanism controls the developed pressure.
• Safety valve helps prevent overloading during operation.
Working Principle :
The HJ Series operates through a separate hydraulic hand pump and crimping jack. When the pump is operated, hydraulic pressure is transmitted through the 2-metre hose to the crimping head. The hydraulic force drives the selected die to compress the cable terminal onto the conductor, producing a secure mechanical and electrical connection. The pressure-control mechanism and safety valve help regulate operation and protect the system against excessive pressure.
Typical Applications
The HJ Series is particularly suited to:
• Electrical cable termination
• Industrial cable assembly
• Manufacturing plants
• Heavy-duty cable crimping operations
• Copper and aluminium lug/terminal crimping
• Applications where a robust, stationary or crane-assisted tool is acceptable
In Summary,
Parameter SAPSONS HJ Series
Tool Type Hydraulic Crimping Tool
Construction Solid Special Alloy Steel
Application Copper & Aluminium Cable Terminals
Maximum Crimping Size Up to 400 sq. mm
Die Type Ring / Hex
Hydraulic Hose 2 metres
Pump Type Hydraulic Hand Pump
Maximum Stated Pressure Up to 250 kg/sq. mm
Design Heavy-duty / Economy
Primary Environment Manufacturing & Industrial Plants
In short:
The SAPSONS HJ Series is a rugged, economical, heavy-duty hydraulic crimping solution up to 400 sq. mm, best suited for industrial environments where durability and high crimping force are more important than low weight or portability.
