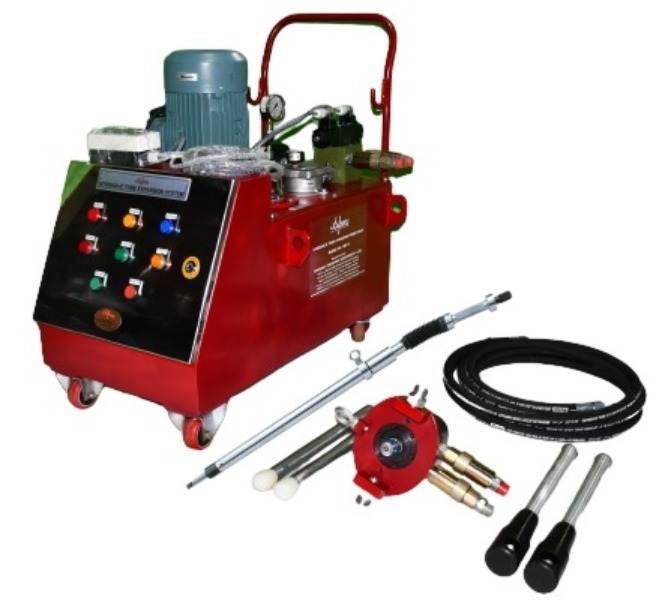

Sapsons Hydraulic Tube Expansion System is designed for creating tight, leak-proof, and high-strength seals between tubes and tube sheets in heat exchangers, boilers, and condensers. These systems use high-pressure hydraulic, pneumatic, or electric power to drive rollers that cold-work the tube walls. . It uses hydraulic pressure (rather than hand force) to push out the expander heads inside the tube, creating a uniform, leak-proof mechanical connection.
A hydraulic tube expansion system consists of:
1. Hydraulic Power Unit (Pump) – Generates high-pressure hydraulic fluid.
2. Hoses – Carry pressure from the pump to the tool head.
3. Tube Expander Head / Rollers / Mandrel – The part inserted inside the tube that expands outward.
4. Control Valves / Gauges – Let the operator control pressure and expansion force.
When activated, the hydraulic unit pushes fluid into the expander head, causing its segments or rollers to move outward and press the tube’s outer diameter (OD) firmly into its seat (like a tube sheet hole), creating a tight mechanical seal.
Why Use Hydraulic Expansion?
Hydraulic tube expanders are preferred over manual or mechanical tools because they:
Provide controlled, consistent expansion force — reduces risk of over-expansion or distortion
Work faster and with less operator effort
Can handle larger tubes or thicker walls that are difficult manually
Are ideal for high-production or heavy-duty industrial work
Where They’re Used
Hydraulic tube expander systems are widely used in industries such as:
Power plants — boilers, economizers
Heat exchangers — oil, chemical, process cooling systems
Condensers and radiators
Installing tubes in shell-and-tube heat exchangers
Petrochemical & refinery equipment
Shipbuilding & HVAC maintenance
In all these, tubes must be expanded into tube sheets, so they don’t leak fluids (steam, water, refrigerants, etc.) under pressure or temperature changes.
How It Works
• Select the correct expander head for your tube’s diameter and material.
• Insert the head into the end of the tube to be expanded.
• Connect the expander head to the hydraulic pump via hoses.
• Activate the hydraulic pump — fluid pressure pushes the expander outward.
• Tube expands outward into the tube sheet or support hole.
• Release pressure and remove the tool — tube remains fitted tightly.
Sapsons specializes in hydraulic tube expansion systems. They are designed for precision, featuring controlled torque output, portability for field use, and the ability to expand, for example, tube IDs ranging from 3.8 mm to 73.7 mm.
Sapsons also offers customized solutions for specific tube expansion requirements, for more details visit www.sapsons.co.in.
