Sapsons Hydraulic Tube Expansion Systems are industrial-grade tools manufactured by Sapsons Industrial Equipments Pvt. Ltd., designed for precise and reliable expansion of tubes into tube sheets in critical equipment like heat exchangers and boilers.
Hydraulic Tube Expansion Systems are specialized tools used in industries like power generation, oil and gas, petrochemicals, and HVAC for the mechanical expansion of tubes into tube sheets. This process creates a tight, leak-proof seal between the tube and the sheet without the need for welding or adhesives.
Product Description :
Sapsons Hydraulic Tube Expansion Systems use controlled hydraulic pressure to expand tubes radially, ensuring a tight, leak-proof, and mechanically strong joint between the tube and tube sheet—without welding or adhesives.
These systems are widely used in industries such as:
• Power generation
• Oil & gas
• Petrochemicals
• HVAC and refrigeration systems
Key Features :
• High precision expansion for consistent joint quality
• Leak-proof sealing ensuring long-term reliability
• Hydraulic pressure control for uniform force application
• Suitable for various tube materials (including stainless steel and thick-walled tubes)
• Durable construction for long service life
• Reduced stress on tube material, minimizing damage during expansion

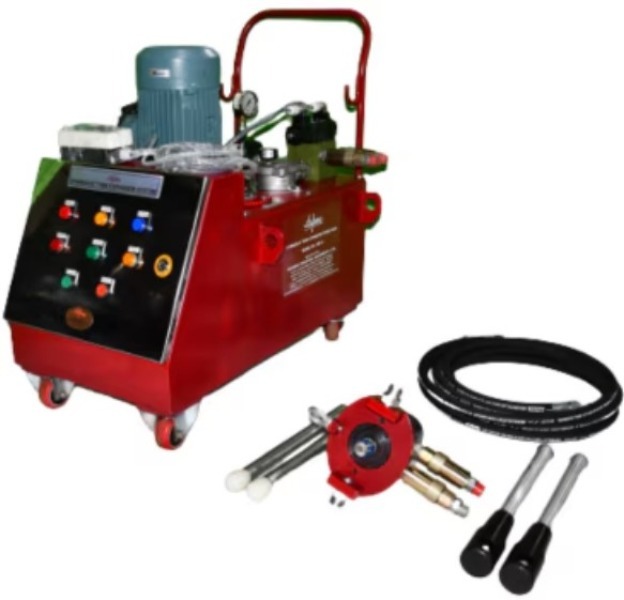

Components (Typical Sapsons System) :
• Hydraulic power pack (pressure generation unit)
• Expansion tool / expander head
• Hoses and connectors
• Control system (manual or automatic)
Working Principle :
The system applies high-pressure hydraulic fluid inside the tube, causing it to expand outward and tightly fit into the surrounding tube sheet. This ensures:
1. The hydraulic expander is inserted into the tube.
2. Pressurized hydraulic fluid activates the expansion mechanism.
3. The tube expands outward into the tube sheet hole.
4. A permanent, tight (Strong) mechanical bond is formed.
5. Elimination of gaps or leakage paths
Advantages :
• Eliminates need for welding
• Reduces risk of tube damage
• Ensures uniform expansion across all tubes
• Improves efficiency and reduces rework
• Ideal for critical applications requiring leak-proof joints
Typical Applications :
• Heat exchangers
• Condensers
• Boilers
• Chillers
• Oil coolers
Sapsons Hydraulic Tube Expansion Systems are engineered for precision, durability, and efficiency, making them a preferred choice for industries where tube joint integrity and leak prevention are critical.
