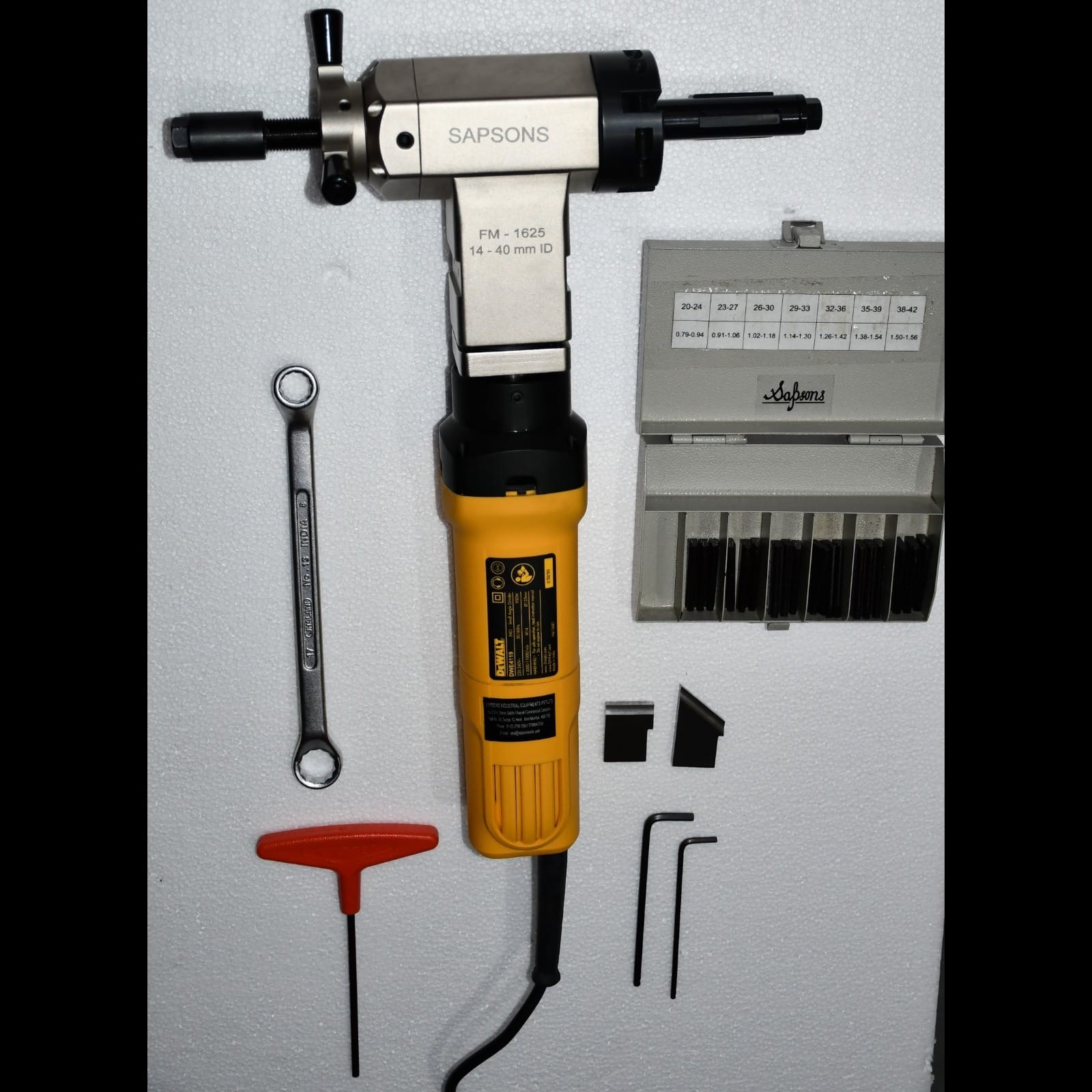

A Tube End Facing Machine is a portable or stationary machine used to accurately face, bevel, and prepare the ends of tubes and pipes before welding, fitting, or assembly. It ensures a smooth, square, and uniform tube end, which is essential for strong and defect-free joints. They can be manual, semi-automatic, or fully automatic (CNC), with adjustable speed controls to handle various tube diameters and wall thicknesses.
It is self clamping design, which gets locked into the Inner dia of tube and gives perfect clamping and accurate machining
Always follow safety procedures while operating the machine
The tube end facing machine improves welding quality, reduces rework, and increases productivity in tube and pipe fabrication work.
Construction / What it is made of:
The machine is generally made of high-strength alloy steel or hardened steel for durability. It consists of an electric or pneumatic motor, a gearbox, clamping mechanism, cutting head, and replaceable cutting tools made of HSS or carbide. The body is designed to withstand heavy industrial use. Handles various materials, including stainless steel, Inconel, and duplex.
Mechanism:
The machine holds the tube firmly in a clamping mechanism while rotating cutting tools (carbide tips) move in to cut the tube end, ensuring high concentricity and precision.
Uses:
• End Preparation: Facing (squaring) and chamfering (beveling) tube ends for butt welding or orbital welding, reducing weld setup time.
• Deburring: Removing burrs and sharp edges from both internal and external diameters.
• Industries Served: Widely used in boiler manufacturing/maintenance, HVAC systems, automotive exhaust systems, pharmaceuticals, beverage, and dairy (high-purity applications).
