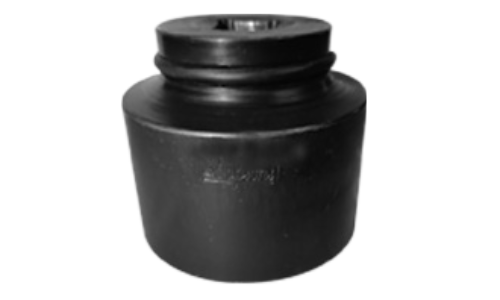

Impact Sockets

SOCKET SET

1/2" Metric Size

MODEL NO.	QTY.	SOCKET A/F
SS-50 13M	13 PIECES	8,9,10,11,12,13,14,15,16,17,18,19,21
SS-50 16M	16 PIECES	10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,27
SS-50 6M	6 PIECES	13,14,15,16,17,18
SSD-50 16M	16 PIECES DEEP	10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,27
SSD-50 12M	12 PIECES DEEP	10,11,12,13,14,15,16,17,18,19,20,21

1/2" Fractional Size

MODEL NO.	QTY.	SOCKET A/F
SS-50 12F	11 PIECES + U JOINT	1/2, 9/16, 5/8, 3/4, 13/16, 1, 1.1/16, 1.1/8, U-JOINT
SS-50 13F	13 PIECES	7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1, 1.1/16, 1.1/8, 1.3/4
SS-50 07F	7 PIECES	7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16
SSD-50 15F	14 PIECES DEEP	3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1, 1.1/16, 1.1/8, 1.1/4
SSD-50 07F	7 PIECES DEEP	7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16

STANDARD SIZES

Metric Hexagon

3/8" METRIC HEXAGON
A/F mm	MODEL NO.	D mm	d mm	TH mm	C mm	OAL mm	Wt. Kg.
8 9 10	IS-38 08M IS-38 09M IS-38 10M	14.0 15.0 16.0	19.0 19.0 19.0	6.0 7.0 7.0	13.0 13.0 13.0	27.0 27.0 27.0	0.025 0.025 0.030
11 12 13	IS-38 11M IS-38 12M IS-38 13M	18.0 19.0 22.0	19.0 19.0 22.0	8.0 9.0 10.0	13.0 13.0 16.0	27.0 27.0 30.0	0.030 0.040 0.040
14 15 16	IS-38 14M IS-38 15M IS-38 16M	22.0 24.0 24.0	22.0 22.0 22.0	10.0 11.0 11.0	16.0 16.0 16.0	30.0 30.0 30.0	0.050 0.055 0.060
17 18 19	IS-38 17M IS-38 18M IS-38 19M	26.0 28.0 28.0	22.0 22.0 22.0	12.0 12.0 12.0	18.0 18.0 18.0	32.0 32.0 32.0	0.060 0.065 0.070
20 21 22	IS-38 20M IS-38 21M IS-38 22M	30.0 30.0 32.0	24.0 24.0 24.0	12.0 12.0 13.0	18.0 18.0 18.0	32.0 32.0 32.0	0.090 0.090 0.090

1/2" METRIC HEXAGON
A/F mm	MODEL NO.	D mm	d mm	TH mm	C mm	OAL mm	Wt. Kg.
8 9 10	IS-50 08M IS-50 09M IS-50 10M	16.0 16.0 18.0	25.0 25.0 25.0	6.0 7.0 8.0	15.0 15.0 15.0	32.0 32.0 32.0	0.080 0.080 0.090
11 12 13	IS-50 11M IS-50 12M IS-50 13M	20.0 20.0 23.0	25.0 25.0 25.0	9.0 9.0 10.0	15.0 17.0 17.0	32.0 34.0 34.0	0.090 0.080 0.080
14 15 16	IS-50 14M IS-50 15M IS-50 16M	23.0 25.0 27.0	25.0 30.0 30.0	10.0 11.0 11.0	17.0 19.0 19.0	34.0 36.0 36.0	0.080 0.140 0.130
17 18 19	IS-50 17M IS-50 18M IS-50 19M	27.0 30.0 30.0	30.0 30.0 30.0	12.0 13.0 13.0	19.0 19.0 19.0	36.0 36.0 36.0	0.130 0.130 0.130
21 22 23	IS-50 21M IS-50 22M IS-50 23M	32.0 32.0 36.0	30.0 30.0 30.0	14.0 14.0 14.0	21.0 21.0 23.0	38.0 38.0 41.0	0.170 0.180 0.210
24 25 26	IS-50 24M IS-50 25M IS-50 26M	36.0 40.0 40.0	30.0 30.0 35.0	14.0 14.0 16.0	23.0 23.0 23.0	41.0 41.0 41.0	0.230 0.230 0.270
27 28 30	IS-50 27M IS-50 28M IS-50 30M	40.0 41.0 43.0	35.0 35.0 35.0	16.0 16.0 17.0	23.0 25.0 28.0	41.0 42.0 45.0	0.270 0.260 0.290
32 36	IS-50 32M IS-50 36M	45.0 50.0	35.0 44.0	18.0 20.0	28.0 31.0	45.0 48.0	0.390 0.550

3/4" METRIC HEXAGON
A/F mm	MODEL NO.	D mm	d mm	TH mm	C mm	OAL mm	Wt. Kg.
17 19 21	IS-75 17M IS-75 19M IS-75 21M	32.0 33.0 36.0	44.0 44.0 44.0	12.0 12.0 13.0	20.0 20.0 23.0	45.0 45.0 48.0	0.370 0.370 0.380
22 23 24	IS-75 22M IS-75 23M IS-75 24M	37.0 41.0 41.0	44.0 44.0 44.0	13.0 13.0 16.0	23.0 23.0 23.0	48.0 48.0 48.0	0.380 0.380 0.400
26 27 28	IS-75 26M IS-75 27M IS-75 28M	41.0 43.0 45.0	44.0 44.0 44.0	16.0 16.0 16.0	23.0 23.0 23.0	48.0 48.0 48.0	0.400 0.400 0.410
30 32 33	IS-75 30M IS-75 32M IS-75 33M	47.0 50.0 50.0	44.0 44.0 44.0	18.0 19.0 19.0	27.0 27.0 30.0	52.0 52.0 55.0	0.425 0.460 0.480
34 36 38	IS-75 34M IS-75 36M IS-75 38M	52.0 54.0 57.0	44.0 44.0 44.0	20.0 20.0 20.0	30.0 31.0 34.0	55.0 56.0 59.0	0.500 0.575 0.600
41 42 43	IS-75 41M IS-75 42M IS-75 43M	61.0 64.0 64.0	44.0 44.0 44.0	22.0 22.0 22.0	34.0 34.0 39.0	59.0 59.0 64.0	0.625 0.625 0.625
46 50	IS-75 46M IS-75 50M	67.0 73.0	44.0 54.0	23.0 25.0	39.0 42.0	64.0 67.0	0.825 1.300

1" METRIC HEXAGON
A/F mm	MODEL NO.	D mm	d mm	TH mm	C mm	OAL mm	Wt. Kg.
19 20 21	IS-100 19M IS-100 20M IS-100 21M	36.0 36.0 39.0	54.0 54.0 54.0	14.0 14.0 14.0	26.0 26.0 26.0	56.0 56.0 56.0	0.59 0.65 0.65
22 23 24	IS-100 22M IS-100 23M IS-100 24M	40.0 40.0 43.0	54.0 54.0 54.0	14.0 14.0 16.0	26.0 26.0 26.0	56.0 56.0 56.0	0.65 0.65 0.65
25 26 27	IS-100 25M IS-100 26M IS-100 27M	43.0 46.0 46.0	54.0 54.0 54.0	16.0 16.0 16.0	26.0 26.0 26.0	56.0 56.0 56.0	0.65 0.67 0.70
28 29 30	IS-100 28M IS-100 29M IS-100 30M	48.0 50.0 50.0	54.0 54.0 54.0	16.0 16.0 21.0	26.0 28.0 28.0	56.0 58.0 58.0	0.70 0.70 0.70
31 32 33	IS-100 31M IS-100 32M IS-100 33M	50.0 52.0 54.0	54.0 54.0 54.0	21.0 21.0 21.0	28.0 28.0 28.0	58.0 58.0 58.0	0.70 0.70 0.70
34 35 36	IS-100 34M IS-100 35M IS-100 36M	54.0 57.0 57.0	54.0 54.0 54.0	21.0 21.0 25.0	31.0 31.0 31.0	61.0 61.0 61.0	0.72 0.72 0.77
37 38 39	IS-100 37M IS-100 38M IS-100 39M	57.0 60.0 60.0	54.0 54.0 54.0	25.0 25.0 25.0	31.0 35.0 35.0	61.0 65.0 65.0	0.77 0.87 0.90
40 41 42	IS-100 40M IS-100 41M IS-100 42M	62.0 64.0 64.0	54.0 54.0 54.0	25.0 28.0 28.0	35.0 35.0 35.0	65.0 65.0 65.0	0.95 0.95 0.95
43 44 45	IS-100 43M IS-100 44M IS-100 45M	64.0 70.0 70.0	54.0 54.0 54.0	28.0 28.0 28.0	40.0 40.0 40.0	70.0 70.0 70.0	1.05 1.20 1.20
46 47 48	IS-100 46M IS-100 47M IS-100 48M	70.0 72.0 72.0	54.0 54.0 54.0	28.0 28.0 28.0	40.0 40.0 43.0	70.0 70.0 73.0	1.20 1.20 1.20
49 50 51	IS-100 49M IS-100 50M IS-100 51M	75.0 75.0 75.0	54.0 54.0 54.0	28.0 28.0 28.0	43.0 43.0 43.0	73.0 73.0 73.0	1.50 1.55 1.50
52 54 55	IS-100 52M IS-100 54M IS-100 55M	75.0 81.0 81.0	54.0 54.0 54.0	28.0 28.0 30.0	43.0 47.0 47.0	73.0 77.0 77.0	1.75 1.85 2.20
56 57 58	IS-100 56M IS-100 57M IS-100 58M	84.0 84.0 87.0	54.0 54.0 54.0	30.0 30.0 30.0	47.0 47.0 51.0	77.0 77.0 81.0	2.25 2.15 2.35
59 60 62	IS-100 59M IS-100 60M IS-100 62M	87.0 87.0 90.0	54.0 54.0 54.0	32.0 32.0 32.0	53.0 53.0 56.0	83.0 83.0 86.0	2.40 2.40 2.75
65 70 75	IS-100 65M IS-100 70M IS-100 75M	93.0 99.0 106.0	54.0 54.0 86.0	38.0 40.0 42.0	56.0 63.0 66.0	86.0 93.0 96.0	3.13 3.70 4.50
80 85 90	IS-100 80M IS-100 85M IS-100 90M	112.0 119.0 125.0	86.0 86.0 86.0	44.0 47.0 50.0	68.0 68.0 75.0	98.0 98.0 105.0	4.95 5.25 6.20
95 100 105	IS-100 95M IS-100 100M IS-100 105M	131.0 135.0 144.0	86.0 86.0 127.0	54.0 54.0 57.0	77.0 83.0 83.0	107.0 113.0 113.0	6.30 6.50 6.60
110 115	IS-100 110M IS-100 115M	148.0 155.0	127.0 127.0	59.0 59.0	93.0 93.0	123.0 123.0	6.85 6.98

1.1/2" METRIC HEXAGON
A/F mm	MODEL NO.	D mm	d mm	TH mm	C mm	OAL mm	Wt. Kg.
32 33 34	IS-150 32M IS-150 33M IS-150 34M	56.0 56.0 61.0	86.0 86.0 86.0	22.0 22.0 22.0	34.0 34.0 34.0	76.0 76.0 76.0	2.30 2.30 2.30
35 36 37	IS-150 35M IS-150 36M IS-150 37M	61.0 64.0 64.0	86.0 86.0 86.0	22.0 25.0 25.0	34.0 39.0 39.0	76.0 81.0 81.0	2.30 2.35 2.35
38 39 40	IS-150 38M IS-150 39M IS-150 40M	66.0 66.0 69.0	86.0 86.0 86.0	25.0 25.0 25.0	39.0 39.0 39.0	81.0 81.0 81.0	2.35 2.40 2.40
41 42 43	IS-150 41M IS-150 42M IS-150 43M	69.0 72.0 72.0	86.0 86.0 86.0	25.0 25.0 25.0	39.0 39.0 39.0	81.0 81.0 81.0	2.40 2.40 2.40
44 45 46	IS-150 44M IS-150 45M IS-150 46M	72.0 72.0 76.0	86.0 86.0 86.0	25.0 25.0 27.0	39.0 39.0 41.0	81.0 81.0 83.0	2.50 2.50 2.50
47 48 49	IS-150 47M IS-150 48M IS-150 49M	76.0 76.0 79.0	86.0 86.0 86.0	27.0 27.0 27.0	41.0 41.0 41.0	83.0 83.0 83.0	2.60 2.60 2.60
50 51 52	IS-150 50M IS-150 51M IS-150 52M	81.0 81.0 84.0	86.0 86.0 86.0	27.0 27.0 27.0	41.0 41.0 41.0	83.0 83.0 83.0	2.60 2.60 2.60
54 55 56	IS-150 54M IS-150 55M IS-150 56M	84.0 87.0 87.0	86.0 86.0 86.0	27.0 30.0 30.0	47.0 47.0 47.0	90.0 90.0 90.0	2.70 2.70 2.70
57 58 59	IS-150 57M IS-150 58M IS-150 59M	87.0 91.0 91.0	86.0 86.0 86.0	30.0 30.0 30.0	50.0 50.0 50.0	93.0 93.0 93.0	2.80 2.80 2.80
60 61 62	IS-150 60M IS-150 61M IS-150 62M	94.0 94.0 97.0	86.0 86.0 86.0	32.0 32.0 32.0	50.0 54.0 54.0	93.0 97.0 97.0	2.80 3.00 3.00
65 67 70	IS-150 65M IS-150 67M IS-150 70M	99.0 105.0 105.0	86.0 86.0 86.0	37.0 37.0 40.0	54.0 59.0 59.0	97.0 102.0 102.0	3.00 3.20 3.40
73 75 76	IS-150 73M IS-150 75M IS-150 76M	108.0 110.0 110.0	86.0 86.0 86.0	40.0 40.0 40.0	64.0 64.0 69.0	106.0 106.0 106.0	3.85 3.85 4.20
80 85 86	IS-150 80M IS-150 85M IS-150 86M	118.0 125.0 125.0	86.0 86.0 86.0	45.0 48.0 48.0	69.0 75.0 75.0	111.0 117.0 117.0	4.90 5.80 5.90
90 95 100	IS-150 90M IS-150 95M IS-150 100M	130.0 136.0 143.0	86.0 127.0 127.0	51.0 54.0 54.0	77.0 77.0 84.0	119.0 119.0 126.0	7.40 8.10 8.70
105 110 115	IS-150 105M IS-150 110M IS-150 115M	149.0 155.0 161.0	127.0 127.0 127.0	57.0 63.0 70.0	84.0 94.0 94.0	126.0 138.0 138.0	9.75 11.60 11.60
120 125 130	IS-150 120M IS-150 125M IS-150 130M	168.0 174.0 180.0	127.0 127.0 127.0	75.0 75.0 82.0	104.0 104.0 117.0	146.0 146.0 159.0	12.60 14.50 17.50

2.1/2" METRIC HEXAGON
A/F mm	MODEL NO.	D mm	d mm	TH mm	C mm	OAL mm
43 44 45	IS-250 43M IS-250 44M IS-250 45M	104.0 104.0 104.0	127.0 127.0 127.0	25.0 25.0 25.0	60.0 60.0 60.0	118.0 118.0 118.0
46 47 48	IS-250 46M IS-250 47M IS-250 48M	104.0 104.0 104.0	127.0 127.0 127.0	28.0 28.0 28.0	60.0 60.0 60.0	118.0 118.0 118.0
49 50 51	IS-250 49M IS-250 50M IS-250 51M	104.0 104.0 104.0	127.0 127.0 127.0	30.0 30.0 30.0	60.0 60.0 60.0	118.0 118.0 118.0
52 54 55	IS-250 52M IS-250 54M IS-250 55M	104.0 104.0 104.0	127.0 127.0 127.0	30.0 30.0 33.0	60.0 60.0 60.0	118.0 118.0 118.0
56 57 58	IS-250 56M IS-250 57M IS-250 58M	104.0 104.0 104.0	127.0 127.0 127.0	33.0 33.0 33.0	60.0 60.0 60.0	118.0 118.0 118.0
59 60 62	IS-250 59M IS-250 60M IS-250 62M	104.0 104.0 104.0	127.0 127.0 127.0	33.0 36.0 36.0	60.0 60.0 60.0	118.0 118.0 118.0
65 67 70	IS-250 65M IS-250 67M IS-250 70M	104.0 104.0 104.0	127.0 127.0 127.0	39.0 39.0 43.0	60.0 60.0 60.0	118.0 118.0 118.0
73 75 76	IS-250 73M IS-250 75M IS-250 75M	118.0 118.0 118.0	127.0 127.0 127.0	43.0 43.0 43.0	70.0 70.0 70.0	128.0 128.0 128.0
80 85 86	IS-250 80M IS-250 85M IS-250 86M	127.0 133.0 133.0	127.0 127.0 127.0	48.0 48.0 48.0	70.0 75.0 75.0	128.0 133.0 133.0
90 95 100	IS-250 90M IS-250 95M IS-250 100M	136.0 143.0 150.0	127.0 127.0 127.0	52.0 55.0 58.0	77.0 77.0 86.0	135.0 135.0 144.0
105 110 115	IS-250 105M IS-250 110M IS-250 115M	157.0 160.0 168.0	127.0 127.0 127.0	62.0 64.0 68.0	86.0 95.0 103.0	144.0 153.0 161.0
120 125 130	IS-250 120M IS-250 125M IS-250 130M	175.0 186.0 186.0	127.0 127.0 127.0	72.0 72.0 78.0	103.0 103.0 119.0	161.0 161.0 177.0
135 140 145	IS-250 135M IS-250 140M IS-250 145M	193.0 200.0 205.0	127.0 127.0 152.0	80.0 86.0 86.0	119.0 122.0 127.0	177.0 180.0 185.0
150 155 160	IS-250 150M IS-250 155M IS-250 160M	214.0 218.0 225.0	152.0 152.0 152.0	90.0 92.0 95.0	135.0 135.0 139.0	193.0 193.0 197.0
165 170 175	IS-250 165M IS-250 170M IS-250 175M	232.0 237.0 243.0	175.0 175.0 175.0	98.0 98.0 103.0	146.0 146.0 153.0	204.0 204.0 211.0
180 185 190	IS-250 180M IS-250 185M IS-250 190M	250.0 255.0 265.0	175.0 175.0 175.0	110.0 110.0 113.0	159.0 159.0 163.0	217.0 217.0 221.0
195 200 210	IS-250 195M IS-250 200M IS-250 210M	270.0 275.0 285.0	175.0 175.0 175.0	113.0 118.0 121.0	167.0 171.0 177.0	225.0 229.0 235.0
215 225	IS-250 215M IS-250 225M	295.0 305.0	175.0 175.0	125.0 132.0	184.0 203.0	242.0 261.0

3.1/2" METRIC HEXAGON
A/F mm	MODEL NO.	D mm	d mm	TH mm	C mm	OAL mm
100 105 110 115	IS-350 100M IS-350 105M IS-350 110M IS-350 115M	180.0 180.0 180.0 180.0	175.0 175.0 175.0 175.0	58.0 62.0 64.0 68.0	95.0 95.0 102.0 102.0	165.0 165.0 174.0 174.0
120 130 135	IS-350 120M IS-350 130M IS-350 135M	180.0 193.0 197.0	175.0 175.0 175.0	72.0 80.0 83.0	102.0 110.0 118.0	182.0 190.0 198.0
145 150 155	IS-350 145M IS-350 150M IS-350 155M	213.0 218.0 225.0	175.0 175.0 175.0	86.0 90.0 92.0	134.0 134.0 134.0	214.0 214.0 214.0
165 170 175	IS-350 165M IS-350 170M IS-350 175M	237.0 243.0 249.0	175.0 175.0 175.0	98.0 100.0 102.0	151.0 151.0 151.0	231.0 231.0 231.0
180 195 200	IS-350 180M IS-350 195M IS-350 200M	255.0 275.0 280.0	175.0 175.0 175.0	108.0 118.0 120.0	157.0 165.0 170.0	237.0 245.0 250.0
215 230 235	IS-350 215M IS-350 230M IS-350 235M	298.0 317.0 325.0	175.0 175.0 175.0	125.0 132.0 136.0	183.0 199.0 199.0	263.0 279.0 279.0

Metric Deep Hexagon

3/8" METRIC DEEP HEXAGON
A/F mm	MODEL NO.	D mm	d mm	TH mm	C mm	OAL mm	Wt. Kg.
8 9 10	ISD-38 08M ISD-38 09M ISD-38 10M	14.0 15.0 16.0	19.0 19.0 19.0	6.0 7.0 7.0	40.0 40.0 40.0	54.0 54.0 54.0	0.070 0.070 0.070
11 12 13	ISD-38 11M ISD-38 12M ISD-38 13M	18.0 19.0 22.0	19.0 19.0 22.0	8.0 9.0 10.0	40.0 40.0 40.0	54.0 54.0 54.0	0.080 0.090 0.100
14 15	ISD-38 14M ISD-38 15M	22.0 24.0	22.0 22.0	10.0 11.0	46.0 46.0	60.0 60.0	0.115 0.120
17 19	ISD-38 17M ISD-38 19M	26.0 28.0	22.0 22.0	12.0 12.0	52.0 52.0	66.0 66.0	0.130 0.165

1/2" METRIC DEEP HEXAGON
A/F mm	MODEL NO.	D mm	d mm	TH mm	C mm	OAL mm	Wt. Kg.
8 9 10	ISD-50 08M ISD-50 09M ISD-50 10M	16.0 16.0 18.0	25.0 25.0 25.0	6.0 7.0 8.0	68.0 68.0 68.0	85.0 85.0 85.0	0.155 0.155 0.155
11 12 13	ISD-50 11M ISD-50 12M ISD-50 13M	20.0 20.0 23.0	25.0 25.0 25.0	9.0 9.0 10.0	68.0 68.0 68.0	85.0 85.0 85.0	0.175 0.175 0.200
14 15 16	ISD-50 14M ISD-50 15M ISD-50 16M	23.0 25.0 27.0	25.0 30.0 30.0	10.0 11.0 11.0	68.0 68.0 68.0	85.0 85.0 85.0	0.225 0.300 0.305
17 18 19	ISD-50 17M ISD-50 18M ISD-50 19M	27.0 30.0 30.0	30.0 30.0 30.0	12.0 13.0 13.0	68.0 68.0 68.0	85.0 85.0 85.0	0.335 0.350 0.338
21 22 23	ISD-50 21M ISD-50 22M ISD-50 23M	32.0 32.0 36.0	30.0 30.0 30.0	14.0 14.0 14.0	68.0 68.0 68.0	85.0 85.0 85.0	0.350 0.415 0.405
24 25 26	ISD-50 24M ISD-50 25M ISD-50 26M	36.0 40.0 40.0	30.0 30.0 35.0	14.0 14.0 16.0	68.0 68.0 68.0	85.0 85.0 85.0	0.400 0.480 0.490
27 28 30	ISD-50 27M ISD-50 28M ISD-50 30M	40.0 41.0 43.0	35.0 35.0 35.0	16.0 16.0 17.0	68.0 68.0 68.0	85.0 85.0 85.0	0.750 0.600 0.775
32 36	ISD-50 32M ISD-50 36M	45.0 50.0	35.0 44.0	18.0 20.0	68.0 68.0	85.0 85.0	0.775 0.800

3/4" METRIC DEEP HEXAGON
A/F mm	MODEL NO.	D mm	d mm	TH mm	C mm	OAL mm	Wt. Kg.
17 19 21	ISD-75 17M ISD-75 19M ISD-75 21M	32.0 33.0 36.0	44.0 44.0 44.0	12.0 12.0 13.0	50.0 50.0 50.0	75.0 75.0 75.0	0.600 0.600 0.630
22 23 24	ISD-75 22M ISD-75 23M ISD-75 24M	37.0 41.0 41.0	44.0 44.0 44.0	13.0 13.0 16.0	65.0 65.0 65.0	90.0 90.0 90.0	0.680 0.680 0.710
26 27 28	ISD-75 26M ISD-75 27M ISD-75 28M	41.0 43.0 45.0	44.0 44.0 44.0	16.0 16.0 18.0	65.0 65.0 65.0	90.0 90.0 90.0	0.710 0.710 0.710
30 32 33	ISD-75 30M ISD-75 32M ISD-75 33M	47.0 50.0 50.0	44.0 44.0 44.0	18.0 19.0 19.0	65.0 65.0 65.0	90.0 90.0 90.0	0.750 0.810 0.810
34 36 38	ISD-75 34M ISD-75 36M ISD-75 38M	52.0 54.0 57.0	44.0 44.0 44.0	20.0 20.0 20.0	65.0 65.0 65.0	90.0 90.0 90.0	0.800 0.875 0.900
41 42 43	ISD-75 41M ISD-75 42M ISD-75 43M	61.0 64.0 64.0	44.0 44.0 44.0	22.0 22.0 22.0	65.0 70.0 70.0	90.0 95.0 95.0	0.925 1.100 1.100
46 50	ISD-75 46M ISD-75 50M	67.0 73.0	44.0 54.0	23.0 25.0	75.0 75.0	100.0 100.0	1.325 1.600

1" METRIC DEEP HEXAGON
A/F mm	MODEL NO.	D mm	d mm	TH mm	C mm	OAL mm	Wt. Kg.
19 20 21	ISD-100 19M ISD-100 20M ISD-100 21M	36.0 36.0 39.0	54.0 54.0 54.0	14.0 14.0 14.0	80.0 80.0 80.0	110.0 110.0 110.0	1.00 1.00 1.00
22 23 24	ISD-100 22M ISD-100 23M ISD-100 24M	40.0 40.0 43.0	54.0 54.0 54.0	14.0 14.0 16.0	80.0 80.0 80.0	110.0 110.0 110.0	1.10 1.10 1.10
25 26 27	ISD-100 25M ISD-100 26M ISD-100 27M	43.0 46.0 46.0	54.0 54.0 54.0	16.0 16.0 16.0	80.0 80.0 80.0	110.0 110.0 110.0	1.15 1.15 1.20
28 29 30	ISD-100 28M ISD-100 29M ISD-100 30M	48.0 50.0 50.0	54.0 54.0 54.0	16.0 16.0 21.0	80.0 80.0 80.0	110.0 110.0 110.0	1.20 1.20 1.27
31 32 33	ISD-100 31M ISD-100 32M ISD-100 33M	50.0 52.0 54.0	54.0 54.0 54.0	21.0 21.0 21.0	80.0 80.0 80.0	110.0 110.0 110.0	1.27 1.30 1.37
34 35 36	ISD-100 34M ISD-100 35M ISD-100 36M	54.0 57.0 57.0	54.0 54.0 54.0	21.0 21.0 25.0	80.0 80.0 80.0	110.0 110.0 110.0	1.35 1.35 1.35
37 38 39	ISD-100 37M ISD-100 38M ISD-100 39M	57.0 60.0 60.0	54.0 54.0 54.0	25.0 25.0 25.0	80.0 80.0 80.0	110.0 110.0 110.0	1.50 1.55 1.65
40 41 42	ISD-100 40M ISD-100 41M ISD-100 42M	62.0 64.0 64.0	54.0 54.0 54.0	25.0 28.0 28.0	80.0 80.0 80.0	110.0 110.0 110.0	1.65 1.65 1.70
43 44 45	ISD-100 43M ISD-100 44M ISD-100 45M	64.0 70.0 70.0	54.0 54.0 54.0	28.0 28.0 28.0	80.0 80.0 80.0	110.0 110.0 110.0	1.75 1.75 1.75
46 47 48	ISD-100 46M ISD-100 47M ISD-100 48M	70.0 72.0 72.0	54.0 54.0 54.0	28.0 28.0 28.0	80.0 80.0 80.0	110.0 110.0 110.0	2.20 2.20 2.20
49 50 51	ISD-100 49M ISD-100 50M ISD-100 51M	75.0 75.0 75.0	54.0 54.0 54.0	28.0 28.0 28.0	80.0 80.0 80.0	110.0 110.0 110.0	2.35 2.35 2.35
52 54 55	ISD-100 52M ISD-100 54M ISD-100 55M	75.0 81.0 81.0	54.0 54.0 54.0	28.0 28.0 30.0	80.0 80.0 80.0	110.0 110.0 110.0	2.50 2.70 2.85
56 57 58	ISD-100 56M ISD-100 57M ISD-100 58M	84.0 84.0 87.0	54.0 54.0 54.0	30.0 30.0 30.0	80.0 80.0 80.0	110.0 110.0 110.0	2.85 2.85 2.85
59 60 62	ISD-100 59M ISD-100 60M ISD-100 62M	87.0 87.0 90.0	54.0 54.0 54.0	32.0 32.0 32.0	100.0 100.0 100.0	130.0 130.0 130.0	3.55 3.55 4.00
65 70 75	ISD-100 65M ISD-100 70M ISD-100 75M	93.0 99.0 106.0	54.0 54.0 86.0	38.0 40.0 42.0	100.0 100.0 100.0	130.0 130.0 130.0	4.55 4.85 5.00
80 85 90	ISD-100 80M ISD-100 85M ISD-100 90M	112.0 119.0 125.0	86.0 86.0 86.0	44.0 47.0 50.0	110.0 110.0 110.0	140.0 140.0 140.0	6.60 6.70 6.70
95 100 105	ISD-100 95M ISD-100 100M ISD-100 105M	131.0 135.0 144.0	86.0 86.0 127.0	54.0 54.0 57.0	110.0 115.0 115.0	140.0 145.0 145.0	6.85 7.50 7.70
110 115	ISD-100 110M ISD-100 115M	148.0 155.0	127.0 127.0	59.0 59.0	120.0 120.0	150.0 150.0	8.25 8.25

1.1/2" METRIC DEEP HEXAGON
A/F mm	MODEL NO.	D mm	d mm	TH mm	C mm	OAL mm	Wt. Kg.
32 33 34	ISD-150 32M ISD-150 33M ISD-150 34M	56.0 56.0 61.0	86.0 86.0 86.0	22.0 22.0 22.0	83.0 83.0 83.0	125.0 125.0 125.0	3.10 3.10 3.10
35 36 37	ISD-150 35M ISD-150 36M ISD-150 37M	61.0 64.0 64.0	86.0 86.0 86.0	22.0 25.0 25.0	83.0 83.0 83.0	125.0 125.0 125.0	3.15 3.15 3.15
38 39 40	ISD-150 38M ISD-150 39M ISD-150 40M	66.0 66.0 69.0	86.0 86.0 86.0	25.0 25.0 25.0	83.0 83.0 83.0	125.0 125.0 125.0	3.50 3.50 3.50
41 42 43	ISD-150 41M ISD-150 42M ISD-150 43M	69.0 72.0 72.0	86.0 86.0 86.0	25.0 25.0 25.0	83.0 83.0 83.0	125.0 125.0 125.0	3.75 3.75 3.75
44 45 46	ISD-150 44M ISD-150 45M ISD-150 46M	72.0 72.0 76.0	86.0 86.0 86.0	25.0 25.0 27.0	83.0 83.0 83.0	125.0 125.0 125.0	3.95 3.95 4.00
47 48 49	ISD-150 47M ISD-150 48M ISD-150 49M	76.0 76.0 79.0	86.0 86.0 86.0	27.0 27.0 27.0	88.0 88.0 88.0	130.0 130.0 130.0	3.95 4.05 4.05
50 51 52	ISD-150 50M ISD-150 51M ISD-150 52M	81.0 81.0 84.0	86.0 86.0 86.0	27.0 27.0 27.0	88.0 88.0 88.0	130.0 130.0 130.0	4.05 4.05 4.05
54 55 56	ISD-150 54M ISD-150 55M ISD-150 56M	84.0 87.0 87.0	86.0 86.0 86.0	27.0 30.0 30.0	88.0 88.0 88.0	130.0 130.0 130.0	4.70 4.70 4.70
57 58 59	ISD-150 57M ISD-150 58M ISD-150 59M	87.0 91.0 91.0	86.0 86.0 86.0	30.0 30.0 30.0	88.0 88.0 88.0	130.0 130.0 130.0	4.70 4.70 4.70
60 61 62	ISD-150 60M ISD-150 61M ISD-150 62M	94.0 94.0 97.0	86.0 86.0 86.0	32.0 32.0 32.0	108.0 108.0 108.0	150.0 150.0 150.0	5.00 5.25 5.25
65 67 70	ISD-150 65M ISD-150 67M ISD-150 70M	99.0 105.0 105.0	86.0 86.0 86.0	37.0 37.0 40.0	108.0 108.0 118.0	150.0 150.0 160.0	5.70 5.70 6.20
73 75 76	ISD-150 73M ISD-150 75M ISD-150 76M	108.0 110.0 110.0	86.0 86.0 86.0	40.0 40.0 40.0	118.0 118.0 118.0	160.0 160.0 160.0	7.12 7.95 8.25
80 85 86	ISD-150 80M ISD-150 85M ISD-150 86M	118.0 125.0 125.0	86.0 125.0 125.0	45.0 48.0 48.0	133.0 133.0 133.0	175.0 175.0 175.0	9.35 9.65 9.85
90 95 100	ISD-150 90M ISD-150 95M ISD-150 100M	130.0 136.0 143.0	125.0 125.0 125.0	51.0 54.0 54.0	133.0 138.0 143.0	175.0 180.0 185.0	9.40 10.10 10.70
105 110 115	ISD-150 105M ISD-150 110M ISD-150 115M	149.0 155.0 161.0	125.0 125.0 125.0	57.0 63.0 70.0	153.0 153.0 153.0	195.0 195.0 195.0	11.75 13.60 14.60
120 125 130	ISD-150 120M ISD-150 125M ISD-150 130M	168.0 174.0 180.0	125.0 125.0 125.0	75.0 75.0 82.0	158.0 158.0 158.0	200.0 200.0 200.0	15.60 16.50 19.50

2.1/2" METRIC DEEP HEXAGON
A/F mm	MODEL NO.	D mm	d mm	TH mm	C mm	OAL mm
43 44 45	ISD-250 43M ISD-250 44M ISD-250 45M	104.0 104.0 104.0	127.0 127.0 127.0	25.0 25.0 25.0	132.0 132.0 132.0	192.0 192.0 192.0
46 47 48	ISD-250 46M ISD-250 47M ISD-250 48M	104.0 104.0 104.0	127.0 127.0 127.0	28.0 28.0 28.0	132.0 132.0 132.0	192.0 192.0 192.0
49 50 51	ISD-250 49M ISD-250 50M ISD-250 51M	104.0 104.0 104.0	127.0 127.0 127.0	30.0 30.0 30.0	132.0 132.0 132.0	192.0 192.0 192.0
52 54 55	ISD-250 52M ISD-250 54M ISD-250 55M	104.0 104.0 104.0	127.0 127.0 127.0	30.0 30.0 33.0	132.0 132.0 132.0	192.0 192.0 192.0
56 57 58	ISD-250 56M ISD-250 57M ISD-250 58M	104.0 104.0 104.0	127.0 127.0 127.0	33.0 33.0 33.0	132.0 132.0 132.0	192.0 192.0 192.0
59 60 62	ISD-250 59M ISD-250 60M ISD-250 62M	104.0 104.0 104.0	127.0 127.0 127.0	33.0 36.0 36.0	132.0 132.0 132.0	192.0 192.0 192.0
65 67 70	ISD-250 65M ISD-250 67M ISD-250 70M	104.0 104.0 104.0	127.0 127.0 127.0	39.0 39.0 43.0	132.0 132.0 132.0	192.0 192.0 192.0
73 75 76	ISD-250 73M ISD-250 75M ISD-250 76M	118.0 118.0 118.0	127.0 127.0 127.0	43.0 43.0 43.0	132.0 132.0 132.0	192.0 192.0 192.0
80 85 86	>ISD-250 80M ISD-250 85M ISD-250 86M	127.0 133.0 133.0	127.0 127.0 127.0	48.0 48.0 48.0	132.0 132.0 132.0	192.0 192.0 192.0
90 95 100	ISD-250 90M ISD-250 95M ISD-250 100M	136.0 143.0 150.0	127.0 127.0 127.0	52.0 55.0 58.0	132.0 132.0 138.0	192.0 192.0 198.0
105 110 115	ISD-250 105M ISD-250 110M ISD-250 115M	157.0 160.0 168.0	127.0 127.0 127.0	62.0 64.0 68.0	138.0 147.0 147.0	198.0 207.0 207.0
120 125 130	ISD-250 120M ISD-250 125M ISD-250 130M	175.0 186.0 186.0	127.0 127.0 127.0	72.0 72.0 78.0	155.0 155.0 163.0	215.0 215.0 215.0
135 140 145	ISD-250 135M ISD-250 140M ISD-250 145M	193.0 200.0 205.0	127.0 127.0 152.0	80.0 86.0 86.0	171.0 174.0 180.0	231.0 234.0 240.0
150 155 160	ISD-250 150M ISD-250 155M ISD-250 160M	214.0 218.0 225.0	152.0 152.0 152.0	90.0 92.0 95.0	188.0 188.0 192.0	248.0 248.0 252.0
165 170 175	ISD-250 165M ISD-250 170M ISD-250 175M	232.0 237.0 243.0	175.0 175.0 175.0	98.0 98.0 103.0	200.0 200.0 216.0	260.0 260.0 264.0
180 185 190	ISD-250 180M ISD-250 185M ISD-250 190M	250.0 255.0 265.0	175.0 175.0 175.0	110.0 110.0 113.0	212.0 212.0 216.0	272.0 272.0 276.0
195 200 210	ISD-250 195M ISD-250 200M ISD-250 210M	270.0 275.0 285.0	175.0 175.0 175.0	113.0 118.0 121.0	220.0 224.0 230.0	280.0 284.0 290.0
215 225	ISD-250 215M ISD-250 225M	295.0 305.0	175.0 175.0	125.0 132.0	256.0 256.0	316.0 316.0

Metric Bi Hexagon

3/8" METRIC BIHEXAGON
A/F mm	MODEL NO.	D mm	d mm	TH mm	C mm	OAL mm	Wt. Kg.
8 9 10	IS-38 08M DH IS-38 09M DH IS-38 10M DH	14.0 15.0 16.0	19.0 19.0 19.0	6.0 7.0 7.0	13.0 13.0 13.0	27.0 27.0 27.0	0.025 0.025 0.030
11 12 13	IS-38 11M DH IS-38 12M DH IS-38 13M DH	18.0 19.0 22.0	19.0 19.0 22.0	8.0 9.0 10.0	13.0 13.0 16.0	27.0 27.0 30.0	0.030 0.040 0.040
14 15 16	IS-38 14M DH IS-38 15M DH IS-38 16M DH	22.0 24.0 24.0	22.0 22.0 22.0	10.0 11.0 11.0	16.0 16.0 16.0	30.0 30.0 30.0	0.050 0.055 0.060
17 18 19	IS-38 17M DH IS-38 18M DH IS-38 19M DH	26.0 28.0 28.0	22.0 22.0 22.0	12.0 12.0 12.0	18.0 18.0 18.0	32.0 32.0 32.0	0.060 0.065 0.070
20 21 22	IS-38 20M DH IS-38 21M DH IS-38 22M DH	30.0 30.0 32.0	24.0 24.0 24.0	12.0 12.0 13.0	18.0 18.0 18.0	32.0 32.0 32.0	0.090 0.090 0.090

1/2" METRIC BIHEXAGON
A/F mm	MODEL NO.	D mm	d mm	TH mm	C mm	OAL mm	Wt. Kg.
8 9 10	IS-50 08M DH IS-50 09M DH IS-50 10M DH	16.0 16.0 18.0	25.0 25.0 25.0	6.0 7.0 8.0	15.0 15.0 15.0	32.0 32.0 32.0	0.080 0.080 0.090
11 12 13	IS-50 11M DH IS-50 12M DH IS-50 13M DH	20.0 20.0 23.0	25.0 25.0 25.0	9.0 9.0 10.0	15.0 17.0 17.0	32.0 34.0 34.0	0.090 0.080 0.080
14 15 16	IS-50 14M DH IS-50 15M DH IS-50 16M DH	23.0 25.0 27.0	25.0 30.0 30.0	10.0 11.0 11.0	17.0 19.0 19.0	34.0 36.0 36.0	0.080 0.140 0.130
17 18 19	IS-50 17M DH IS-50 18M DH IS-50 19M DH	27.0 30.0 30.0	30.0 30.0 30.0	12.0 13.0 13.0	19.0 19.0 19.0	36.0 36.0 36.0	0.130 0.130 0.130
21 22 23	IS-50 21M DH IS-50 22M DH IS-50 23M DH	32.0 32.0 32.0	30.0 30.0 30.0	14.0 14.0 14.0	21.0 21.0 23.0	38.0 38.0 41.0	0.170 0.180 0.210
24 25 26	IS-50 24M DH IS-50 25M DH IS-50 26M DH	36.0 40.0 40.0	30.0 30.0 35.0	14.0 14.0 16.0	23.0 23.0 23.0	41.0 41.0 41.0	0.230 0.230 0.270
27 28 30	IS-50 27M DH IS-50 28M DH IS-50 30M DH	40.0 41.0 43.0	35.0 35.0 35.0	16.0 16.0 17.0	23.0 25.0 28.0	41.0 42.0 45.0	0.270 0.260 0.290
32 36	IS-50 32M DH IS-50 36M DH	45.0 50.0	35.0 44.0	18.0 20.0	28.0 31.0	45.0 48.0	0.390 0.490

3/4" METRIC BIHEXAGON
A/F mm	MODEL NO.	D mm	d mm	TH mm	C mm	OAL mm	Wt. Kg.
17 19 21	IS-75 17M DH IS-75 19M DH IS-75 21M DH	32.0 33.0 36.0	44.0 44.0 44.0	12.0 12.0 13.0	20.0 20.0 23.0	45.0 45.0 48.0	0.370 0.370 0.380
22 23 24	IS-75 22M DH IS-75 23M DH IS-75 24M DH	37.0 41.0 41.0	44.0 44.0 44.0	13.0 13.0 16.0	23.0 23.0 23.0	48.0 48.0 48.0	0.380 0.390 0.400
26 27 28	IS-75 26M DH IS-75 27M DH IS-75 28M DH	41.0 43.0 45.0	44.0 44.0 44.0	16.0 16.0 18.0	23.0 23.0 23.0	48.0 48.0 48.0	0.400 0.400 0.410
30 32 33	IS-75 30M DH IS-75 32M DH IS-75 33M DH	47.0 50.0 50.0	44.0 44.0 44.0	18.0 19.0 19.0	27.0 27.0 30.0	52.0 52.0 55.0	0.425 0.460 0.480
34 36 38	IS-75 34M DH IS-75 36M DH IS-75 38M DH	52.0 54.0 57.0	44.0 44.0 44.0	20.0 20.0 20.0	30.0 31.0 34.0	55.0 56.0 59.0	0.500 0.575 0.600
41 42 43	IS-75 41M DH IS-75 42M DH IS-75 43M DH	61.0 64.0 64.0	44.0 44.0 44.0	22.0 22.0 22.0	34.0 34.0 39.0	59.0 59.0 64.0	0.625 0.625 0.625
46 50	IS-75 46M DH IS-75 50M DH	67.0 73.0	54.0 54.0	23.0 25.0	39.0 42.0	64.0 67.0	0.825 1.300
55 60	IS-75 55M DH IS-75 60M DH	78.0 84.0	54.0 54.0	28.0 30.0	46.0 50.0	71.0 75.0	1.850 2.050

1" METRIC BIHEXAGON
A/F mm	MODEL NO.	D mm	d mm	TH mm	C mm	OAL mm	Wt. Kg.
19 20 21	IS-100 19M DH IS-100 20M DH IS-100 21M DH	36 36 39	54.0 54.0 54.0	14.0 14.0 14.0	26.0 26.0 26.0	56.0 56.0 56.0	0.59 0.65 0.65
22 23 24	IS-100 22M DH IS-100 23M DH IS-100 24M DH	40.0 40.0 43.0	53.0 53.0 53.0	14.0 14.0 16.0	26.0 26.0 26.0	56.0 56.0 56.0	0.65 0.65 0.65
25 26 27	IS-100 25M DH IS-100 26M DH IS-100 27M DH	43.0 46.0 46.0	54.0 54.0 54.0	16.0 16.0 16.0	26.0 26.0 26.0	56.0 56.0 56.0	0.65 0.65 0.70
28 29 30	IS-100 28M DH IS-100 29M DH IS-100 30M DH	48.0 50.0 50.0	54.0 54.0 54.0	16.0 16.0 21.0	26.0 28.0 28.0	56.0 58.0 58.0	0.70 0.70 0.70
31 32 33	IS-100 31M DH IS-100 32M DH IS-100 33M DH	50.0 52.0 54.0	54.0 54.0 54.0	21.0 21.0 21.0	28.0 28.0 28.0	58.0 58.0 58.0	0.70 0.70 0.70
34 35 36	IS-100 34M DH IS-100 35M DH IS-100 36M DH	54.0 57.0 57.0	54.0 54.0 54.0	21.0 21.0 25.0	31.0 31.0 31.0	61.0 61.0 61.0	0.72 0.72 0.77
37 38 39	IS-100 37M DH IS-100 38M DH IS-100 39M DH	57.0 60.0 60.0	54.0 54.0 54.0	25.0 25.0 25.0	31.0 35.0 35.0	61.0 65.0 65.0	0.77 0.87 0.90
40 41 42	IS-100 40M DH IS-100 41M DH IS-100 42M DH	62.0 64.0 64.0	54.0 54.0 54.0	25.0 28.0 28.0	35.0 35.0 35.0	65.0 65.0 65.0	0.95 0.95 0.95
43 44 45	IS-100 43M DH IS-100 44M DH IS-100 45M DH	64.0 70.0 70.0	54.0 54.0 54.0	28.0 28.0 28.0	40.0 40.0 40.0	70.0 70.0 70.0	1.05 1.20 1.20
46 47 48	IS-100 46M DH IS-100 47M DH IS-100 48M DH	70.0 72.0 72.0	54.0 54.0 54.0	28.0 28.0 28.0	40.0 40.0 43.0	70.0 70.0 72.0	1.20 1.20 1.20
49 50 51	IS-100 49M DH IS-100 50M DH IS-100 51M DH	75.0 75.0 75.0	54.0 54.0 54.0	28.0 28.0 28.0	43.0 43.0 43.0	73.0 73.0 73.0	1.50 1.50 1.50
52 54 55	IS-100 52M DH IS-100 54M DH IS-100 55M DH	75.0 81.0 81.0	54.0 54.0 54.0	28.0 28.0 30.0	43.0 47.0 47.0	73.0 77.0 77.0	1.75 1.85 2.20
56 57 58	IS-100 56M DH IS-100 57M DH IS-100 58M DH	84.0 84.0 87.0	54.0 54.0 54.0	30.0 30.0 30.0	47.0 47.0 51.0	77.0 77.0 81.0	2.25 2.15 2.35
59 60 62	IS-100 59M DH IS-100 60M DH IS-100 62M DH	87.0 87.0 90.0	54.0 54.0 54.0	30.0 32.0 32.0	53.0 53.0 56.0	83.0 83.0 83.0	2.40 2.40 2.75
65 70 75	IS-100 65M DH IS-100 70M DH IS-100 75M DH	93.0 99.0 106.0	54.0 54.0 86.0	38.0 40.0 42.0	56.0 63.0 66.0	86.0 93.0 96.0	3.13 3.70 4.50
80 85	IS-100 80M DH IS-100 85M DH	112.0 119.0	86.0 86.0	44.0 47.0	68.0 68.0	98.0 98.0	4.95 5.25
90 95	IS-100 90M DH IS-100 95M DH	125.0 131.0	86.0 86.0	50.0 54.0	75.0 77.0	105.0 107.0	6.20 6.30

Fractional Hexagon

3/8" FRACTIONAL HEXAGON
A/F inch	MODEL NO.	D inch	d inch	TH inch	C inch	OAL inch	Wt. lbs.
5/16 3/8 7/16	IS-38 05F IS-38 06F IS-38 07F	0.551 0.629 0.708	0.748 0.748 0.748	0.236 0.275 0.314	0.511 0.511 0.511	1.062 1.062 1.062	0.055 0.055 0.075
1/2 9/16 5/8	IS-38 08F IS-38 09F IS-38 010F	0.866 0.866 0.944	0.866 0.866 0.866	0.354 0.393 0.433	0.630 0.630 0.630	1.181 1.181 1.181	0.088 0.110 0.120
11/16 3/4	IS-38 011F IS-38 012F	1.023 1.023	0.866 0.866	0.472 0.472	0.708 0.708	1.259 1.259	1.135 1.155
13/16 7/8	IS-38 013F IS-38 014F	1.181 1.259	0.944 0.944	0.472 0.511	0.708 0.708	1.259 1.259	0.200 0.220

1/2" FRACTIONAL HEXAGON
A/F inch	MODEL NO.	D inch	d inch	TH inch	C inch	OAL inch	Wt. lbs.
3/8 7/16 1/2	IS-50 06F IS-50 07F IS-50 08F	0.708 0.787 0.905	0.984 0.984 0.984	0.275 0.354 0.354	0.590 0.590 0.699	1.259 1.259 1.338	0.175 0.175 0.175
9/16 5/8 11/16	IS-50 09F IS-50 10F IS-50 11F	0.905 1.062 1.181	0.984 1.181 1.181	0.393 0.433 0.472	0.699 0.748 0.748	1.338 1.417 1.417	0.185 0.285 0.305
3/4 13/16 7/8	IS-50 12F IS-50 13F IS-50 14F	1.181 1.259 1.259	1.181 1.181 1.181	0.511 0.551 0.551	0.748 0.826 0.826	1.417 1.417 1.417	0.305 0.395 0.375
15/16 1 1.1/16	IS-50 15F IS-50 16F IS-50 17F	1.417 1.574 1.574	1.181 1.181 1.377	0.551 0.629 0.629	0.905 0.905 0.905	1.614 1.614 1.614	0.450 0.505 0.625
1.1/8 1.3/16 1.1/4	IS-50 18F IS-50 19F IS-50 20F	1.614 1.692 1.771	1.377 1.377 1.377	0.629 0.669 0.669	0.984 1.102 1.102	1.653 1.771 1.771	0.725 0.770 0.880
1.5/16 1.3/8	IS-50 21F IS-50 22F	1.850 1.968	1.377 1.377	0.708 0.787	1.102 1.220	1.771 1.889	0.945 1.080
1.7/16 1.1/2	IS-50 23F IS-50 24F	1.968 2.086	1.732 1.732	0.866 0.866	1.220 1.338	1.889 2.007	1.210 1.255

3/4" FRACTIONAL HEXAGON
A/F inch	MODEL NO.	D inch	d inch	TH inch	C inch	OAL inch	Wt. lbs.
9/16 5/8 11/16	IS-75 09F IS-75 10F IS-75 11F	1.023 1.181 1.259	1.732 1.732 1.732	0.472 0.472 0.472	0.771 0.771 0.771	1.771 1.771 1.771	0.485 0.795 0.835
3/4 13/16 7/8	IS-75 12F IS-75 13F IS-75 14F	1.299 1.417 1.456	1.732 1.732 1.732	0.472 0.511 0.511	0.771 0.889 0.889	1.771 1.889 1.889	0.835 0.880 0.880
15/16 1 1.1/16	IS-75 15F IS-75 16F IS-75 17F	1.614 1.614 1.629	1.732 1.732 1.732	0.629 0.629 0.629	0.889 0.889 0.889	1.889 1.889 1.889	0.880 0.880 0.880
1.1/8 1.3/16 1.1/4	IS-75 18F IS-75 19F IS-75 20F	1.771 1.850 1.968	1.732 1.732 1.732	0.708 0.708 0.748	0.889 1.047 1.047	1.889 2.047 2.047	0.915 0.935 0.980
1.5/16 1.3/8 1.7/16	IS-75 21F IS-75 22F IS-75 23F	2.047 2.125 2.125	1.732 1.732 1.732	0.748 0.787 0.787	1.165 1.165 1.204	2.165 2.165 2.204	1.035 1.210 1.210
1.1/2 1.9/16 1.5/8	IS-75 24F IS-75 25F IS-75 26F	2.244 2.401 2.401	1.732 1.732 1.732	0.787 0.787 0.866	1.322 1.322 1.322	2.322 2.322 2.322	1.375 1.375 1.320
1.11/16 1.3/4 1.13/16	IS-75 27F IS-75 28F IS-75 29F	2.519 2.519 2.637	1.732 1.732 2.125	0.866 0.866 0.905	1.519 1.519 1.519	2.519 2.519 2.519	1.375 1.540 1.815
1.7/8 2	IS-75 30F IS-75 32F	2.755 2.874	2.125 2.125	0.905 0.984	1.519 1.637	2.519 2.637	2.310 2.640

1" FRACTIONAL HEXAGON
A/F inch	MODEL NO.	D inch	d inch	TH inch	C inch	OAL inch	Wt. lbs.
3/4 13/16 7/8	IS-100 12F IS-100 13F IS-100 14F	1.417 1.535 1.574	2.125 2.125 2.125	0.551 0.551 0.551	1.023 1.023 1.023	2.204 2.204 2.204	1.30 1.43 1.43
15/16 1 1.1/16	IS-100 15F IS-100 16F IS-100 17F	1.692 1.692 1.811	2.125 2.125 2.125	0.629 0.629 0.629	1.023 1.023 1.023	2.204 2.204 2.204	1.43 1.43 1.54
1.1/8 1.3/16 1.1/4	IS-100 18F IS-100 19F IS-100 20F	1.889 1.968 2.047	2.215 2.215 2.215	6.29 8.26 8.26	1.023 1.141 1.141	2.204 2.283 2.283	1.54 1.54 1.54
1.5/16 1.3/8 1.7/16	IS-100 21F IS-100 22F IS-100 23F	2.125 2.244 2.244	2.125 2.125 2.125	0.826 0.826 0.984	1.141 1.220 1.220	2.283 2.401 2.401	1.54 1.59 1.95
1.1/2 1.9/16 1.5/8	IS-100 24F IS-100 25F IS-100 26F	2.362 2.440 2.519	2.125 2.125 2.125	0.984 0.984 1.102	1.377 1.377 1.377	2.559 2.559 2.559	1.92 2.09 2.09
1.11/16 1.3/4 1.13/16	IS-100 27F IS-100 28F IS-100 29F	2.519 2.755 2.755	2.125 2.125 2.125	1.102 1.102 1.102	1.547 1.547 1.547	2.755 2.755 2.755	2.31 2.64 2.64
1.7/8 1.15/16 2	IS-100 30F IS-100 31F IS-100 32F	2.834 2.952 2.952	2.125 2.125 2.125	1.102 1.102 1.102	1.547 1.692 1.692	2.755 2.874 2.874	2.64 3.33 3.33
2.1/16 2.1/8 2.3/16	IS-100 33F IS-100 34F IS-100 35F	3.188 3.186 3.188	2.125 2.125 2.125	1.102 1.102 1.181	1.692 1.850 1.850	2.874 3.031 3.031	4.07 4.07 4.84
2.1/4 2.5/16 2.3/8	IS-100 36F IS-100 37F IS-100 38F	3.307 3.425 3.543	2.125 2.125 2.125	1.181 1.181 1.259	2.007 2.086 2.086	3.188 3.267 3.267	4.73 5.28 5.28
2.7/16 2.1/2 2.9/16	IS-100 39F IS-100 40F IS-100 41F	3.543 3.661 3.661	2.125 2.125 2.125	1.259 1.259 1.496	2.204 2.204 2.204	3.385 3.385 3.385	6.05 6.66 6.90
2.5/8 2.11/16 2.3/4	IS-100 42F IS-100 43F IS-100 44F	3.779 3.779 3.897	2.125 2.125 2.125	1.496 1.496 1.574	2.362 2.362 2.362	3.661 3.661 3.661	8.25 8.25 8.25
2.13/16 2.7/8 2.15/16	IS-100 45F IS-100 46F IS-100 47F	4.055 4.055 4.173	2.125 3.386 3.386	1.574 1.574 1.653	2.362 2.362 2.677	3.661 3.661 3.858	9.35 9.35 9.90
3 3.1/16 3.1/8	IS-100 48F IS-100 49F IS-100 50F	4.137 4.291 4.291	3.386 3.386 3.386	1.653 1.653 1.653	2.677 2.677 2.677	3.858 3.858 3.858	10.12 10.34 10.45
3.3/16 3.1/4 3.5/16	IS-100 51F IS-100 52F IS-100 53F	4.409 4.409 4.409	3.386 3.386 3.386	1.753 1.753 1.753	2.677 2.677 2.677	3.858 3.858 3.858	10.89 11.22 11.55
3.3/8 3.7/16 3.1/2	IS-100 54F IS-100 55F IS-100 56F	4.685 4.685 4.921	3.386 3.386 3.386	1.753 1.850 1.850	2.952 2.952 2.952	4.133 4.133 4.133	11.66 11.77 13.64
3.5/8 3.3/4 3.7/8	IS-100 58F IS-100 60F IS-100 62F	4.921 5.157 5.314	3.386 3.386 3.386	1.968 2.125 2.125	2.952 3.070 3.070	4.133 4.212 4.212	13.86 14.08 14.19
4 4.1/8 4.1/4	IS-100 64F IS-100 66F IS-100 68F	5.511 5.669 5.826	3.386 5.000 5.000	2.125 2.244 2.244 .	3.267 3.267 3.267	4.448 4.448 4.448	14.52 14.52 14.74
4.3/8 4.1/2	IS-100 70F IS-100 72F	5.984 6.102	5.000 5.000	2.322 2.322	3.661 3.661	4.842 4.842	15.07 15.18

1.1/2" FRACTIONAL HEXAGON
A/F inch	MODEL NO.	D inch	d inch	TH inch	C inch	OAL inch	Wt. Lbs.
1.3/8 1.7/16 1.1/2	IS-150 22F IS-150 23F IS-150 24F	2.401 2.519 2.598	3.385 3.385 3.385	0.866 0.984 0.984	1.338 1.535 1.535	2.992 3.188 3.188	5.06 5.06 5.17
1.9/16 1.5/8 1.11/16	IS-150 25F IS-150 26F IS-150 27F	2.598 2.716 2.834	3.385 3.385 3.385	0.984 0.984 0.984	1.535 1.535 1.535	3.188 3.188 3.188	5.28 5.28 5.28
1.3/4 1.13/16 1.7/8	IS-150 28F IS-150 29F IS-150 30F	2.834 2.992 2.992	3.385 3.385 3.385	0.984 1.062 1.062	1.535 1.614 1.614	3.188 3.267 3.267	5.50 5.50 5.50
1.15/16 2 2.1/16	IS-150 31F IS-150 32F IS-150 33F	3.110 3.188 3.307	3.385 3.385 3.385	1.062 1.062 1.062	1.614 1.614 1.614	3.267 3.267 3.267	5.72 5.72 5.94
2.1/8 2.3/16 2.1/4	IS-150 34F IS-150 35F IS-150 36F	3.307 3.425 3.425	3.385 3.385 3.385	1.062 1.181 1.181	1.850 1.850 1.968	3.543 3.543 3.661	5.94 5.94 6.16
2.5/16 2.3/8 2.7/16	IS-150 37F IS-150 38F IS-150 39F	3.582 3.700 3.818	3.385 3.385 3.385	1.181 1.259 1.259	1.968 1.968 2.125	3.661 3.661 3.818	6.16 6.16 6.60
2.1/2 2.9/16 2.5/8	IS-150 40F IS-150 41F IS-150 42F	3.818 3.897 4.173	3.385 3.385 3.385	1.259 1.456 1.456	2.125 2.125 2.125	3.818 3.818 4.015	6.60 6.60 7.04
2.11/16 2.3/4 2.13/16	IS-150 43F IS-150 44F IS-150 45F	4.133 4.133 4.212	3.385 3.385 3.385	1.456 1.574 1.574	2.322 2.322 2.519	4.015 4.015 4.173	7.04 7.48 7.70
2.7/8 2.15/16 3	IS-150 46F IS-150 47F IS-150 48F	4.291 4.370 4.370	3.385 3.385 3.385	1.574 1.574 1.574	2.519 2.519 2.716	4.173 4.173 4.370	8.47 8.47 8.47
3.1/16 3.1/8 3.3/16	IS-150 49F IS-150 50F IS-150 51F	4.645 4.645 4.763	3.385 3.385 3.385	1.574 1.574 1.771	2.716 2.716 2.716	4.370 4.370 4.370	10.12 10.12 11.00
3.1/4 3.5/16 3.3/8	IS-150 52F IS-150 53F IS-150 54F	4.763 4.763 4.921	3.385 3.385 4.921	1.771 1.771 1.889	2.716 2.716 2.952	4.370 4.370 4.606	11.00 11.00 12.98
3.7/16 3.1/2 3.9/16	IS-150 55F IS-150 56F IS-150 57F	5.118 5.118 5.118	4.921 4.921 4.921	1.889 1.889 2.007	2.952 2.952 3.031	4.606 4.606 4.685	16.28 16.28 16.28
3.5/8 3.11/16 3.3/4	IS-150 58F IS-150 59F IS-150 60F	5.275 5.275 5.354	4.921 4.921 4.921	2.007 2.007 2.125	3.031 3.031 3.031	4.685 4.685 4.685	16.72 17.60 17.82
3.13/16 3.7/8 3.15/16	IS-150 61F IS-150 62F IS-150 63F	5.511 5.629 5.629	4.921 4.921 4.921	2.125 2.125 2.125	3.031 3.031 3.307	4.685 4.685 4.960	18.48 19.14 20.46
4 4.1/16 4.1/8	IS-150 64F IS-150 65F IS-150 66F	5.748 5.748 5.866	4.921 4.921 4.921	2.125 2.125 2.244	3.307 3.307 3.307	4.960 4.960 4.960	21.34 21.45 21.45
4.3/16 4.1/4 4.3/8	IS-150 67F IS-150 68F IS-150 70F	5.866 6.102 6.102	4.921 4.921 4.921	2.244 2.362 2.480	3.307 3.307 3.700	4.960 4.960 5.433	21.45 22.44 23.32
4.1/2 4.5/8 4.3/4	IS-150 72F IS-150 74F IS-150 76F	6.338 6.456 6.614	4.921 4.921 4.921	2.755 2.755 2.952	3.700 3.700 4.094	5.433 5.433 5.748	25.52 26.62 27.72
5 5.1/8	IS-150 80F IS-150 82F	7.000 7.086	4.921 4.921	2.952 3.228	4.094 4.606	5.748 6.259	32.45 38.50

2.1/2" FRACTIONAL HEXAGON
A/F inch	MODEL NO.	D inch	d inch	TH inch	C inch	OAL inch
1.5/8 1.3/4 1.7/8	IS-250 26F IS-250 28F IS-250 30F	4.094 4.094 4.094	5.000 5.000 5.000	0.984 0.984 1.102	0.423 0.423 0.423	4.645 4.645 4.645
2 2.1/8 2.1/4	IS-250 32F IS-250 34F IS-250 36F	4.094 4.094 4.094	5.000 5.000 5.000	1.181 1.299 1.299	0.423 0.423 0.423	4.645 4.645 4.645
2.3/8 2.1/2 2.5/8	IS-250 38F IS-250 40F IS-250 42F	4.094 4.094 4.094	5.000 5.000 5.000	1.147 1.147 1.535	0.423 0.423 0.423	4.645 4.645 4.645
2.3/4 2.7/8 2.15/16	IS-250 44F IS-250 46F IS-250 47F	4.094 4.645 4.645	5.000 5.000 5.000	1.692 1.692 1.692	0.423 1.166 1.166	4.645 5.039 5.039
3 3.1/8 3.1/4	IS-250 48F IS-250 50F IS-250 52F	4.645 5.000 5.118	5.000 5.000 5.000	1.692 1.889 1.889	1.166 1.166 1.166	5.039 5.039 5.039
3.3/8 3.1/2 3.5/8	IS-250 54F IS-250 56F IS-250 58F	5.236 4.354 5.511	5.000 5.000 5.000	1.889 1.889 2.047	1.250 1.250 1.283	5.236 5.236 5.314
3.3/4 3.7/8 4	IS-250 60F IS-250 62F IS-250 64F	5.629 5.787 5.905	5.000 5.000 5.000	2.165 2.165 2.283	1.283 1.283 1.433	5.314 5.314 5.669
4.1/8 4.1/4 4.3/8	IS-250 66F IS-250 68F IS-250 70F	6.181 6.299 6.496	5.000 5.000 5.000	2.440 2.440 2.519	1.433 1.433 1.583	5.669 5.669 6.023
4.1/2 4.5/8 4.7/8	IS-250 72F IS-250 74F IS-250 78F	6.614 6.889 7.086	5.000 5.000 5.000	2.677 2.677 2.834	1.716 1.716 1.716	6.338 6.338 6.338
5 5.1/8 5.1/4	IS-250 80F IS-250 82F IS-250 84F	7.322 7.322 7.598	5.000 5.000 5.000	2.834 3.070 3.070	1.716 1.983 1.983	6.338 6.968 6.968
5.3/8 5.1/2 5.5/8	IS-250 86F IS-250 88F IS-250 90F	7.716 7.784 7.784	5.000 5.000 5.000	3.149 3.385 3.385	1.983 2.033 2.116	6.968 7.086 7.283
5.3/4 6.1/8 6.1/2	IS-250 92F IS-250 98F IS-250 104F	8.070 8.582 9.133	5.984 5.984 6.889	3.385 3.543 3.858	2.116 2.250 2.433	7.283 7.598 8.031
6.7/8 7 7.1/4	IS-250 110F IS-250 112F IS-250 116F	9.566 9.842 10.039	6.889 6.889 6.889	4.055 4.055 4.055	2.550 2.550 2.650	8.307 8.307 8.543
7.1/2 7.5/8 7.3/4	IS-250 120F IS-250 122F IS-250 124F	10.433 10.629 10.826	6.889 6.889 6.889	4.448 4.448 4.448	2.716 2.783 2.783	8.700 8.858 8.858
7.7/8 8 8.1/8	IS-250 126F IS-250 128F IS-250 130F	10.826 11.023 11.220	6.889 6.889 6.889	4.645 4.645 4.645	2.850 2.850 2.850	9.015 9.015 9.015
8.1/4 8.3/8 8.1/2	IS-250 132F IS-250 134F IS-250 136F	11.220 11.417 11.614	6.889 6.889 6.889	4.763 4.763 4.921	2.950 2.950 3.066	9.251 9.251 9.527
9 9.1/4	IS-250 144F IS-250 148F	12.283 12.401	6.889 6.889	5.196 5.354	3.383 3.783	10.275 11.220

Fractional Deep Hexagon

3/8" FRACTIONAL DEEP HEXAGON
A/F inch	MODEL NO.	D inch	d inch	TH inch	C inch	OAL inch	Wt. lbs.
5/16 3/8 7/16	ISD-38 05F ISD-38 06F ISD-38 07F	0.551 0.629 0.708	0.748 0.748 0.748	0.236 0.275 0.314	1.574 1.574 1.574	2.125 2.125 2.125	0.155 0.155 0.175
1/2 9/16 5/8	ISD-38 08F ISD-38 09F ISD-38 10F	0.866 0.866 0.944	0.866 0.866 0.866	0.354 0.393 0.433	1.574 1.811 1.811	2.125 2.362 2.362	0.220 0.255 0.265
11/16 3/4	ISD-38 11F ISD-38 12F	1.023 1.023	0.866 0.866	0.472 0.472	2.047 2.047	2.598 2.598	0.365 0.365
13/16 7/8	ISD-38 13F ISD-38 14F	1.181 1.259	0.944 0.944	0.472 0.511	2.047 2.047	2.598 2.598	0.440 0.485

1/2" FRACTIONAL DEEP HEXAGON
A/F inch	MODEL NO.	D inch	d inch	TH inch	C inch	OAL inch	Wt. lbs.
3/8 7/16 1/2	ISD-50 06F ISD-50 07F ISD-50 08F	0.708 0.787 0.905	0.984 0.984 0.984	0.275 0.354 0.354	2.676 2.676 2.676	3.346 3.346 3.346	0.285 0.330 0.400
9/16 5/8 11/16	ISD-50 09F ISD-50 10F ISD-50 11F	0.905 1.062 1.181	0.984 1.181 1.181	0.393 0.433 0.472	2.676 2.676 2.676	3.346 3.346 3.346	0.485 0.530 0.530
3/4 13/16 7/8	ISD-50 12F ISD-50 13F ISD-50 14F	1.181 1.259 1.259	1.181 1.181 1.181	0.511 0.551 0.551	2.676 2.676 2.676	3.346 3.346 3.346	0.705 0.750 0.750
15/16 1 1.1/16	ISD-50 15F ISD-50 16F ISD-50 17F	1.417 1.574 1.574	1.181 1.181 1.377	0.551 0.629 0.629	2.676 2.676 2.676	3.346 3.346 3.346	0.880 1.210 1.210
1.1/8 1.3/16 1.1/4	ISD-50 18F ISD-50 19F ISD-50 20F	1.614 1.692 1.771	1.377 1.377 1.377	0.629 0.669 0.669	2.676 2.676 2.676	3.346 3.346 3.346	1.265 1.375 1.715
1.5/16 1.3/8	ISD-50 21F ISD-50 22F	1.850 1.968	1.377 1.377	0.708 0.787	2.676 2.676	3.346 3.346	1.780 1.800
1.7/16 1.1/2	ISD-50 23F ISD-50 24F	1.968 2.086	1.732 1.732	0.866 0.866	2.676 2.676	3.346 3.346	1.870 1.915

3/4" FRACTIONAL DEEP HEXAGON
A/F inch	MODEL NO.	D inch	d inch	TH inch	C inch	OAL inch	Wt. lbs.
9/16 5/8 11/16	ISD-75 09F ISD-75 10F ISD-75 11F	1.023 1.181 1.259	1.732 1.732 1.732	0.472 0.472 0.472	1.952 1.952 1.952	2.952 2.952 2.952	1.100 1.165 1.32
3/4 13/16 7/8	ISD-75 12F ISD-75 13F ISD-75 14F	1.299 1.417 1.456	1.732 1.732 1.732	0.472 0.511 0.511	1.952 1.952 2.543	2.952 2.952 3.543	1.320 1.595 1.65
15/16 1 1.1/16	ISD-75 15F ISD-75 16F ISD-75 17F	1.614 1.614 1.629	1.732 1.732 1.732	0.629 0.629 0.629	2.543 2.543 2.543	3.543 3.543 3.543	1.815 1.870 1.870
1.1/8 1.3/16 1.1/4	ISD-75 18F ISD-75 19F ISD-75 20F	1.771 1.850 1.968	1.732 1.732 1.732	0.708 0.708 0.748	2.543 2.543 2.543	3.543 3.543 3.543	1.935 1.980 1.980
1.5/16 1.3/8 1.7/16	ISD-75 21F ISD-75 22F ISD-75 23F	2.047 2.125 2.125	1.732 1.732 1.732	0.748 0.787 0.787	2.543 2.543 2.543	3.543 3.543 3.543	2.090 2.090 2.120
1.1/2 1.9/16 1.5/8	ISD-75 24F ISD-75 25F ISD-75 26F	2.244 2.401 2.401	1.732 1.732 1.732	0.787 0.787 0.866	2.543 2.543 2.543	3.543 3.543 3.543	2.360 2.450 2.580
1.11/16 1.3/4 1.13/16	ISD-75 27F ISD-75 28F ISD-75 29F	2.519 2.519 2.637	1.732 1.732 2.125	0.866 0.866 0.905	2.740 2.740 2.937	3.740 3.740 3.937	2.660 2.740 2.870
1.7/8 2	ISD-75 30F ISD-75 32F	2.755 2.874	2.125 2.125	0.905 0.984	2.937 2.937	3.937 3.937	3.090 3.180

1" FRACTIONAL DEEP HEXAGON
A/F inch	MODEL NO.	D inch	d inch	TH inch	C inch	OAL inch	Wt. lbs.
3/4 13/16 7/8	ISD-100 12F ISD-100 13F ISD-100 14F	1.417 1.535 1.574	2.125 2.125 2.125	0.551 0.551 0.551	3.149 3.149 3.149	4.330 4.330 4.330	2.20 2.20 2.20
15/16 1 1.1/16	ISD-100 15F ISD-100 16F ISD-100 17F	1.692 1.692 1.811	2.125 2.125 2.125	0.629 0.629 0.629	3.149 3.149 3.149	4.330 4.330 4.330	2.42 2.53 2.64
1.1/8 1.3/16 1.1/4	ISD-100 18F ISD-100 19F ISD-100 20F	1.889 1.968 2.047	2.215 2.215 2.215	6.29 8.26 8.26	3.149 3.149 3.149	4.330 4.330 4.330	2.64 2.81 2.86
1.5/16 1.3/8 1.7/16	ISD-100 21F ISD-100 22F ISD-100 23F	2.125 2.244 2.244	2.125 2.125 2.125	0.826 0.826 0.984	3.149 3.149 3.149	4.330 4.330 4.330	3.02 2.97 3.33
1.1/2 1.9/16 1.5/8	ISD-100 24F ISD-100 25F ISD-100 26F	2.362 2.440 2.519	2.125 2.125 2.125	0.984 0.984 1.102	3.149 3.149 3.149	4.330 4.330 4.330	3.41 3.63 3.63
1.11/16 1.3/4 1.13/16	ISD-100 27F ISD-100 28F ISD-100 29F	2.519 2.755 2.755	2.125 2.125 2.125	1.102 1.102 1.102	3.149 3.149 3.149	4.330 4.330 4.330	3.85 3.85 4.84
1.7/8 1.15/16 2	ISD-100 30F ISD-100 31F ISD-100 32F	2.834 2.952 2.952	2.125 2.125 2.125	1.102 1.102 1.102	3.149 3.149 3.149	4.330 4.330 4.330	4.84 5.17 5.17
2.1/16 2.1/8 2.3/16	ISD-100 33F ISD-100 34F ISD-100 35F	3.188 3.186 3.188	2.125 2.125 2.125	1.102 1.102 1.102	3.149 3.149 3.149	4.330 4.330 4.330	5.50 5.94 5.17
2.1/4 2.5/16 2.3/8	ISD-100 36F ISD-100 37F ISD-100 38F	3.307 3.425 3.543	2.125 2.125 2.125	1.181 1.181 1.259	3.149 3.149 3.937	4.330 4.330 5.118	6.27 6.27 7.81
2.7/16 2.1/2 2.9/16	ISD-100 39F ISD-100 40F ISD-100 41F	3.543 3.661 3.661	2.125 2.125 2.125	1.259 1.259 1.496	3.937 3.937 3.937	5.118 5.118 5.118	8.80 9.24 9.24
2.5/8 2.11/16 2.3/4	ISD-100 42F ISD-100 43F ISD-100 44F	3.779 3.779 3.897	2.125 2.125 2.125	1.496 1.496 1.574	3.937 3.937 3.937	5.118 5.118 5.118	10.00 10.00 10.67
2.13/16 2.7/8 2.15/16	ISD-100 45F ISD-100 46F ISD-100 47F	4.055 4.055 4.173	2.125 3.386 3.386	1.574 1.574 1.653	3.937 3.937 3.937	5.118 5.118 5.118	10.60 11.00 11.00
3 3.1/16 3.1/8	ISD-100 48F ISD-100 49F ISD-100 50F	4.137 4.291 4.291	3.386 3.386 3.386	1.653 1.653 1.653	3.937 3.937 4.330	5.118 5.118 5.511	11.00 13.86 14.52
3.3/16 3.1/4 3.5/16	ISD-100 51F ISD-100 52F ISD-100 53F	4.409 4.409 4.409	3.386 3.386 3.386	1.732 1.732 1.732	4.330 4.330 4.330	5.511 5.511 5.511	14.52 14.52 14.52
3.3/8 3.7/16 3.1/2	ISD-100 54F ISD-100 55F ISD-100 56F	4.685 4.685 4.921	3.386 3.386 3.386	1.850 1.850 1.850	4.330 4.330 4.330	5.511 5.511 5.511	14.52 14.96 15.07
3.5/8 3.3/4 3.7/8	ISD-100 58F ISD-100 60F ISD-100 62F	4.921 5.157 5.314	3.386 3.386 3.386	1.968 2.125 2.125	4.330 4.330 4.527	5.511 5.511 5.708	15.07 15.18 15.84
4 4.1/8 4.1/4	ISD-100 64F ISD-100 66F ISD-100 68F	5.511 5.669 5.826	3.386 5.000 5.000	2.125 2.244 2.244	4.527 4.527 4.724	5.708 5.708 5.905	16.94 16.94 17.60
4.3/8 4.1/2	ISD-100 70F ISD-100 72F	5.984 6.102	5.000 5.000	2.322 2.322	4.724 4.724	5.905 5.905	18.15 18.15

1.1/2" FRACTIONAL DEEP HEXAGON

A/F inch	MODEL A/FNO.	D inch	d inch	TH inch	C inch	OAL inch	Wt. Lbs.
1.3/8 1.7/16 1.1/2	ISD-150 22F ISD-150 23F ISD-150 24F	2.401 2.519 2.598	3.385 3.385 3.385	0.866 0.984 0.984	3.268 3.268 3.268	4.921 4.921 4.921	6.82 6.82 7.70
1.9/16 1.5/8 1.11/16	ISD-150 25F ISD-150 26F ISD-150 27F	2.598 2.716 2.834	3.385 3.385 3.385	0.984 0.984 0.984	3.268 3.268 3.268	4.921 4.921 4.921	7.70 8.25 8.25
1.3/4 1.13/16 1.7/8	ISD-150 28F ISD-150 29F ISD-150 30F	2.834 2.992 2.992	3.385 3.385 3.385	0.984 1.062 1.062	3.268 3.465 3.465	4.921 5.118 5.118	8.69 9.24 9.24
1.15/16 2 2.1/16	ISD-150 31F ISD-150 32F ISD-150 33F	3.110 3.188 3.307	3.385 3.385 3.385	1.062 1.062 1.062	3.465 3.465 3.465	5.118 5.118 5.118	9.24 9.46 10.34
2.1/8 2.3/16 2.1/4	ISD-150 34F ISD-150 35F ISD-150 36F	3.307 3.425 3.425	3.385 3.385 3.385	1.062 1.181 1.181	3.465 3.465 3.465	5.118 5.118 5.118	10.34 10.78 10.78
2.5/16 2.3/8 2.7/16	ISD-150 37F ISD-150 38F ISD-150 39F	3.582 3.700 3.818	3.385 3.385 3.385	1.181 1.259 1.259	3.165 4.252 4.252	5.118 5.905 5.905	10.78 11.00 11.77
2.1/2 2.9/16 2.5/8	ISD-150 40F ISD-150 41F ISD-150 42F	3.818 3.897 4.173	3.385 3.385 3.385	1.259 1.456 1.456	4.252 4.252 4.252	5.905 5.905 5.905	11.77 12.54 12.98
2.11/16 2.3/4 2.13/16	ISD-150 43F ISD-150 44F ISD-150 45F	4.133 4.133 4.212	3.385 3.385 3.385	1.456 1.574 1.574	4.252 4.646 4.646	5.905 6.299 6.299	12.98 15.62 15.73
2.7/8 2.15/16 3	ISD-150 46F ISD-150 47F ISD-150 48F	4.291 4.370 4.370	3.385 3.385 3.385	1.574 1.574 1.574	4.646 4.646 4.646	6.299 6.299 6.299	15.73 17.49 17.49
3.1/16 3.1/8 3.3/16	ISD-150 49F ISD-150 50F ISD-150 51F	4.645 4.645 4.763	3.385 3.385 3.385	1.574 1.574 1.771	4.646 5.236 5.236	6.299 6.889 6.889	20.57 20.57 21.23
3.1/4 3.5/16 3.3/8	ISD-150 52F ISD-150 53F ISD-150 54F	4.763 4.763 4.921	3.385 3.385 4.921	1.771 1.771 1.889	5.236 5.236 5.236	6.889 6.889 6.889	21.23 21.23 21.67
3.7/16 3.1/2 3.9/16	ISD-150 55F ISD-150 56F ISD-150 57F	5.118 5.118 5.118	4.921 4.921 4.921	1.889 1.889 2.007	5.236 5.236 5.236	6.889 6.889 6.889	21.67 21.67 21.67
3.5/8 3.11/16 3.3/4	ISD-150 58F ISD-150 59F ISD-150 60F	5.275 5.275 5.354	4.921 4.921 4.921	2.007 2.007 2.125	5.236 5.236 5.236	6.889 6.889 7.086	22.00 22.55 23.65
3.13/16 3.7/8 3.15/16	ISD-150 61F ISD-150 62F ISD-150 63F	5.511 5.629 5.629	4.921 4.921 4.921	2.125 2.125 2.125	5.433 5.433 4.630	7.086 7.086 7.086	24.20 24.20 24.64
4 4.1/16 4.1/8	ISD-150 64F ISD-150 65F ISD-150 66F	5.748 5.748 5.866	4.921 4.921 4.921	2.125 2.125 2.244	5.630 5.630 6.024	7.283 7.283 7.677	25.85 25.85 26.20
4.3/16 4.1/4 4.3/8	ISD-150 67F ISD-150 68F ISD-150 70F	5.866 6.102 6.102	4.921 4.921 4.921	2.244 2.362 2.480	6.024 6.024 6.024	7.677 7.677 7.677	26.20 27.50 29.92
4.1/2 4.5/8 4.3/4	ISD-150 72F ISD-150 74F ISD-150 76F	6.338 6.456 6.614	4.921 4.921 4.921	2.755 2.755 2.952	6.024 6.211 6.211	7.677 7.874 7.874	32.12 34.32 36.30
5 5.1/8	ISD-150 80F ISD-150 82F	7.000 7.086	4.921 4.921	2.952 3.228	6.211 6.211	7.874 7.874	40.37 42.90

2.1/2" METRIC DEEP HEXAGON
A/F inch	MODEL NO.	D inch	d inch	TH inch	C inch	OAL inch
1.5/8 1.3/4 1.7/8	ISD-250 26F ISD-250 28F ISD-250 30F	4.094 4.094 4.094	5.000 5.000 5.000	0.984 0.984 1.102	5.197 5.197 5.197	7.559 7.559 7.559
2 2.1/8 2.1/4	ISD-250 32F ISD-250 34F ISD-250 36F	4.094 4.094 4.094	5.000 5.000 5.000	1.181 1.299 1.299	5.197 5.197 5.197	7.559 7.559 7.559 .
2.3/8 2.1/2 2.5/8	ISD-250 38F ISD-250 40F ISD-250 42F	4.094 4.094 4.094	5.000 5.000 5.000	1.147 1.147 1.535	5.197 5.197 5.197	7.559 7.559 7.559
2.3/4 2.7/8 2.15/16	ISD-250 44F ISD-250 46F ISD-250 47F	4.094 4.645 4.645	5.000 5.000 5.000	1.692 1.692 1.692	5.197 5.197 5.197	7.559 7.559 7.559
3 3.1/8 3.1/4	ISD-250 48F ISD-250 50F ISD-250 52F	4.645 5.000 5.118	5.000 5.000 5.000	1.692 1.889 1.889	5.197 5.197 5.197	7.559 7.559 7.559
3.3/8 3.1/2 3.5/8	ISD-250 54F ISD-250 56F ISD-250 58F	5.236 4.354 5.511	5.000 5.000 5.000	1.889 1.889 2.047	5.197 5.197 5.197	7.559 7.559 7.559
3.3/4 3.7/8 4	ISD-250 60F ISD-250 62F ISD-250 64F	5.629 5.787 5.905	5.000 5.000 5.000	2.165 2.165 2.283	5.197 5.197 5.197	7.559 7.559 7.559
4.1/8 4.1/4 4.3/8	ISD-250 66F ISD-250 68F ISD-250 70F	6.181 6.299 6.496	5.000 5.000 5.000	2.440 2.440 2.519	5.197 5.788 5.788	7.559 8.465 8.465
4.1/2 4.5/8 4.7/8	ISD-250 72F ISD-250 74F ISD-250 78F	6.614 6.889 7.086	5.000 5.000 5.000	2.677 2.677 2.834	5.788 6.103 6.103	8.150 8.465 8.465
5 5.1/8 5.1/4	ISD-250 80F ISD-250 82F ISD-250 84F	7.322 7.322 7.598	5.000 5.000 5.000	2.834 3.070 3.070	6.148 6.732 6.732	8.780 9.094 9.094
5.3/8 5.1/2 5.5/8	ISD-250 86F ISD-250 88F ISD-250 90F	7.716 7.784 7.784	5.000 5.000 5.000	3.149 3.385 3.385	6.732 7.087 7.087	9.094 9.449 9.449
5.3/4 6.1/8 6.1/2	ISD-250 92F ISD-250 98F ISD-250 104F	8.070 8.582 9.133	5.984 5.984 6.889	3.385 3.543 3.858	7.087 7.402 8.032	9.449 9.764 10.394
6.7/8 7 7.1/4	ISD-250 110F ISD-250 112F ISD-250 116F	9.566 9.842 10.039	6.889 6.889 6.889	4.055 4.055 4.055	8.032 8.347 8.347	10.394 10.709 10.709
7.1/2 7.5/8 7.3/4	ISD-250 120F ISD-250 122F ISD-250 124F	10.433 10.629 10.826	6.889 6.889 6.889	4.448 4.448 4.448	8.504 8.662 8.819	10.866 11.024 11.181
7.7/8 8 8.1/8	ISD-250 126F ISD-250 128F ISD-250 130F	10.826 11.023 11.220	6.889 6.889 6.889	4.645 4.645 4.645	8.819 9.331 9.331	11.181 11.693 11.693
8.1/4 8.3/8 8.1/2	ISD-250 132F ISD-250 134F ISD-250 136F	11.220 11.417 11.614	6.889 6.889 6.889	4.763 4.763 4.921	9.331 9.331 9.331	11.693 11.693 12.441
9 9.1/4	ISD-250 144F ISD-250 148F	12.283 12.401	6.889 6.889	5.196 5.354	10.079 11.811	12.441 14.173

Fractional Bi Hexagon

3/8" FRACTIONAL BIHEXAGON
A/F inch	MODEL NO.	D inch	d inch	TH inch	C inch	OAL inch	Wt. lbs.
3/8 7/16 1/2	IS-38 06F DH IS-38 07F DH IS-38 08F DH	0.629 0.708 0.866	0.748 0.748 0.866	0.275 0.314 0.354	0.511 0.511 0.630	1.062 1.062 1.181	0.055 0.075 0.088
9/16 5/8 11/16	IS-38 09F DH IS-38 10F DH IS-38 11F DH	0.866 0.944 1.023	0.866 0.866 0.866	0.393 0.433 0.472	0.630 0.630 0.708 .	1.181 1.181 1.259	0.110 0.120 0.135
3/4 13/16 7/8	IS-38 12F DH IS-38 13F DH IS-38 14F DH	1.023 1.181 1.259	0.866 0.944 0.944	0.472 0.472 0.511	0.708 0.708 0.708	1.259 1.259 1.259	1.155 0.200 0.220

1/2" FRACTIONAL BIHEXAGON
A/F inch	MODEL NO.	D inch	d inch	TH inch	C inch	OAL inch	Wt. lbs.
7/16 1/2 9/16	IS-50 07F DH IS-50 08F DH IS-50 09F DH	0.708 0.905 0.905	0.984 0.984 0.984	0.354 0.354 0.393	0.590 0.699 0.699	1.259 1.338 1.338	0.175 0.175 0.190
5/8 11/16 3/4	IS-50 10F DH IS-50 11F DH IS-50 12F DH	1.062 1.181 1.181 .	1.181 1.181 1.181	0.433 0.472 0.511	0.748 0.748 0.748	1.417 1.417 1.417	0.285 0.310 0.310
13/16 7/8 15/16	IS-50 13F DH IS-50 14F DH IS-50 15F DH	1.259 1.259 1.417	1.181 1.181 1.181	0.551 0.551 0.551	0.826 0.826 0.905	1.496 1.496 1.614	0.400 0.375 0.450
1 1.1/16 1.1/8	IS-50 16F DH IS-50 17F DH IS-50 18F DH	1.574 1.574 1.614	1.181 1.377 1.377	0.629 0.629 0.629	0.905 0.905 0.984	1.614 1.614 1.653	0.505 0.625 0.725
1.3/16 1.1/4 1.5/16	IS-50 19F DH IS-50 20F DH IS-50 21F DH	1.692 1.771 1.850	1.377 1.377 1.377	0.669 0.669 0.708	1.102 1.102 1.102	1.771 1.771 1.771	0.770 0.880 0.945
1.3/8 1.7/16 1.1/2	IS-50 22F DH IS-50 23F DH IS-50 24F DH	1.968 1.968 2.086	1.377 1.732 1.732	0.787 0.866 0.866	1.220 1.220 1.338	1.889 1.889 2.007	1.080 1.255 1.255

3/4" FRACTIONAL BIHEXAGON
A/F inch	MODEL NO.	D inch	d inch	TH inch	C inch	OAL inch	Wt. lbs.
9/16 5/8 11/16	IS-75 09F DH IS-75 10F DH IS-75 11F DH	1.023 1.181 1.259	1.732 1.732 1.732	0.472 0.472 0.472	0.771 0.771 0.771	1.771 1.771 1.771	0.700 0.815 0.815
3/4 13/16 7/8	IS-75 12F DH IS-75 13F DH IS-75 14F DH	1.299 1.417 1.456	1.732 1.732 1.732	0.472 0.511 0.511	0.771 0.889 0.889	1.771 1.889 1.889	0.815 0.835 0.835
15/16 1 1.1/16	IS-75 15F DH IS-75 16F DH IS-75 17F DH	1.614 1.614 1.629	1.732 1.732 1.732	0.629 0.629 0.629	0.889 0.889 0.889	1.889 1.889 1.889	0.880 0.880 0.880
1.1/8 1.3/16 1.1/4	IS-75 18F DH IS-75 19F DH IS-75 20F DH	1.771 1.850 1.968	1.732 1.732 1.732	0.708 0.708 0.748	0.889 1.047 1.047	1.889 2.047 2.047	0.900 0.935 1.055
1.5/16 1.3/8 1.7/16	IS-75 21F DH IS-75 22F DH IS-75 23F DH	2.047 2.125 2.125	1.732 1.732 1.732	0.748 0.787 0.787	1.165 1.165 1.204	2.165 2.165 2.204	1.100 1.265 1.265
1.1/2 1.9/16 1.5/8	IS-75 24F DH IS-75 25F DH IS-75 26F DH	2.244 2.401 2.401	1.732 1.732 1.732	0.787 0.787 0.866	1.322 1.322 1.322	2.322 2.322 2.322	1.320 1.375 1.375
1.11/16 1.3/4 1.13/16	IS-75 27F DH IS-75 28F DH IS-75 29F DH	2.519 2.519 2.637	1.732 1.732 1.732	0.866 0.866 0.905	1.519 1.519 1.519	2.519 2.519 2.519	1.375 1.540 1.815
1.7/8 2	IS-75 30F DH IS-75 32F DH	2.755 2.874	2.125 2.125	0.905 0.984	1.519 1.637	2.519 2.637	1.815 3.080

1" FRACTIONAL BIHEXAGON
A/F inch	MODEL NO.	D inch	d inch	TH inch	C inch	OAL inch	Wt. lbs.
3/4 13/16 7/8	IS-100 12F DH IS-100 13F DH IS-100 14F DH	1.417 1.535 1.574	2.125 2.125 2.125	0.551 0.551 0.551	1.023 1.023 1.023	2.204 2.204 2.204	1.30 1.43 1.43
15/16 1 1.1/16	IS-100 15F DH IS-100 16F DH IS-100 17F DH	1.692 1.692 1.811	2.125 2.125 2.125	0.629 0.629 0.629	1.023 1.023 1.023	2.204 2.204 2.204	1.43 1.43 1.54
1.1/8 1.3/16 1.1/4	IS-100 18F DH IS-100 19F DH IS-100 20F DH	1.889 1.968 2.047	2.125 2.125 2.125	0.629 0.826 0.826	1.023 1.141 1.141	2.204 2.283 2.283	1.54 1.54 1.54
1.5/16 1.3/8 1.7/16	IS-100 21F DH IS-100 22F DH IS-100 23F DH	2.125 2.244 2.244	2.125 2.125 2.125	0.826 0.826 0.984	1.377 1.377 1.377	2.559 2.559 2.559	1.54 1.59 1.95
1.1/2 1.9/16 1.5/8	IS-100 24F DH IS-100 25F DH IS-100 26F DH	2.362 2.440 2.519	2.125 2.125 2.125	0.984 0.984 1.102	1.377 1.377 1.377	2.559 2.559 2.559	1.92 2.09 2.09
1.11/16 1.3/4 1.13/16	IS-100 27F DH IS-100 28F DH IS-100 29F DH	2.519 2.755 2.755	2.125 2.125 2.125	1.102 1.102 1.102	1.574 1.574 1.574	2.755 2.755 2.755	2.31 2.64 2.64
1.7/8 1.15/16 2	IS-100 30F DH IS-100 31F DH IS-100 32F DH	2.834 2.952 2.952	2.125 2.125 2.125	1.102 1.102 1.102	1.574 1.692 1.692	2.755 2.874 2.874	2.64 3.33 3.33
2.1/16 2.1/8 2.3/16	IS-100 33F DH IS-100 34F DH IS-100 35F DH	3.188 3.186 3.188	2.125 2.125 2.125	1.102 1.102 1.181	1.692 1.850 1.850	2.874 3.031 3.031	4.07 4.07 4.84
2.1/4 2.5/16 2.3/8	IS-100 36F DH IS-100 37F DH IS-100 38F DH	3.307 3.425 3.543	2.125 2.125 2.125	1.181 1.181 1.259	2.007 2.088 2.088	3.188 3.267 2.367	4.73 5.28 5.28
2.7/16 2.1/2 2.9/16	IS-100 39F DH IS-100 40F DH IS-100 41F DH	3.543 3.661 3.661	2.125 2.125 2.125	1.259 1.259 1.496	2.204 2.204 2.204	3.385 3.385 3.385	6.05 6.66 6.90
2.5/8 2.11/16 2.3/4	IS-100 42F DH IS-100 43F DH IS-100 44F DH	3.779 3.779 3.897	2.125 2.125 2.125	1.496 1.496 1.574	2.362 2.362 2.362	3.661 3.661 3.661	8.25 8.25 8.25
2.13/16 2.7/8 2.15/16	IS-100 45F DH IS-100 46F DH IS-100 47F DH	4.055 4.055 4.173	2.125 3.386 3.386	1.574 1.574 1.653	2.362 2.362 2.677	3.661 3.661 3.858	9.35 9.35 9.90
3 3.1/16 3.1/8	IS-100 48F DH IS-100 49F DH IS-100 50F DH	4.173 4.291 4.291	3.386 3.386 3.386	1.653 1.653 1.653	2.677 2.677 2.677	3.858 3.858 3.858	10.12 10.34 10.45
3.3/16 3.1/4 3.5/16	IS-100 51F DH IS-100 52F DH IS-100 53F DH	4.409 4.409 4.409	3.386 3.386 3.386	1.753 1.0753 1.753	2.677 2.677 2.677	3.858 3.858 3.858	10.89 11.22 11.55
3.3/8 3.7/16 3.1/2	IS-100 54F DH IS-100 55F DH IS-100 56F DH	4.685 4.685 4.921	3.386 3.386 3.386	1.753 1.850 1.850	2.952 2.952 2.952	4.133 4.133 4.133	11.66 11.77 13.64
3.5/8 3.3/4 3.7/8	IS-100 58F DH IS-100 60F DH IS-100 62F DH	4.921 5.157 5.314	3.386 3.386 3.386	1.968 2.125 2.125	2.952 3.070 3.070	4.133 4.212 4.212	13.86 14.08 14.19

Metric Bi Square

3/4" METRIC BISQUARE
A/F mm	MODEL NO.	D mm	d mm	TH mm	C mm	OAL mm	Wt. Kg.
32 33 34	IS-75 32M BS IS-75 33M BS IS-75 34M BS	62.0 65.0 65.0	44.0 44.0 44.0	19.0 19.0 20.0	27.0 27.0 30.0	52.0 52.0 55.0	0.510 0.540 0.550
36 38 39	IS-75 36M BS IS-75 38M BS IS-75 39M BS	68.0 70.0 73.0	44.0 54.0 54.0	50.0 20.0 20.0	30.0 30.0 30.0	55.0 55.0 55.0	0.610 0.700 0.725
40 41 42	IS-75 40M BS IS-75 41M BS IS-75 42M BS	73.0 75.0 78.0	54.0 54.0 54.0	20.0 22.0 22.0	30.0 33.0 33.0	55.0 58.0 58.0	0.725 0.750 0.750
43 46	IS-75 43M BS IS-75 46M BS	78.0 83.0	54.0 54.0	22.0 23.0	33.0 35.0	58.0 60.0	0.750 0.940

1" METRIC BISQUARE
A/F mm	MODEL NO.	D mm	d mm	TH mm	C mm	OAL mm	Wt. Kg.
32 33 34	IS-100 32M BS IS-100 33M BS IS-100 34M BS	65.0 65.0 65.0	54.0 54.0 54.0	21.0 21.0 21.0	28.0 28.0 31.0	58.0 58.0 61.0	0.86 0.86 0.90
35 36 38	IS-100 35M BS IS-100 36M BS IS-100 38M BS	68.0 71.0 74.0	54.0 54.0 54.0	21.0 25.0 25.0	31.0 31.0 35.0	61.0 61.0 65.0	0.90 0.92 1.15
39 40 41	IS-100 39M BS IS-100 40M BS IS-100 41M BS	74.0 77.0 77.0	54.0 54.0 54.0	25.0 25.0 28.0	35.0 35.0 35.0	65.0 65.0 65.0	1.15 1.16 1.16
42 43 46	IS-100 42M BS IS-100 43M BS IS-100 46M BS	80.0 80.0 86.0	54.0 54.0 54.0	28.0 28.0 28.0	35.0 40.0 40.0	65.0 70.0 70.0	1.36 1.46 1.50
50 51 54	IS-100 50M BS IS-100 51M BS IS-100 54M BS	90.0 93.0 98.0	54.0 54.0 54.0	28.0 28.0 28.0	43.0 43.0 47.0	73.0 73.0 77.0	1.70 1.80 2.25
55 57 60	IS-100 55M BS IS-100 57M BS IS-100 60M BS	98.0 103.0 106.0	54.0 86.0 86.0	30.0 30.0 32.0	47.0 47.0 53.0	77.0 77.0 83.0	2.25 2.95 3.20
65	IS-100 65M BS	112.0	86.0	38.0	56.0	86.0	3.65

Fractional Bi Square

3/4" FRACTIONAL BISQUARE
A/F inch	MODEL NO.	D inch	d inch	TH inch	C inch	OAL inch	Wt. lbs.
1.1/4 1.5/16 1.3/8	IS-75 20F BS IS-75 21F BS IS-75 22F BS	2.440 2.559 2.677	1.732 1.732 1.732	0.748 0.748 0.787	1.047 1.047 1.165	2.047 2.047 2.165	1.120 1.210 1.340
1.7/16 1.1/2 1.9/16	IS-75 23F BS IS-75 24F BS IS-75 25F BS	2.755 2.755 2.874	2.125 2.125 2.125	0.787 0.787 0.787	1.165 1.165 1.165	2.165 2.165 2.165	1.495 1.540 1.595
1.5/8 1.11/16 1.3/4	IS-75 26F BS IS-75 27F BS IS-75 28F BS	2.952 3.070 3.149	2.125 2.125 2.125	0.787 0.866 0.866	1.283 1.283 1.283	2.283 2.283 2.283	1.650 1.650 1.760
1.13/16 1.7/8	IS-75 29F BS IS-75 30F BS	3.267 3.346	2.125 2.125	0.905 0.905	1.362 1.362	2.362 2.362	2.070 2.110

1" FRACTIONAL BISQUARE
A/F inch	MODEL NO.	D inch	d inch	TH inch	C inch	OAL inch	Wt. lbs.
1.1/4 1.5/16 1.3/8	IS-100 20F BS IS-100 21F BS IS-100 22F BS	2.559 2.559 2.677	2.125 2.125 2.125	0.826 0.826 0.826	1.141 1.141 1.220	2.283 2.283 2.401	1.89 1.89 1.98
1.7/16 1.1/2 1.9/16	IS-100 23F BS IS-100 24F BS IS-100 25F BS	2.795 2.913 2.834	2.125 2.125 2.125	0.984 0.984 0.984	1.220 1.377 1.377	2.401 2.559 2.559	2.02 2.53 2.55
1.5/8 1.11/16 1.3/4	IS-100 26F BS IS-100 27F BS IS-100 28F BS	3.031 3.149 3.267	2.125 2.125 2.125	1.102 1.102 1.102	1.377 1.574 1.574	2.559 2.755 2.755	2.55 3.30 3.30
1.13/16 1.7/8 2	IS-100 29F BS IS-100 30F BS IS-100 32F BS	3.385 3.503 3.661	2.125 2.125 2.125	1.102 1.102 1.102	1.574 1.574 1.692	2.755 2.755 2.874	3.52 3.52 3.96
2.1/16 2.1/8 2.3/16	IS-100 33F BS IS-100 34F BS IS-100 35F BS	3.779 3.779 3.937	2.125 2.125 2.125	1.102 1.102 1.181	1.692 1.850 1.850	2.874 3.031 3.031	4.95 4.95 6.49
2.1/4 2.3/8 2.1/2	IS-100 36F BS IS-100 38F BS IS-100 40F BS	4.055 4.173 4.409	3.385 3.385 3.385	1.181 1.259 1.259	2.007 2.086 2.204	3.188 3.267 3.385	6.49 7.04 8.47

Metric Deep BiSquare

3/4" METRIC DEEP BISQUARE
A/F mm	MODEL NO.	D mm	d mm	TH mm	C mm	OAL mm	Wt. Kg.
32 33 34	ISD-75 32M BS ISD-75 33M BS ISD-75 34M BS	62.0 65.0 65.0	44.0 44.0 44.0	19.0 19.0 20.0	65.0 65.0 65.0	90.0 90.0 90.0	0.910 0.940 0.950
36 38 39	ISD-75 36M BS ISD-75 38M BS ISD-75 39M BS	68.0 70.0 73.0	44.0 54.0 54.0	20.0 20.0 20.0	65.0 65.0 65.0	90.0 90.0 90.0	1.010 1.100 1.125
40 41 42	ISD-75 40M BS ISD-75 41M BS ISD-75 42M BS	73.0 75.0 78.0	54.0 54.0 54.0	20.0 22.0 22.0	65.0 65.0 70.0	90.0 90.0 90.0	1.125 1.150 1.150
43 46	ISD-75 43M BS ISD-75 46M BS	78.0 83.0	54.0 54.0	22.0 23.0	70.0 75.0	95.0 100.0	1.150 1.340

1" METRIC DEEP BISQUARE
A/F mm	MODEL NO.	D mm	d mm	TH mm	C mm	OAL mm	Wt. Kg.
32 33 34	ISD-100 32M BS ISD-100 33M BS ISD-100 34M BS	65.0 65.0 68.0	54.0 54.0 54.0	21.0 21.0 21.0	80.0 80.0 80.0	110.0 110.0 110.0	1.46 1.46 1.50
35 36 38	ISD-100 35M BS ISD-100 36M BS ISD-100 38M BS	68.0 71.0 74.0	54.0 54.0 54.0	21.0 25.0 25.0	80.0 80.0 80.0	110.0 110.0 110.0	1.50 1.52 1.75
39 40 41	ISD-100 39M BS ISD-100 40M BS ISD-100 41M BS	74.0 77.0 77.0	54.0 54.0 54.0	25.0 25.0 28.0	80.0 80.0 80.0	110.0 110.0 110.0	1.75 1.76 1.76
42 43 46	ISD-100 42M BS ISD-100 43M BS ISD-100 46M BS	80.0 80.0 86.0	54.0 54.0 54.0	28.0 28.0 28.0	80.0 80.0 80.0	110.0 110.0 110.0	1.96 2.16 2.30
50 51 54	ISD-100 50M BS ISD-100 51M BS ISD-100 54M BS	90.0 93.0 98.0	54.0 54.0 54.0	28.0 28.0 28.0	80.0 80.0 80.0	110.0 110.0 110.0	2.50 2.60 2.95
55 57 60	ISD-100 55M BS ISD-100 57M BS ISD-100 60M BS	98.0 103.0 106.0	54.0 86.0 86.0	30.0 30.0 32.0	80.0 80.0 100.0	>110.0 110.0 130.0	2.95 3.65 4.00
65	ISD-100 65M BS	112.0	86.0	38.0	100.0	130.0	4.55

Fractional Deep BiSquare

3/4" FRACTIONAL DEEP BISQUARE
A/F inch	MODEL NO.	D inch	d inch	TH inch	C inch	OAL inch	Wt. lbs.
1.1/4 1.5/16 1.3/8	ISD-75 20F BS ISD-75 21F BS ISD-75 22F BS	2.440 2.559 2.677	1.732 1.732 1.732	0.748 0.748 0.787	2.543 2.543 2.543	3.543 3.543 3.543	2.000 2.090 2.220
1.7/16 1.1/2 1.9/16	ISD-75 23F BS ISD-75 24F BS ISD-75 25F BS	2.755 2.755 2.874	2.125 2.125 2.125	0.787 0.787 0.787	2.543 2.543 2.543	3.543 3.543 3.543	2.375 2.420 2.475
1.5/8 1.11/16 1.3/4	ISD-75 26F BS ISD-75 27F BS ISD-75 28F BS	2.952 3.070 3.149	2.125 2.125 2.125	0.787 0.866 0.866 .	2.543 2.740 2.740	3.543 3.740 3.740	2.530 2.530 2.685
1.13/16 1.7/8	ISD-75 29F BS ISD-75 30F BS	3.267 3.346 .	2.125 2.125	0.905 0.905	2.937 2.937	3.937 3.937	2.950 3.050

1" FRACTIONAL DEEP BISQUARE
A/F inch	MODEL NO.	D inch	d inch	TH inch	C inch	OAL inch	Wt. lbs.
1.1/4 1.5/16 1.3/8	ISD-100 20F BS ISD-100 21F BS ISD-100 22F BS	2.559 2.559 2.677	2.125 2.125 2.125	0.826 0.826 0.826	3.149 3.149 3.149	4.330 4.330 4.330	3.21 3.21 3.30
1.7/16 1.1/2 1.9/16	ISD-100 23F BS ISD-100 24F BS ISD-100 25F BS	2.795 2.913 2.834	2.125 2.125 2.125	0.984 0.984 0.984	3.149 3.149 3.149	4.330 4.330 4.330	3.34 3.85 3.87
1.5/8 1.11/16 1.3/4	ISD-100 26F BS ISD-100 27F BS ISD-100 28F BS	3.031 3.149 3.267	2.125 2.125 2.125	1.102 1.102 1.102	3.149 3.149 3.149	4.330 4.330 4.330	3.387 4.75 4.84
1.13/16 1.7/8 2	ISD-100 29F BS ISD-100 30F BS ISD-100 32F BS	3.385 3.503 3.661	2.125 2.125 2.125	1.102 1.102 1.102	3.149 3.149 3.149	4.330 4.330 4.330	5.06 5.28 5.72
2.1/16 2.1/8 2.3/16	ISD-100 33F BS ISD-100 34F BS ISD-100 35F BS	3.779 3.779 3.937	2.125 2.125 2.125	1.102 1.102 1.181	3.149 3.149 3.149	4.330 4.330 4.330	6.49 6.49 8.03
2.1/4 2.3/8 2.1/2	ISD-100 36F BS ISD-100 38F BS ISD-100 40F BS	4.055 4.173 4.409	3.385 3.385 3.385	1.181 1.259 1.259	3.149 3.937 3.937	4.330 5.118 5.118	8.03 8.80 10.01

THIN WALL SIZES

Metric Hexagon

3/8" METRIC HEXAGON THINWALL
A/F mm	MODEL NO.	D mm	d mm	TH mm	C mm	OAL mm	Wt. Kg.
8 10 11	IS-38 T 8M IS-38 T 10M IS-38 T 11M	12.3 14.8 16.1	20.0 20.0 20.0	6.0 7.0 8.0	13.0 13.0 13.0	27.0 27.0 27.0	0.020 0.020 0.025
13 17 19	IS-38 T 13M IS-38 T 17M IS-38 T 19M	18.6 23.7 26.3	22.0 22.0 22.0	10.0 12.0 12.0	16.0 18.0 18.0	30.0 32.0 32.0	0.035 0.055 0.065

1/2" METRIC HEXAGON THINWALL
A/F mm	MODEL NO.	D mm	d mm	TH inch	C mm	OAL mm	Wt. Kg.
15 16 17	IS-50 T 15M IS-50 T 16M IS-50 T 17M	22.0 23.3 24.5	30.0 30.0 30.0	11.0 11.0 12.0	19.0 19.0 19.0	36.0 36.0 36.0	0.120 0.120 0.120
18 19 21	IS-50 T 18M IS-50 T 19M IS-50 T 21M	26.0 27.0 29.5	30.0 30.0 30.0	13.0 13.0 14.0	19.0 19.0 21.0	36.0 36.0 38.0	0.120 0.120 0.160

3/4" METRIC HEXAGON THINWALL
A/F mm	MODEL NO.	D mm	d mm	TH mm	C mm	OAL mm	Wt. Kg.
17 19 21	IS-75 T 17M IS-75 T 19M IS-75 T 21M	27.9 30.4 32.9	44.0 44.0 44.0	12.0 12.0 13.0	20.0 20.0 23.0	45.0 45.0 48.0	0.350 0.350 0.360
22 23 24	IS-75 T 22M IS-75 T 23M IS-75 T 24M	34.3 35.5 36.8	44.0 44.0 44.0	13.0 13.0 16.0	23.0 23.0 23.0	48.0 48.0 48.0	0.360 0.370 0.380
26 27 28	IS-75 T 26M IS-75 T 27M IS-75 T 28M	38.5 40.5 41.8	44.0 44.0 44.0	16.0 16.0 16.0	23.0 23.0 23.0	48.0 48.0 48.0	0.380 0.380 0.390
30 32 33	IS-75 T 30M IS-75 T 32M IS-75 T 33M	44.4 46.8 48.0	44.0 44.0 44.0	18.0 19.0 19.0	27.0 27.0 30.0	52.0 52.0 55.0	0.405 0.460 0.460
34 36 38	IS-75 T 34M IS-75 T 36M IS-75 T 38M	49.3 51.9 54.4	44.0 44.0 44.0	20.0 20.0 20.0	30.0 31.0 34.0	55.0 56.0 59.0	0.470 0.555 0.560
41 42	IS-75 T 41M IS-75 T 42M	58.4 59.4	44.0 44.0	22.0 22.0	34.0 34.0	59.0 59.0	0.600 0.600
43 46	IS-75 T 43M IS-75 T 46M	60.4 64.0	44.0 44.0	22.0 23.0	39.0 39.0	64.0 64.0	0.600 0.760

1" METRIC HEXAGON THINWALL
A/F mm	MODEL NO.	D mm	d mm	TH mm	C mm	OAL mm	Wt. Kg.
22 23 24	IS-100 T 22M IS-100 T 23M IS-100 T 24M	35.6 37.0 38.3	54.0 54.0 54.0	14.0 14.0 16.0	21.0 21.0 26.0	51.0 51.0 56.0	0.60 0.60 0.60
25 26 27	IS-100 T 25M IS-100 T 26M IS-100 T 27M	39.5 40.8 42.0	54.0 54.0 54.0	16.0 16.0 16.0	26.0 26.0 26.0	56.0 56.0 56.0	0.60 0.62 0.65
28 29 30	IS-100 T 28M IS-100 T 29M IS-100 T 30M	43.3 44.5 45.9	54.0 54.0 54.0	16.0 16.0 21.0	26.0 29.0 29.0	56.0 58.0 58.0	0.65 0.65 0.65
31 32 33	IS-100 T 31M IS-100 T 32M IS-100 T 33MM	47.0 48.3 49.5	54.0 54.0 54.0	16.0 16.0 21.0	29.0 29.0 29.0	56.0 58.0 58.0	0.65 0.65 0.65
34 35 36	IS-100 T 34M IS-100 T 35M IS-100 T 36M	50.8 52.0 53.4	54.0 54.0 54.0	21.0 21.0 25.0	31.0 31.0 31.0	61.0 61.0 61.0	0.67 0.67 0.72
37 38 39	IS-100 T 37M IS-100 T 38M IS-100 T 39M	54.0 55.9 57.1	54.0 54.0 54.0	25.0 25.0 25.0	31.0 35.0 35.0	61.0 65.0 65.0	0.72 0.87 0.90
40 41 42	IS-100 T 40M IS-100 T 41M IS-100 T 42M	58.1 59.9 60.9	54.0 54.0 54.0	25.0 28.0 28.0	35.0 35.0 35.0	65.0 65.0 65.0	0.90 0.90 0.90
43 44	IS-100 T 43M IS-100 T 44M	61.9 63.4	54.0 54.0	28.0 28.0	40.0 40.0	70.0 70.0	1.00 1.00
45 46	IS-100 T 45M IS-100 T 46M	64.6 65.9	54.0 54.0	28.0 28.0	40.0 40.0	70.0 70.0	1.15 1.15

Fractional Hexagon

3/8" FRACTIONAL HEXAGON THINWALL
A/F inch	MODEL NO.	D inch	d inch	TH inch	C inch	OAL inch	Wt. lbs.
5/16 3/8 7/16	IS-38 T 05F IS-38 T 06F IS-38 T 07F	0.484 0.555 0.633	0.748 0.748 0.748	0.236 0.275 0.314	0.511 0.511 0.511	1.062 1.062 1.062	0.045 0.045 0.065
1/2 9/16 5/8	IS-38 T 08F IS-38 T 09F IS-38 T 10F	0.732 0.799 0.877	0.866 0.866 0.866	0.354 0.393 0.433	0.630 0.630 0.630	1.181 1.181 1.181	0.080 0.100 0.110

1/2" FRACTIONAL HEXAGON THINWALL
A/F inch	MODEL NO.	D inch	d inch	TH inch	C inch	OAL inch	Wt. lbs.
9/16 5/8 11/16	IS-50 T 09F IS-50 T 10F IS-50 T 11F	0.826 0.905 0.984	0.984 1.181 1.181	0.393 0.433 0.472	0.669 0.748 0.748	1.338 1.417 1.417	0.165 0.240 0.265
3/4 13/16 15/16	IS-50 T 12F IS-50 T 13F IS-50 T 15F	1.062 1.141 1.318	1.181 1.181 1.181	0.511 0.551 0.551	0.748 0.826 0.905	1.417 1.496 1.614	0.265 0.350 0.420

3/4" FRACTIONAL HEXAGON
A/F inch	MODEL NO.	D inch	d inch	TH inch	C inch	OAL inch	Wt. lbs.
11/16 3/4 13/16	IS-75 T 11F IS-75 T 12F IS-75 T 13F	1.122 1.196 1.279	1.732 1.732 1.732	0.472 0.472 0.511	0.771 0.771 0.889	1.771 1.771 1.889	0.750 0.760 0.770
7/8 15/16 1	IS-75 T 14F IS-75 T 15F IS-75 T 16F	1.358 1.448 1.515	1.732 1.732 1.732	0.511 0.629 0.629	0.889 0.889 0.889	1.889 1.889 1.889	0.770 0.770 0.770
1.1/16 1.1/8 1.3/16	IS-75 T 17F IS-75 T 18F IS-75 T 19F	1.594 1.673 1.748	1.732 1.732 1.732	0.629 0.708 0.708	0.889 0.889 1.047	1.889 1.889 2.047	0.770 0.835 0.835
1.1/4 1.5/16 1.3/8	IS-75 T 20F IS-75 T 21F IS-75 T 22F	1.830 1.909 1.988	1.732 1.732 1.732	0.748 0.748 0.787	1.204 1.165 1.165	2.204 2.165 2.165	0.880 0.925 1.100
1.7/16 1.1/2 1.9/16	IS-75 T 23F IS-75 T 24F IS-75 T 25F	2.066 2.141 2.224	1.732 1.732 1.732	0.787 0.787 0.787	1.204 1.322 1.322	2.204 2.322 2.322	1.100 1.210 1.210
1.5/8 1.11/16	IS-75 T 26F IS-75 T 27F	2.299 2.377	1.732 1.732	0.866 0.866	1.322 1.519	2.322 2.519	1.210 1.265
1.3/4 1.13/16	IS-75 T 28F IS-75 T 29F	2.460 2.519	1.732 1.732	0.866 0.905	1.519 1.519	2.519 2.519	1.430 1.595

1" FRACTIONAL HEXAGON THINWALL
A/F inch	MODEL NO.	D inch	d inch	TH inch	C inch	OAL inch	Wt. lbs.
7/8 15/16 1	IS-100 T 14F IS-100 T 15F IS-100 T 16F	1.417 1.507 1.574	2.125 2.125 2.125	0.629 0.629 0.629	1.023 1.023 1.023	2.204 2.204 2.204	1.12 1.12 1.12
1.1/16 1.1/18 1.3/8	IS-100 T 17F IS-100 T 18F IS-100 T 19F	1.653 1.728 1.807	2.125 2.125 2.125	0.629 0.629 0.629	1.023 1.023 1.141	2.204 2.204 2.285	1.43 1.43 1.43
1.1/4 1.5/16 1.3/8	IS-100 T 20F IS-100 T 21F IS-100 T 22F	1.889 1.968 2.047	2.125 2.125 2.125	0.826 0.826 0.826	1.141 1.141 1.220	2.285 2.285 2.401	1.43 1.43 1.48
1.7/16 1.1/2 1.9/16	IS-100 T 23F IS-100 T 24F IS-100 T 25F	2.125 2.200 2.283	2.125 2.125 2.125	0.984 0.984 0.984	1.220 1.220 1.220	2.401 2.559 2.559	1.84 1.81 2.00
1.5/8 1.11/16	IS-100 T 26F IS-100 T 27F	2.358 2.437	2.125 2.125	1.102 1.102	1.377 1.574	2.559 2.755	2.00 2.20
1.3/4 1.13/16	IS-100 T 28F IS-100 T 29F	2.519 2.594	2.125 2.125	1.102 1.102	1.574 1.574	2.755 2.755	2.53 2.53

Metric Deep Hexagon

3/4" METRIC DEEP HEXAGON THINWALL
A/F mm	MODEL NO.	D mm	d mm	TH mm	C mm	OAL mm	Wt. Kg.
17 19 21	ISD-75 T 17M ISD-75 T 19M ISD-75 T 21M	27.9 30.4 32.9	44.0 44.0 44.0	12.0 12.0 13.0	50.0 50.0 50.0	75.0 75.0 75.0	0.570 0.570 0.590
22 23 24	ISD-75 T 22M ISD-75 T 23M ISD-75 T 24M	34.3 35.5 36.8	44.0 44.0 44.0	13.0 13.0 16.0	65.0 65.0 65.0	90.0 90.0 90.0	0.640 0.640 0.670
26 27 28	ISD-75 T 26M ISD-75 T 27M ISD-75 T 28M	38.5 40.5 41.8	44.0 44.0 44.0	16.0 16.0 16.0	65.0 65.0 65.0	90.0 90.0 90.0	0.670 0.670 0.670
30 32 33	ISD-75 T 30M ISD-75 T 32M ISD-75 T 33M	44.4 46.8 48.0	44.0 44.0 44.0	18.0 19.0 19.0	65.0 65.0 65.0	90.0 90.0 90.0	0.740 0.760 0.760
34 36 38	ISD-75 T 34M ISD-75 T 36M ISD-75 T 38M	49.3 51.9 54.4	44.0 44.0 44.0	20.0 20.0 20.0	65.0 65.0 65.0	90.0 90.0 90.0	0.760 0.825 0.850
41 42	ISD-75 T 41M ISD-75 T 42M	58.4 59.4	44.0 44.0	22.0 22.0	65.0 70.0	90.0 95.0	0.875 1.005
43 46	ISD-75 T 43M ISD-75 T 46M	60.4 64.0	44.0 44.0	22.0 23.0	70.0 75.0	95.0 100.0	1.050 1.275

1" METRIC DEEP HEXAGON THINWALL
A/F mm	MODEL NO.	D mm	d mm	TH mm	C mm	OAL mm	Wt. Kg.
22 23 24	ISD-100 T 22M ISD-100 T 23M ISD-100 T 24M	35.6 37.0 38.3	54.0 54.0 54.0	14.0 14.0 16.0	80.0 80.0 80.0	110.0 110.0 110.0	1.05 1.05 1.05
25 26 27	ISD-100 T 25M ISD-100 T 26M ISD-100 T 27M	39.5 40.8 42.0	54.0 54.0 54.0	16.0 16.0 16.0	80.0 80.0 80.0	110.0 110.0 110.0	1.10 1.10 1.10
28 29 30	ISD-100 T 28M ISD-100 T 29M ISD-100 T 30M	43.3 44.5 45.9	54.0 54.0 54.0	16.0 16.0 21.0	80.0 80.0 80.0	110.0 110.0 110.0	1.15 1.15 1.22
31 32 33	ISD-100 T 31M ISD-100 T 32M ISD-100 T 33M	47.0 48.3 49.5	54.0 54.0 54.0	21.0 21.0 21.0	80.0 80.0 80.0	110.0 110.0 110.0	1.21 1.25 1.27
34 35 36	ISD-100 T 34M ISD-100 T 35M ISD-100 T 36M	50.8 52.0 53.4	54.0 54.0 54.0	21.0 21.0 25.0	80.0 80.0 80.0	110.0 110.0 110.0	1.30 1.30 1.30
37 38 39	ISD-100 T 37M ISD-100 T 38M ISD-100 T 39M	54.0 55.9 57.1	54.0 54.0 54.0	25.0 25.0 25.0	80.0 80.0 80.0	110.0 110.0 110.0	1.45 1.50 1.60
40 41 42	ISD-100 T 40M ISD-100 T 41M ISD-100 T 42M	58.1 59.9 60.9	54.0 54.0 54.0	25.0 28.0 28.0	80.0 80.0 80.0	110.0 110.0 110.0	1.60 1.60 1.65
43 44	ISD-100 T 43M ISD-100 T 44M	61.9 63.4	54.0 54.0	28.0 28.0	80.0 80.0	110.0 110.0	1.70 1.70
45 46	ISD-100 T 45M ISD-100 T 46M	64.6 65.9	54.0 54.0	28.0 28.0	80.0 80.0	110.0 110.0	1.70 2.15

Fractional Deep Hexagon

3/4" FRACTIONAL DEEP HEXAGON THINWALL
A/F inch	MODEL NO.	D inch	d inch	TH inch	C inch	OAL inch	Wt. lbs.
11/16 3/4 13/16	ISD-75 T 11F ISD-75 T 12F ISD-75 T 13F	1.122 1.196 1.279	1.732 1.732 1.732	0.472 0.472 0.511	1.952 1.952 1.952	2.952 2.952 2.952	1.210 1.210 1.430
7/8 15/16 1	ISD-75 T 14F ISD-75 T 15F ISD-75 T 16F	1.358 1.448 1.515	1.732 1.732 1.732	0.511 0.629 0.629	2.543 2.543 2.543	3.543 3.543 3.543	1.540 1.700 1.785
1.1/16 1.1/8 1.3/16	ISD-75 T 17F ISD-75 T 18F ISD-75 T 19F	1.594 1.673 1.748	1.732 1.732 1.732	0.629 0.708 0.708	2.543 2.543 2.543	3.543 3.543 3.543	1.785 1.785 1.870
1.1/4 1.5/16 1.3/8	ISD-75 T 20F ISD-75 T 21F ISD-75 T 22F	1.830 1.909 1.988	1.732 1.732 1.732	0.748 0.748 0.787	2.543 2.543 2.543	3.543 3.543 3.543	1.980 1.980 2.200
1.7/16 1.1/2 1.9/16	ISD-75 T 23F ISD-75 T 24F ISD-75 T 25F	2.066 2.141 2.224	1.732 1.732 1.732	0.787 0.787 0.787	2.543 2.543 2.543	3.543 3.543 3.543	2.530 2.530 2.530
1.5/8 1.11/16	ISD-75 T 26F ISD-75 T 27F	2.299 2.377	1.732 1.732	0.866 0.866	2.543 2.740	3.543 3.740	2.530 2.530
1.3/4 1.13/16	ISD-75 T 28F ISD-75 T 29F	2.460 2.519	1.732 1.732	0.866 0.905	2.937 2.937	3.937 3.937	2.530 2.530

1" FRACTIONAL DEEP HEXAGON THINWALL
A/F inch	MODEL NO.	D inch	d inch	TH inch	C inch	OAL inch	Wt. lbs.
7/8 15/16 1	ISD-100 T 14F ISD-100 T 15F ISD-100 T 16F	1.417 1.507 1.574	2.125 2.125 2.125	0.629 0.629 0.629	3.149 3.149 3.149	4.330 4.330 4.330	2.21 2.21 2.21
1.1/16 1.1/18 1.3/8	ISD-100 T 17F ISD-100 T 18F ISD-100 T 19F	1.653 1.728 1.807	2.125 2.125 2.125	0.629 0.629 0.826	3.149 3.149 3.149	4.330 4.330 4.330	2.53 2.53 2.70
1.1/4 1.5/16 1.3/8	ISD-100 T 20F ISD-100 T 21F ISD-100 T 22F	1.889 1.968 2.047	2.125 2.125 2.125	0.826 0.826 0.826	3.149 3.149 3.149	4.330 4.330 4.330	2.75 2.95 2.86
1.7/16 1.1/2 1.9/16	ISD-100 T 23F ISD-100 T 24F ISD-100 T 25F	2.125 2.200 2.283	2.125 2.125 2.125	0.984 0.984 0.984	3.149 3.149 3.149	4.330 4.330 4.330	3.22 3.30 3.52
1.5/8 1.11/16	ISD-100 T 26F ISD-100 T 27F	2.358 2.437	2.125 2.125	1.102 1.102	3.149 3.149	4.330 4.330	3.52 3.52
1.3/4 1.13/16	ISD-100 T 28F ISD-100 T 29F	2.519 2.594	2.125 2.125	1.102 1.102	3.149 3.149	4.330 4.330	3.74 3.74

Impact Sockets

THIN WALL SIZES

Metric Hexagon

Electronic Tube Expansion

Boiler Tube Expander

Condenser Tube Expanders 800 Series

Telescopic Shaft

Impact Sockets

THIN WALL SIZES

Metric Hexagon

Other Pages

Electronic Tube Expansion

Boiler Tube Expander

Condenser Tube Expanders 800 Series

Telescopic Shaft
