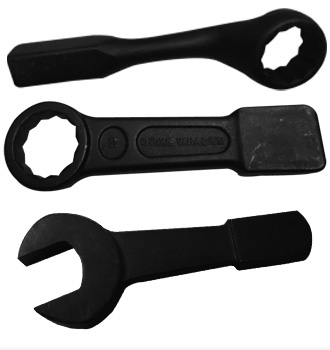

Slugging Wrenches

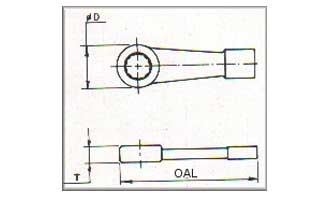

Straight Ring (Bi-Hex) Type
METRIC | INCHES | DIMENSION | ||||
A/F (in MM) | MODEL NO | A/F (in MM) | MODEL NO | T MM | D MM | OAL MM |
24 | SBH-24M | 15/16" | SBH-15F | 17 | 47 | 180 |
27 | SBH-27M | 1.1/16" | SBH-17F | 17 | 47 | 180 |
30 | SBH-30M | 1.1/8" | SBH-18F | 18 | 54 | 195 |
32 | SBH-32M | 1.1/4" | SBH-20F | 18 | 54 | 195 |
34 | SBH-34M | 1.5/16" | SBH-21F | 18 | 54 | 195 |
- | 1.3/8" | SBH-22F | 18 | 54 | 195 | |
36 | SBH-36M | 1.7/16" | SBH-23F | 20 | 60 | 200 |
38 | SBH-38M | 1.1/2" | SBH-24F | 22 | 66 | 220 |
41 | SBH-41M | 1.5/8" | SBH-26F | 22 | 66 | 220 |
- | 1.11/16" | SBH-27F | 25 | 75 | 230 | |
46 | SBH-46M | 1.13/16" | SBH-29F | 25 | 75 | 230 |
- | 1.7/8" | SBH-30F | 25 | 75 | 230 | |
50 | SBH-50M | 2" | SBH-32F | 25 | 80 | 245 |
- | 2.1/16" | SBH-33F | 25 | 80 | 245 | |
55 | SBH-55M | 2.3/16" | SBH-35F | 26 | 88 | 260 |
- | 2.1/4" | SBH-36F | 26 | 88 | 260 | |
60 | SBH-60M | 2.3/8" | SBH-38F | 28 | 94 | 270 |
- | 2.7/16" | SBH-39F | 28 | 94 | 270 | |
65 | SBH-65M | 2.9/16" | SBH-41F | 30 | 104 | 290 |
- | 2.5/8" | SBH-42F | 30 | 104 | 290 | |
70 | SBH-70M | 2.3/4" | SBH-44F | 35 | 110 | 320 |
- | 2.13/16" | SBH-45F | 35 | 110 | 320 | |
75 | SBH-75M | 2.15/16" | SBH-47F | 35 | 110 | 320 |
- | 3" | SBH-48F | 35 | 110 | 320 | |
80 | SBH-80M | 3.1/8" | SBH-50F | 38 | 126 | 350 |
85 | SBH-85M | 3.3/8" | SBH-54F | 38 | 126 | 350 |
90 | SBH-90M | 3.1/2" | SBH-56F | 42 | 152 | 385 |
95 | SBH-95M | 3.3/4" | SBH-60F | 42 | 152 | 385 |
- | 3.7/8" | SBH-62F | 46 | 155 | 415 | |
100 | SBH-100M | - | 46 | 155 | 415 | |
105 | SBH-105M | 4.1/8" | SBH-66F | 50 | 172 | 420 |
110 | SBH-110M | 4.1/4" | SBH-68F | 50 | 172 | 420 |
115 | SBH-115M | 4.1/2" | SBH-72F | 50 | 172 | 420 |
- | 4.5/8" | SBH-74F | 56 | 194 | 485 | |
120 | SBH-120M | - | 56 | 194 | 485 | |
- | 4.7/8" | SBH-78F | 56 | 194 | 485 | |
- | 5" | SBH-80F | 60 | 205 | 515 | |
130 | SBH-130M | - | 60 | 205 | 515 | |
- | 5.1/4" | SBH-84F | 60 | 205 | 515 | |
135 | SBH-135M | 5.3/8" | SBH-86F | 60 | 205 | 515 |
- | 5.5/8" | SBH-90F | 65 | 230 | 575 | |
145 | SBH-145M | 5.3/4" | SBH-92F | 65 | 230 | 575 |
150 | SBH-150M | - | 65 | 230 | 575 | |
- | 6" | SBH-96F | 65 | 230 | 575 | |
155 | SBH-155M | 6.1/8" | SBH-98F | 65 | 230 | 575 |
165 | SBH-165M | 6.1/2" | SBH-104F | 70 | 270 | 645 |
170 | SBH-170M | - | 70 | 270 | 645 | |
175 | SBH-175M | 6.7/8" | SBH-110F | 70 | 270 | 645 |
180 | SBH-180M | - | 70 | 270 | 645 | |
- | 7.1/4" | SBH-116F | 75 | 295 | 690 | |
- | 7.5/8" | SBH-122F | 75 | 295 | ||
200 | SBH-200M | 7.7/8" | SBH-126F | 75 | 295 | 690 |
- | 8" | SBH-128F | 75 | 295 | 690 | |
- | 8.3/8" | SBH-134F | 80 | 325 | 735 | |
215 | SBH-215M | - | 80 | 325 | 735 | |
- | 8.3/4" | SBH-140F | 80 | 325 | 735 | |
230 | SBH-230M | 9.1/8" | SBH-146F | 80 | 325 | 735 |

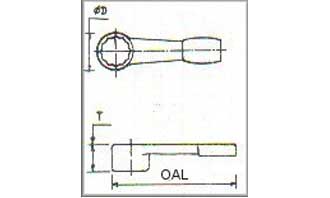

BOX (Bi-Hex) Type
METRIC | INCHES | DIMENSION | ||||
A/F (in MM) | MODEL NO | A/F (in MM) | MODEL NO | T MM | D MM | OAL MM |
24 | BBH-24M | 15/16" | BBH-15F | 40 | 47 | 180 |
27 | BBH-27M | 1.1/16" | BBH-17F | 40 | 47 | 180 |
30 | BBH-30M | 1.1/8" | BBH-18F | 40 | 54 | 195 |
32 | BBH-32M | 1.1/4" | BBH-20F | 45 | 54 | 195 |
34 | BBH-34M | 1.5/16" | BBH-21F | 45 | 54 | 195 |
- |
| 1.3/8" | BBH-22F | 45 | 54 | 195 |
36 | BBH-36M | 1.7/16" | BBH-23F | 45 | 60 | 200 |
38 | BBH-38M | 1.1/2" | BBH-24F | 45 | 66 | 220 |
41 | BBH-41M | 1.5/8" | BBH-26F | 45 | 66 | 220 |
- |
| 1.11/16" | BBH-27F | 50 | 75 | 230 |
46 | BBH-46M | 1.13/16" | BBH-29F | 50 | 75 | 230 |
- |
| 1.7/8" | BBH-30F | 50 | 75 | 230 |
50 | BBH-50M | 2" | BBH-32F | 50 | 80 | 245 |
- |
| 2.1/16" | BBH-33F | 50 | 80 | 245 |
55 | BBH-55M | 2.3/16" | BBH-35F | 60 | 88 | 260 |
- |
| 2.1/4" | BBH-36F | 60 | 88 | 260 |
60 | BBH-60M | 2.3/8" | BBH-38F | 60 | 94 | 270 |
- |
| 2.7/16" | BBH-39F | 60 | 94 | 270 |
65 | BBH-65M | 2.9/16" | BBH-41F | 70 | 104 | 290 |
- |
| 2.5/8" | BBH-42F | 70 | 104 | 290 |
70 | BBH-70M | 2.3/4" | BBH-44F | 70 | 110 | 320 |
- |
| 2.13/16" | BBH-45F | 70 | 110 | 320 |
75 | BBH-75M | 2.15/16" | BBH-47F | 80 | 110 | 320 |
- |
| 3" | BBH-48F | 80 | 110 | 320 |
80 | BBH-80M | 3.1/8" | BBH-50F | 80 | 126 | 350 |
85 | BBH-85M | 3.3/8" | BBH-54F | 90 | 126 | 350 |
90 | BBH-90M | 3.1/2" | BBH-56F | 90 | 152 | 385 |
95 | BBH-95M | 3.3/4" | BBH-60F | 95 | 152 | 385 |
- |
| 3.7/8" | BBH-62F | 95 | 155 | 415 |
100 | BBH-100M | - |
| 95 | 155 | 415 |
105 | BBH-105M | 4.1/8" | BBH-66F | 105 | 172 | 420 |
110 | BBH-110M | 4.1/4" | BBH-68F | 105 | 172 | 420 |
115 | BBH-115M | 4.1/2" | BBH-72F | 105 | 172 | 420 |
- |
| 4.5/8" | BBH-74F | 105 | 194 | 485 |
120 | BBH-120M | - |
| 105 | 194 | 485 |
- |
| 4.7/8" | BBH-78F | 115 | 194 | 485 |
- |
| 5" | BBH-80F | 115 | 205 | 515 |
130 | BBH-130M | - |
| 115 | 205 | 515 |
- |
| 5.1/4" | BBH-84F | 115 | 205 | 515 |
135 | BBH-135M | 5.3/8" | BBH-86F | 115 | 205 | 515 |
- |
| 5.5/8" | BBH-90F | 125 | 230 | 575 |
145 | BBH-145M | 5.3/4" | BBH-92F | 125 | 230 | 575 |
150 | BBH-150M | - |
| 135 | 230 | 575 |
- |
| 6" | BBH-96F | 135 | 230 | 575 |
155 | BBH-155M | 6.1/8" | BBH-98F | 135 | 230 | 575 |
165 | BBH-165M | 6.2/2" | BBH-104F | 150 | 270 | 645 |
170 | BBH-170M | - |
| 150 | 270 | 645 |
175 | BBH-175M | 6.7/8" | BBH-110F | 150 | 270 | 645 |
180 | BBH-180M | - |
| 150 | 270 | 645 |
- |
| 7.1/4" | BBH-116F | 150 | 295 | 690 |
- |
| 7.5/8" | BBH-122F | 150 | 295 | 690 |
200 | BBH-200M | 7.7/8" | BBH-126F | 150 | 295 | 690 |
- |
| 8" | BBH-128F | 150 | 295 | 690 |
- |
| 8.3/8" | BBH-134F | 160 | 325 | 735 |
215 | BBH-215M | - |
| 160 | 325 | 735 |
- |
| 8.3/4" | BBH-140F | 160 | 325 | 735 |
230 | BBH-230M | 9.1/8" | BBH-146F | 160 | 325 | 735 |

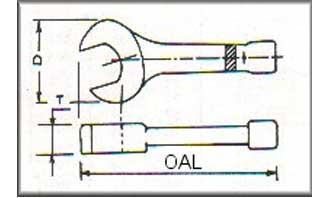

Open Jaw Type
METRIC | INCHES | DIMENSION | ||||
A/F (in MM) | MODEL NO | A/F (in MM) | MODEL NO | T MM | D MM | OAL MM |
24 | SOJ-24M | 1.5/16" | SOJ-15F | 17 | 58 | 175 |
27 | SOJ-27M | 1.1/16" | SOJ-17F | 17 | 58 | 175 |
30 | SOJ-30M< | 1.1/8" | SOJ-18F | 18 | 66 | 190 |
32 | SOJ-32M | 1.1/4" | SOJ-20F | 18 | 66 | 190 |
34 | SOJ-34M | 1.5/16" | SOJ-21F | 18 | 73 | 200 |
- |
| 1.3/8" | SOJ-22F | 18 | 73 | 200 |
36 | SOJ-36M | 1.7/16" | SOJ-23F | 20 | 78 | 205 |
38 | SOJ-38M | 1.1/2" | SOJ-24F | 20 | 90 | 225 |
41 | SOJ-41M | 1.5/8" | SOJ-26F | 20 | 90 | 225 |
- |
| 1.11/16" | SOJ-27F | 20 | 90 | 225 |
46 | SOJ-46M | 1.13/16" | SOJ-29F | 22 | 100 | 245 |
- |
| 1.7/8" | SOJ-30F | 22 | 110 | 270 |
50 | SOJ-50M | 2" | SOJ-32F | 22 | 110 | 270 |
- |
| 2.1/16" | SOJ-33F | 25 | 120 | 300 |
55 | SOJ-55M | 2.3/16" | SOJ-35F | 25 | 120 | 300 |
- |
| 2.1/4" | SOJ-36F | 25 | 130 | 300 |
60 | SOJ-60M | 2.3/8" | SOJ-38F | 25 | 130 | 310 |
- |
| 2.7/16" | SOJ-39F | 30 | 142 | 340 |
65 | SOJ-65M | 2.9/16" | SOJ-41F | 30 | 142 | 340 |
- |
| 2.5/8" | SOJ-42F | 32 | 156 | 370 |
70 | SOJ-70M | 2.3/4" | SOJ-44F | 32 | 156 | 370 |
- |
| 2.13/16" | SOJ-45F | 32 | 164 | 370 |
75 | SOJ-75M | 2.15/16" | SOJ-47F | 32 | 164 | 370 |
- |
| 3" | SOJ-48F | 32 | 164 | 370 |
80 | SOJ-80M | 3.1/8" | SOJ-50F | 35 | 175 | 395 |
85 | SOJ-85M | 3.3/8" | SOJ-54F | 35 | 175 | 395 |
90 | SOJ-90M | 3.1/2" | SOJ-56F | 40 | 197 | 440 |
95 | SOJ-95M | 3.3/4" | SOJ-60F | 40 | 197 | 440 |
- |
| 3.7/8" | SOJ-62F | 48 | 230 | 480 |
100 | SOJ-100M | - |
| 48 | 230 | 480 |
105 | SOJ-105M | 4.1/8" | SOJ-66F | 48 | 230 | 480 |
110 | SOJ-110M | 4.1/4" | SOJ-68F | 50 | 238 | 505 |
115 | SOJ-115M | 4.1/2" | SOJ-72F | 56 | 250 | 505 |
- |
| 4.5/8" | SOJ-74F | 56 | 258 | 530 |
120 | SOJ-120M | - |
| 56 | 258 | 530 |
- |
| 4.7/8" | SOJ-78F | 56 | 278 | 530 |
- |
| 5" | SOJ-80F | 56 | 278 | 560 |
130 | SOJ-130M | - |
| 56 | 278 | 560 |
- |
| 5.1/4" | SOJ-84F | 56 | 278 | 560 |
135 | SOJ-135M | 5.3/8" | SOJ-86F | 56 | 278 | 560 |
- |
| 5.5/8" | SOJ-90F | 62 | 308 | 630 |
145 | SOJ-145M | 5.3/4" | SOJ-92F | 62 | 308 | 630 |
150 | SOJ-150M | - |
| 62 | 308 | 630 |
- |
| 6" | SOJ-96F | 62 | 308 | 630 |
155 | SOJ-155M | 6.1/8" | SOJ-98F | 62 | 308 | 630 |
165 | SOJ-165M | 6.2/2" | SOJ-104F | 70 | 345 | 705 |
170 | SOJ-170M | - |
| 70 | 345 | 705 |
175 | SOJ-175M | 6.7/8" | SOJ-110F | 70 | 345 | 705 |
180 | SOJ-180M | - |
| 70 | 345 | 705 |
- |
| 7.1/4" | SOJ-116F | 70 | 345 | 705 |
- |
| 7.5/8" | SOJ-122F | 70 | 385 | 760 |
200 | SOJ-200M | 7.7/8" | SOJ-126F | 75 | 405 | 760 |
- |
| 8" | SOJ-128F | 75 | 405 | 760 |
- |
| 8.3/8" | SOJ-134F | 80 | 425 | 830 |
215 | SOJ-215M | - |
| 80 | 425 | 830 |
- |
| 8.3/4" | SOJ-140F | 80 | 445 | 830 |
230 | SOJ-230M | 9.1/8" | SOJ-146F | 80 | 475 | 830 |

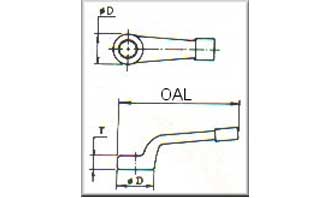

Offset Type
METRIC | INCHES | DIMENSION | ||||
A/F (in MM) | MODEL NO | A/F (in MM) | MODEL NO | T MM | D MM | OAL MM |
24 | SOS-24M | 15/16" | SOS-15F | 22 | 47 | 260 |
27 | SOS-27M | 1.1/16" | SOS-17F | 22 | 47 | 260 |
30 | SOS-30M | 1.1/8" | SOS-18F | 25 | 54 | 270 |
32 | SOS-32M | 1.1/4" | SOS-20F | 25 | 54 | 270 |
34 | SOS-34M | 1.5/16" | SOS-21F | 25 | 54 | 270 |
- |
| 1.3/8" | SOS-22F | 28 | 54 | 270 |
36 | SOS-36M | 1.7/16" | SOS-23F | 28 | 60 | 270 |
38 | SOS-38M | 1.1/2" | SOS-24F | 30 | 66 | 310 |
41 | SOS-41M | 1.5/8" | SOS-26F | 30 | 66 | 340 |
- |
| 1.11/16" | SOS-27F | 31 | 75 | 340 |
46 | SOS-46M | 1.13/16" | SOS-29F | 31 | 75 | 340 |
- |
| 1.7/8" | SOS-30F | 31 | 75 | 340 |
50 | SOS-50M | 2" | SOS-32F | 35 | 80 | 350 |
- |
| 2.1/16" | SOS-33F | 35 | 80 | 350 |
55 | SOS-55M | 2.3/16" | SOS-35F | 35 | 88 | 360 |
- |
| 2.1/4" | SOS-36F | 35 | 88 | 360 |
60 | SOS-60M | 2.3/8" | SOS-38F | 41 | 94 | 380 |
- |
| 2.7/16" | SOS-39F | 41 | 94 | 380 |
65 | SOS-65M | 2.9/16" | SOS-41F | 44 | 104 | 380 |
- |
| 2.5/8" | >SOS-42F | 44 | 104 | 380 |
70 | SOS-70M | 2.3/4" | SOS-44F | 47 | 110 | 400 |
- |
| 2.13/16" | SOS-45F | 47 | 110 | 400 |
75 | SOS-75M | 2.15/16" | SOS-47F | 50 | 110 | 400 |
- |
| 3" | SOS-48F | 50 | 110 | 400 |
80 | SOS-80M | 3.1/8" | SOS-50F | 50 | 126 | 420 |
85 | SOS-85M | 3.3/8" | SOS-54F | 50 | 126 | 450 |
90 | SOS-90M | 3.1/2" | SOS-56F | 50 | 152 | 450 |
95 | SOS-95M | 3.3/4" | SOS-60F | 55 | 152 | 480 |
- |
| 3.7/8" | SOS-62F | 55 | 155 | 480 |
100 | SOS-100M | - |
| 55 | 155 | 500 |
105 | SOS-105M | 4.1/8" | SOS-66F | 55 | 172 | 520 |
110 | SOS-110M | 4.1/4" | SOS-68F | 55 | 172 | 520 |
115 | SOS-115M | 4.1/2" | SOS-72F | 60 | 172 | 520 |
- |
| 4.5/8" | SOS-74F | 60 | 194 | 550 |
120 | SOS-120M | - |
| - | - | - |
- |
| 4.7/8" | SOS-78F | - | - | - |
- |
| 5" | SOS-80F | - | - | - |
130 | SOS-130M | - |
| - | - | - |
- |
| 5.1/4" | SOS-84F | - | - | - |
135 | SOS-135M | 5.3/8" | SOS-86F | - | - | - |
- |
| 5.5/8" | SOS-90F | - | - | - |
145 | SOS-145M | 5.3/4" | SOS-92F | - | - | - |
150 | SOS-150M | - |
| - | - | - |
- |
| 6" | SOS-96F | - | - | - |
155 | SOS-155M | 6.1/8" | SOS-98F | - | - | - |
165 | SOS-165M | 6.2/2" | SOS-104F | - | - | - |
170 | SOS-170M | - |
| - | - | - |
175 | SOS-175M | 6.7/8" | SOS-110F | - | - | - |
180 | SOS-180M | - |
| - | - | - |
- |
| 7.1/4" | SOS-116F | - | - | - |
- |
| 7.5/8" | SOS-122F | - | - | - |
200 | SOS-200M | 7.7/8" | SOS-126F | - | - | - |
- |
| 8" | SOS-128F | - | - | - |
- |
| 8.3/8" | SOS-134F | - | - | - |
215 | SOS-215M | - |
| - | - | - |
- |
| 8.3/4" | SOS-140F | - | - | - |
230 | SOS-230M | 9.1/8" | SOS-146F | - | - | - |

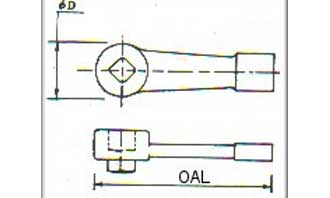

Square Drive Type
MODEL NO | SQ. DRIVE | T(MM) | D(MM) | OAL(MM) |
SSD-75 | 3/4" | 80 | 62 | 210 |
SSD-100 | 1" | 90 | 76 | 290 |
SSD-150 | 1.1/2" | 110 | 116 | 380 |
