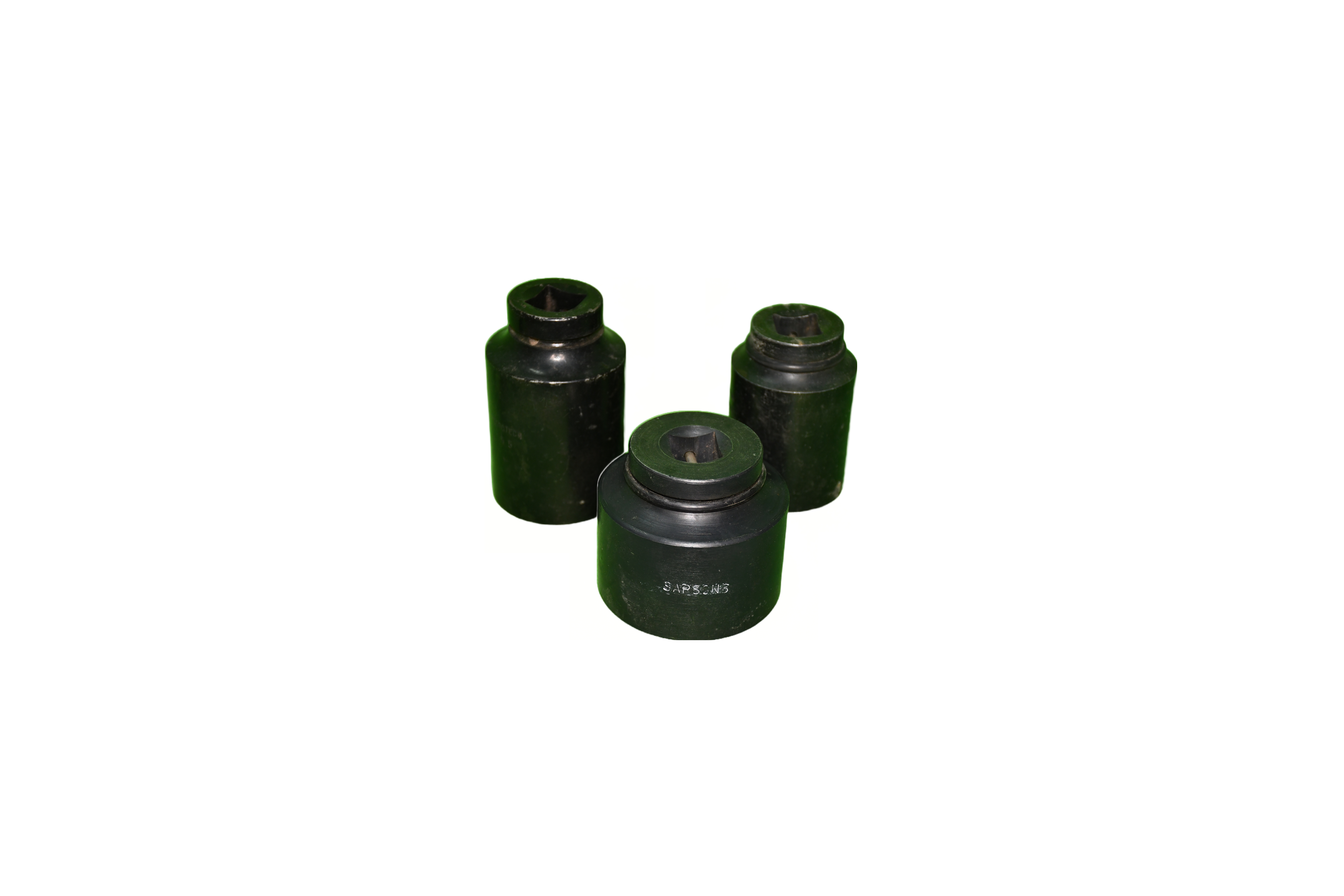

Spline Drive Impact Sockets
A/F Across Flats Size - Nominal
D Max. Outside dia. Socket end
d Max. Outside dia. Sq. Drive end
OAL Overall Length - Nominal
TH Depth of Socket Form
C Depth of Bolt Clearance
Metric # 5 Spline Drive
A/F mm | MODEL NO. | D mm | d mm | TH mm | C mm | OAL mm |
19 20 21 | SPLD-19M SPLD-20M SPLD-21M | 48.0 48.0 48.0 | 56.0 56.0 56.0 | 14.0 14.0 14.0 | 25.0 25.0 25.0 | 70.0 70.0 70.0 |
22 23 24 | SPLD-22M SPLD-23M SPLD-24M | 48.0 48.0 50.0 | 56.0 56.0 56.0 | 14.0 14.0 16.0 | 25.0 25.0 25.0 | 70.0 70.0 70.0 |
25 26 27 | SPLD-25M SPLD-26M SPLD-27M | 50.0 52.0 52.0 | 56.0 56.0 56.0 | 16.0 16.0 16.0 | 25.0 25.0 25.0 | 70.0 70.0 70.0 |
28 29 30 | SPLD-28M SPLD-29M SPLD-30M | 52.0 54.0 54.0 | 56.0 56.0 56.0 | 16.0 16.0 21.0 | 25.0 25.0 25.0 | 70.0 70.0 70.0 |
31 32 33 | SPLD-31M SPLD-32M SPLD-33M | 60.0 60.0 60.0 | 56.0 56.0 56.0 | 21.0 21.0 21.0 | 25.0 25.0 25.0 | 75.0 75.0 75.0 |
34 35 36 | SPLD-34M SPLD-35M SPLD-36M | 60.0 60.0 60.0 | 56.0 56.0 56.0 | 21.0 21.0 25.0 | 32.0 32.0 32.0 | 77.0 77.0 80.0 |
37 38 39 | SPLD-37M SPLD-38M SPLD-39M | 63.0 63.0 67.0 | 56.0 56.0 56.0 | 25.0 25.0 25.0 | 35.0 35.0 35.0 | 80.0 80.0 80.0 |
40 41 42 | SPLD-40M SPLD-41M SPLD-42M | 67.0 67.0 67.0 | 56.0 56.0 56.0 | 25.0 28.0 28.0 | 35.0 35.0 35.0 | 80.0 80.0 80.0 |
43 44 45 | SPLD-43M SPLD-44M SPLD-45M | 67.0 73.0 73.0 | 56.0 56.0 56.0 | 28.0 28.0 28.0 | 39.0 39.0 39.0 | 84.0 84.0 84.0 |
46 47 48 | SPLD-46M SPLD-47M SPLD-48M | 73.0 73.0 73.0 | 56.0 56.0 56.0 | 28.0 28.0 28.0 | 39.0 39.0 43.0 | 84.0 84.0 88.0 |
49 50 51 | SPLD-49M SPLD-50M SPLD-51M | 73.0 82.0 82.0 | 56.0 56.0 56.0 | 28.0 28.0 28.0 | 43.0 43.0 43.0 | 88.0 88.0 88.0 |
52 54 55 | SPLD-52M SPLD-54M SPLD-55M | 82.0 82.0 82.0 | 56.0 56.0 56.0 | 28.0 28.0 30.0 | 43.0 48.0 48.0 | 88.0 93.0 93.0 |
56 57 58 | SPLD-56M SPLD-57M SPLD-58M | 88.0 88.0 88.0 | 86.0 86.0 86.0 | 30.0 30.0 30.0 | 51.0 51.0 51.0 | 96.0 96.0 96.0 |
59 60 61 | SPLD-59M SPLD-60M SPLD-61M | 88.0 88.0 88.0 | 86.0 86.0 86.0 | 32.0 32.0 32.0 | 51.0 51.0 53.0 | 96.0 96.0 98.0 |
62 65 67 | SPLD-62M SPLD-65M SPLD-67M | 88.0 100.0 100.0 | 86.0 86.0 86.0 | 32.0 38.0 38.0 | 55.0 55.0 57.0 | 100.0 100.0 102.0 |
70 73 75 | SPLD-70M SPLD-73M SPLD-75M | 100.0 105.0 105.0 | 86.0 86.0 86.0 | 40.0 40.0 42.0 | 57.0 63.0 63.0 | 102.0 108.0 108.0 |
76 80 | SPLD-76M SPLD-80M | 109.0 115.0 | 86.0 86.0 | 42.0 44.0 | 69.0 69.0 | 114.0 114.0 |
Metric Deep # 5 Spline Drive
A/F
mm | MODEL
NO. | D
mm | d
mm | TH
mm | C
mm | OAL
mm |
21
22
23 | SPLD-21MD
SPLD- 22MD
SPLD- 23MD | 48.0
48.0
48.0 | 56.0
56.0
56.0 | 14.0
14.0
14.0 | 115.0
115.0
115.0 | 160.0
160.0
160.0 |
24
25
26 | SPLD-
24MD
SPLD- 25MD
SPLD- 26MD | 50.0
50.0
50.0 | 56.0
56.0
56.0 | 16.0
16.0
16.0 | 115.0
115.0
115.0 | 160.0
160.0
160.0 |
27
28
29 | SPLD-
27MD
SPLD- 28MD
SPLD- 29MD | 52.0
52.0
54.0 | 56.0
56.0
56.0 | 16.0
16.0
16.0 | 115.0
115.0
115.0 | 160.0
160.0
160.0 |
30
31
32 | SPLD-
30MD
SPLD- 31MD
SPLD- 32MD | 54.0
60.0
60.0 | 56.0
56.0
2.362 | 21.0
21.0
21.0 | 115.0
115.0
115.0 | 160.0
160.0
160.0 |
33
34
35 | SPLD-
33MD
SPLD- 34MD
SPLD- 35MD | 60.0
60.0
60.0 | 56.0
56.0
56.0 | 21.0
21.0
21.0 | 115.0
115.0
115.0 | 160.0
160.0
160.0 |
36
37
38 | SPLD-
36MD
SPLD- 37MD
SPLD- 38MD | 63.0
63.0
63.0 | 56.0
56.0
56.0 | 25.0
25.0
25.0 | 115.0
115.0
115.0 | 160.0
160.0
160.0 |
39
40
41 | SPLD-
39MD
SPLD- 40MD
SPLD- 41MD | 67.0
67.0
67.0 | 56.0
56.0
56.0 | 25.0
25.0
28.0 | 115.0
115.0
115.0 | 160.0
160.0
160.0 |
42
43
44 | SPLD-
42MD
SPLD- 43MD
SPLD- 44MD | 67.0
67.0
73.0 | 56.0
56.0
56.0 | 28.0
28.0
28.0 | 115.0
115.0
115.0 | 160.0
160.0
160.0 |
45
46
47 | SPLD-
45MD
SPLD- 46MD
SPLD- 47MD | 73.0
73.0
73.0 | 56.0
56.0
56.0 | 28.0
28.0
28.0 | 115.0
115.0
115.0 | 160.0
160.0
160.0 |
48
49
50 | SPLD-
48MD
SPLD- 49MD
SPLD- 50MD | 73.0
73.0
82.0 | 56.0
56.0
56.0 | 28.0
28.0
28.0 | 115.0
115.0
115.0 | 160.0
160.0
160.0 |
51
52 | SPLD-
51MD
SPLD- 52MD | 82.0
82.0 | 56.0
56.0 | 28.0
28.0 | 115.0
115.0 | 160.0
160.0 |
A/F
inch | MODEL
NO. | D
inch | d
inch | TH
inch | C
inch | OAL
inch |
3/4
13/16
7/8 | SPLD-12F
SPLD- 13F
SPLD- 14F | 1.889
1.889
1.889 | 2.362
2.362
2.362 | 0.551
0.551
0.551 | 0.984
0.984
0.984 | 2.755
2.755
2.755 |
15/16
1
1.1/16 | SPLD-
15F
SPLD- 16F
SPLD- 17F | 1.968
1.968
2.047 | 2.362
2.362
2.362 | 0.629
0.629
0.629 | 0.984
0.984
0.984 | 2.755
2.755
2.755 |
1.1/8
1.3/16
1.1/4 | SPLD-
18F
SPLD- 19F
SPLD- 20F | 2.047
2.125
2.362 | 2.362
2.362
2.362 | 0.629
0.826
0.826 | 0.984
0.984
1.181 | 2.755
2.755
2.952 |
1.5/16
1.3/8
1.7/16 | SPLD-
21F
SPLD- 22F
SPLD- 23F | 2.362
2.362
2.480 | 2.362
2.362
2.362 | 0.826
0.826
0.984 | 1.181
1.259
1.377 | 2.952
3.031
3.149 |
1.1/2
1.9/16
1.5/8 | SPLD-
24F
SPLD- 25F
SPLD- 26F | 2.480
2.637
2.637 | 2.362
2.362
2.362 | 0.984
0.984
1.102 | 1.377
1.377
1.377 | 3.149
3.149
3.149 |
1.11/16
1.3/4
1.13/16 | SPLD-
27F
SPLD- 28F
SPLD- 29F | 2.637
2.874
2.874 | 2.362
2.362
2.362 | 1.102
1.102
1.102 | 1.535
1.535
1.535 | 3.307
3.307
3.307 |
1.7/8
1.15/16
2 | SPLD-
30F
SPLD- 31F
SPLD- 32F | 2.874
2.874
3.228 | 2.362
2.362
2.362 | 1.102
1.102
1.102 | 1.535
1.692
1.692 | 3.307
3.464
3.464 |
2.1/16
2.1/8
2.3/16 | SPLD-
33F
SPLD- 34F
SPLD- 35F | 3.228
3.228
3.228 | 2.362
2.362
2.362 | 1.102
1.102
1.181 | 1.692
1.889
1.889 | 3.464
3.661
3.661 |
2.1/4
2.5/16
2.3/8 | SPLD-
36F
SPLD- 37F
SPLD- 38F | 3.464
3.464
3.464 | 3.385
3.385
3.385 | 1.181
1.181
1.259 | 2.007
2.007
2.007 | 3.779
3.779
3.779 |
2.7/16
2.1/2
2.9/16 | SPLD-
39F
SPLD- 40F
SPLD- 41F | 3.464
3.937
3.937 | 3.385
3.385
3.385 | 1.259
1.259
1.496 | 2.086
2.086
2.086 | 3.937
3.937
3.937 |
2.5/8
2.11/16
2.3/4 | SPLD-
42F
SPLD- 43F
SPLD- 44F | 3.937
3.937
3.937 | 3.385
3.385
3.385 | 1.496
1.496
1.574 | 2.244
2.244
2.244 | 4.015
4.015
4.015 |
2.13/16
2.7/8
2.15/16 | SPLD-
45F
SPLD- 46F
SPLD- 47F | 4.133
4.133
4.133 | 3.385
3.385
3.385 | 1.574
1.574
1.653 | 2.244
2.480
2.480 | 4.015
4.251
4.251 |
3
3.1/16
3.1/8 | SPLD-
48F
SPLD- 49F
SPLD- 50F | 4.291
4.291
4.291 | 3.385
3.385
3.385 | 1.653
1.653
1.653 | 2.716
2.716
2.716 | 4.488
4.488
4.488 |
3.1/4
3.5/16
3.3/8 | SPLD-
52F
SPLD- 53F
SPLD- 54F | 5.039
5.039
5.039 | 3.385
3.385
3.385 | 1.732
1.732
1.850 | 3.149
3.149
3.149 | 4.921
4.921
4.921 |
3.1/2
3.5/8
3.3/4 | SPLD-
56F
SPLD- 58F
SPLD- 60F | 2.118
5.275
5.354 | 3.385
3.385
3.385 | 1.850
1.968
2.125 | 3.149
3.149
3.149 | 4.921
4.921
4.921 |
3.7/8
4 | SPLD-
62F
SPLD- 64F | 5.433
5.511 | 3.385
3.385 | 2.125
2.125 | 3.149
3.149 | 4.921
4.921 |
Fractional Deep # 5 Spline Drive
A/F
inch | MODEL
NO. | D
inch | d
inch | TH
inch | C
inch | OAL
inch |
3/4
13/16
7/8 | SPLD-12
FD
SPLD-13 FD
SPLD-14 FD | 1.889
1.889
1.889 | 2.362
2.362
2.362 | 0.551
0.551
0.551 | 4.527
4.527
4.527 | 6.299
6.299
6.299 |
15/16
1
1.1/16 | SPLD-
15 FD
SPLD- 16 FD
SPLD- 17 FD | 1.968
1.968
2.047 | 2.362
2.362
2.362 | 0.629
0.629
0.629 | 4.527
4.527
4.527 | 6.299
6.299
6.299 |
1.1/8
1.3/16
1.1/4 | SPLD-
18 FD
SPLD- 19 FD
SPLD- 20 FD | 2.047
2.125
2.362 | 2.362
2.362
2.362 | 0.629
0.826
0.826 | 4.527
4.527
4.527 | 6.299
6.299
6.299 |
1.5/16
1.3/8
1.7/16 | SPLD-
21 FD
SPLD- 22 FD
SPLD- 23 FD | 2.362
2.362
2.480 | 2.362
2.362
2.362 | 0.826
0.826
0.984 | 4.527
4.527
4.527 | 6.299
6.299
6.299 |
1.1/2
1.9/16
1.5/8 | SPLD-
24 FD
SPLD- 25 FD
SPLD- 26 FD | 2.480
2.637
2.637 | 2.632
2.632
2.632 | 0.984
0.984
1.102 | 4.527
4.527
4.527 | 6.299
6.299
6.299 |
1.11/16
1.3/4
1.13/16 | SPLD-
27 FD
SPLD- 28 FD
SPLD- 29 FD | 2.637
2.874
2.874 | 2.632
2.632
2.632 | 1.102
1.102
1.102 | 4.527
4.527
4.527 | 6.299
6.299
6.299 |
1.7/8
1.15/16
2 | SPLD-
30 FD
SPLD- 31 FD
SPLD- 32 FD | 2.874
2.874
3.228 | 2.632
2.632
2.632 | 1.102
1.102
1.102 | 4.527
4.527
4.527 | 6.299
6.299
6.299 |
2.1/16
2.1/8
2.3/16 | SPLD-
33 FD
SPLD- 34 FD
SPLD- 35 FD | 3.288
3.288
3.288 | 2.362
2.362
2.362 | 1.102
1.102
1.181 | 4.527
4.527
4.527 | 6.299
6.299
6.299 |
2.1/4
2.5/16
2.3/8 | SPLD-
36 FD
SPLD- 37 FD
SPLD- 38 FD | 3.464
3.464
3.464 | 3.385
3.385
3.385 | 1.81
1.81
1.259 | 4.527
4.527
4.527 | 6.299
6.299
6.299 |
2.7/16
2.1/2
2.9/16 | SPLD-
39 FD
SPLD- 40 FD
SPLD- 41 FD | 3.464
3.937
3.937 | 3.385
3.385
3.385 | 1.259
1.259
1.496 | 4.527
4.527
4.527 | 6.299
6.299
6.299 |
2.5/8
2.11/16 | SPLD-
42 FD
SPLD- 43 FD | 3.937
3.937 | 3.385
3.385 | 1.496
1.496 | 4.527
4.527 | 6.299
6.299 |
