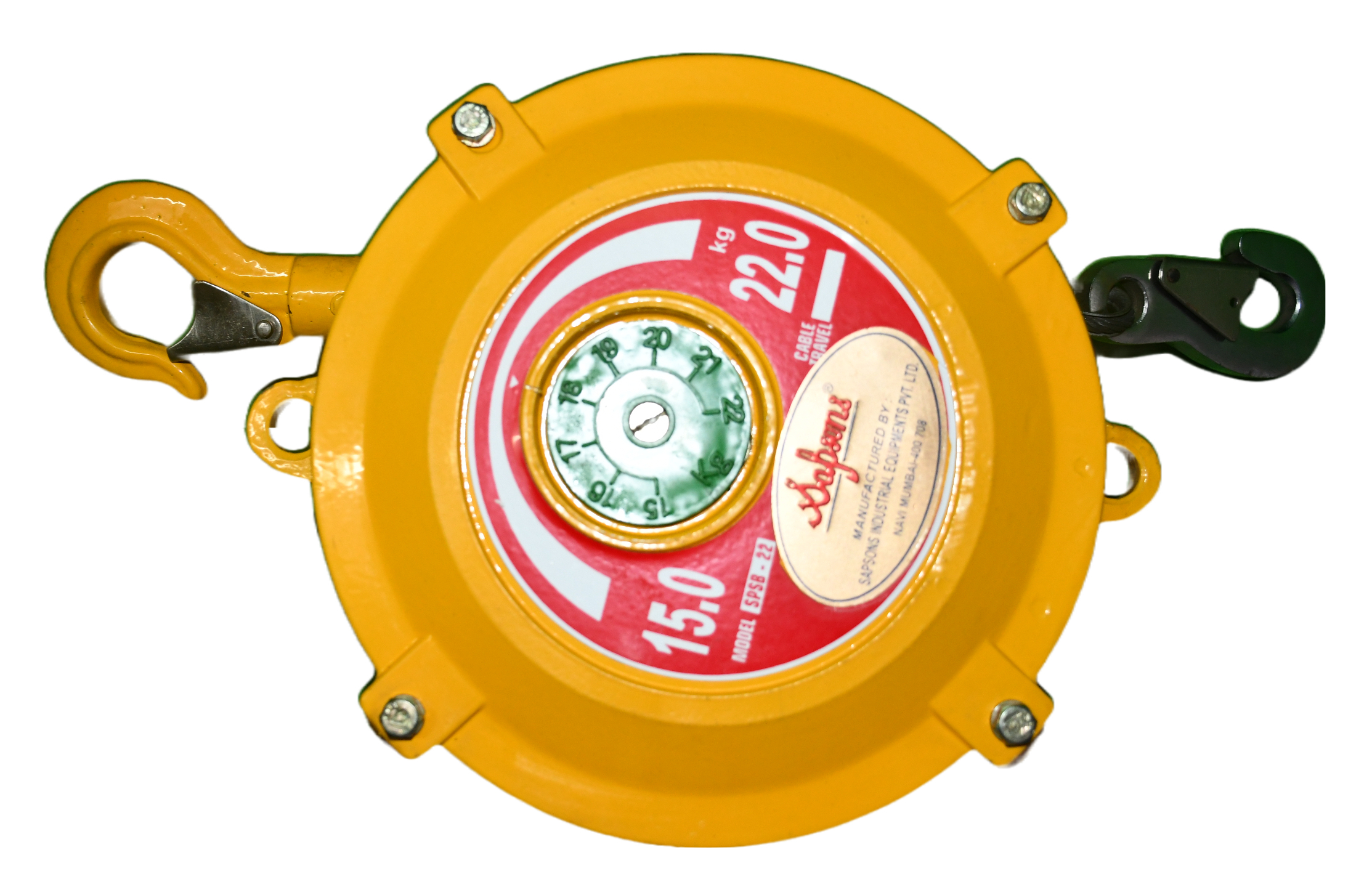

Spring Balancers
Technical Specifications
MODEL NO. | BALANCING CAPACITY | TRAVEL IN MTR. | ROPE DIA (MM) | UNIT WEIGHT IN KG. | |
MIN. KGS. | MAX.KGS | ||||
SB-1 | 0.25 | 1.5 | 1 | 3 | 1.2 |
SB-2 | 1 | 2 | 1 | 3 | 1.2 |
SB-3 | 1 | 3 | 1.3 | 3.5 | 2.3 |
SB-5 | 2.5 | 5 | 1.3 | 3.5 | 2.3 |
SB-5S | 1 | 5 | 1.5 | 3.5 | 2.3 |
SB-9 | 4.5 | 9 | 1.3 | 4 | 4.2 |
SB-15 | 9 | 15 | 1.3 | 4 | 4.5 |
SB-22 | 15 | 22 | 1.5 | 5 | 9 |
SB-30 | 22 | 30 | 1.5 | 5 | 9.5 |
SB-40 | 30 | 40 | 1.5 | 5 | 10.5 |
SB-50 | 40 | 50 | 1.5 | 5 | 11.2 |
SB-60 | 50 | 60 | 1.5 | 5 | 12.6 |
SB-70 | 60 | 70 | 1.5 | 5 | 13.6 |
SB-85 | 70 | 85 | 1.5 | 6 | 16 |
SB-100 | 85 | 100 | 1.5 | 6 | 19 |
SB-120 | 100 | 120 | 1.5 | 6 | 20.5 |
SB-140 | 120 | 140 | 1.8 | 6 | |
SB-170 | 140 | 170 | 1.8 | 6 | |
SB-200 | 170 | 200 | 1.8 | 6 | |
