SAPSONS Stud Tighteners also known as Stud Drivers is used for speedier tightening of threaded studs with the help of an impact wrench. This is ideal for use in the assembly and maintenance of engines. The range covers stud diameters M5 to M36 (metric) & 1/4" (6.35mm) to 1.1/2" (38.1) UNF/BSF (SAE/BRITISH) in 3/8" to 1" square drives. The tool has a cross hole and groove for locking pin and ring arrangement. Stud Tighteners to suit BSW, BSF, UNC OR UNF Threaded studs also available on request. Extra long Deep Stud tighteners also can be supplied on request. FEATURES: Offered in various ranges from 3/8" to 1" Sq.Drive Sizes from M-5 to M-42 1/4" to1.1/2" in UNC/UNF/BSF/BSW

Torque Multiplier is a tool, for applying higher torque with low efforts. SAPSONS Torque Multipliers are compact alloy steel, epicyclical gear units, designed for tightening and loosening of nuts and bolts by providing very high torque economically, is available up to Max. Torque capacity of 35000 Lb.ft. Torque Multiplier is interposed between a standard Torque Wrench and the Socket, and the reaction bar/bracket is allowed to rest against any convenient solid object. The operator then has effective leverage of Torque Wrench 5 times or 25 times or 125 times. The wrench being used in to the input side of the gear unit. All standard single stage gear units are having the multiplication ratio of 5:1. The gear units are compounded to give 25:1 or 125:1 ratio, provides the equivalent of 4 extra manpower to the user. Output Torque = Input Torque X Multiplication Factor. In limited work place, use of Torque Multiplier generates high Torque, with precision and ease. In many cases it eliminates dismantling of nearby equipment. Throughout the world thousands of Torque Multipliers are used everyday for maintenance job, Production and Servicing, where high torque is applied. FEATURES: * Various Models available ranging from 170 to 4845 Kgm. * Compact design, smooth in operation. * Models available with multiplication ratio of 5:1, 25:1 and 125:1. * Standard slide mount Reaction Bar and slotted bracket adopts readily to most applications. * Special reaction arms are available for difficult applications. BENEFITS: * Cover small bolting as well as the larger application because of wide range of available models. * Uniformity of bolting, minimum flange distortion and less likelihood of leaks. * Cuts down Manpower requirements, reduces opertor fatigue, as a result saves MONEY. * In high Torque applications, final torques are achieved with very low input torque. With higher multiplication ratio, very less operator fatigue. * No special reaction bars required for blind flanges, Heat Exchangers, channel covers etc. * Capable to provide reaction bar for any applications. ADVANTAGES: * One man can tighten or loosen the toughest nut or bolt with complete safety. * Compact efficient design provides greater ease and safety in handling and operating. * Designed to be used with standard tools, hand torque and air-driven non-impact type wrenches. * Planetary gears and all alloy steel construction assure minimum mechanical loss through distortion. * A standard sliding reaction bar meets practically all normal requirements.

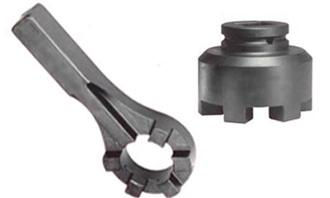

Castellated slugging wrenches and sockets are heavy-duty tools engineered for high-impact applications where traditional wrenches cannot deliver the required torque. These tools feature a castellated (slotted) head design, specifically intended to fit over slotted or castle nuts that require alignment for cotter pins or safety wire locking. Built from premium-grade alloy steel, these tools are designed to be struck with a hammer (slugged) to generate greater torque, making them ideal for loosening or tightening large, stubborn fasteners in demanding industrial environments. The castellated profile ensures a secure grip on specialized nuts, preventing slippage and damage during operation. These tools are commonly used in power plants, refineries, petrochemical facilities, mining operations, and heavy equipment maintenance where reliability and safety are critical. Castellated Slugging Wrenches : Available from 2' to 6' Sizes Castellated Sockets : Available in following sizes : 1.1/2 in. Sq. Drive 2.1/2 in. Sq. Drive 3.1/2 in. Sq. Drive

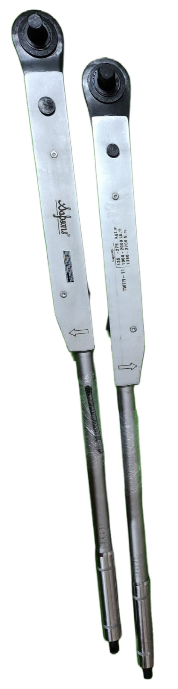

Torque wrench is one of the very important tool, which is basically precision instrument, on which the quality of our job/ product depends. SAPSONS torque wrenches are manufactured , keeping this basic requirement in mind, and we take special care and precautions, from manufacturing to final testing and acceptance of the same, to ensure that there is no compromise to its quality and reliability. SAPSONS Adjustable / Preset click type Torque Wrenches are compact in design. Critical parts are made out of forged steel for long life and calibrated to an accuracy of + 3%. Available from 2.5 to 2700 NM Torque Capacity covered in 12 models with built in Ratchet Mechanism and Non - Ratchet Mechanism. Available in three different types as follows , depending upon the application, all supplied with + 3% accuracy : 1. Adjustable Click type torque wrench without Ratchet mechanism - where only final tightening is done with Torque wrench. 2. Adjustable Click type torque wrench with in-built Ratchet mechanism - where from initial to final tightening is done with Torque wrench, and for high productivity. 3. Fixed type torque wrench with or without Ratchet mechanism - where only pre-set torque is applied, repeatedly. TORQUE WRENCHES CAN BE SELECTED BASED ON THE REQUIRED TORQUE TO BE APPLIED, FROM OUR BELOW CHART... APPLICATIONS : Power Plants, Refineries, Petrochemicals, Fertilizers, Heavy Engineering Industries, Shipyards and Ship Building, Aeronautics and Automobiles. Features of 'SAPSONS' Torque Wrenches: * Sturdy And Robust Design * Guaranteed Accuracy Of ± 3% * Compact Design Facilitate Usage In Confined Areas. * Ensures Correct Torque By Click Sound, Vision And Operator Feeling * Calibrated By Electronic Calibrators To Close Tolerance, Which Are Certified By NPL. * very Torque Wrench Is Supplied With The Calibration Certificate.

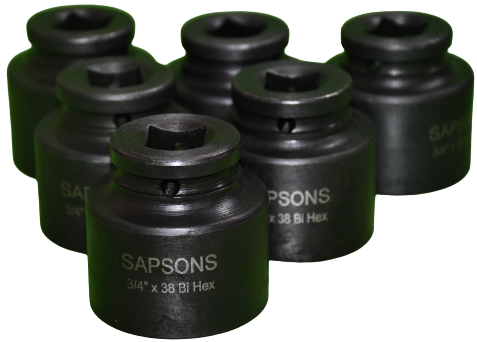

Impact Sockets (Power Sockets ) are one of the very critical products, which used with high torque Power tools like Pneumatic , Electric or Battery operated Impact wrenches, for tightening and loosening of bolts/Nuts. Since it is used for high torque applications, the reliability, performance and safety is very important while selecting the products. Breakage while in use may cause serious accidents, and harm the operator. SAPSONS sockets are most durable and toughest available in the market. Available in Standard , Deep Lengths , Castellated and Spline Drive profiles to meet all the applications. Stress free corner profile: Clearance at corner of both Square drive & Hexagon end of the Sockets ensures load on flank of nut or bolt and eliminates high stress concentration points, thus increasing the impact resistance and the torque transmitting capability. Available in thinwall design also to facilitate the usage in confined areas and critical applications. A/F Across Flats Size - Nominal D Max. Outside dia. Socket end d Max. Outside dia. Sq. Drive end OAL Overall Length - Nominal TH Depth of Socket Form C Depth of Bolt Clearance “Sockets for special applications & as per customer's drawing can be supplied on request."

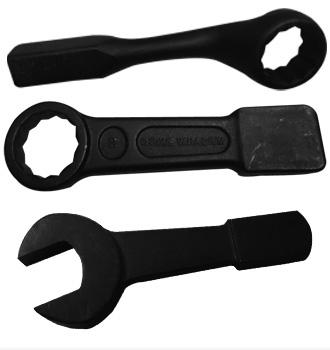

SAPSONS Extra Heavy Duty Slugging / Striking Wrenches are designed for use with hammers where impact or shock loading is required for loosening of frozen and rusty nuts and bolts. These slugging wrenches are duly forged from superior grade special alloy steel. The blanks are duly machined with the wrench openings broached to close tolerance as per federal specifications and undergo a heat treatment process including stress relieving before undergoing short blasting and surface finish operations. SAPSONS Slugging Wrenches are guaranteed for superior performance and durability. Slugging Wrenches are available in – RING PROFILE- Straight Flat , Box type & Offset Handle, OPEN JAW PROFILE– straight Flat and Offset handle , STRUCTURAL WRENCHES – Both Tapered Handle and Tubular Handle types CASTELLED WRENCHES or any special profiles to suit customer’s specific requirements. SAPSONS Slugging Wrenches are available in a range of sizes from 22 mm to 230 mm (7/8" to 9.1/8") across flat. These are suitable for most rigid applications and are useful for fertiliser plants, refineries, petrochemicals, heavy engineering industries, railways, iron and steel manufacturing plants, thermal power stations, etc. Features: * One Piece Forged Construction * Extra Heavy Duty High Impact Resistant * Greater Head Deptt. * Guaranteed Against Premature Failure * Large Striking Face

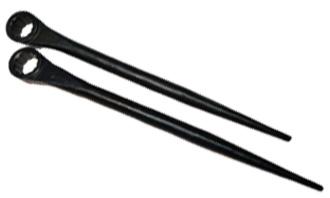

SAPSONS make Structural Wrenches are very unique tools used for tightening of bolts and nuts at a height on steel structures. Having a wrench head at one end and a spike at the other, it is also used for gasket hole alignment with ease, while working at extreme heights.
