Description

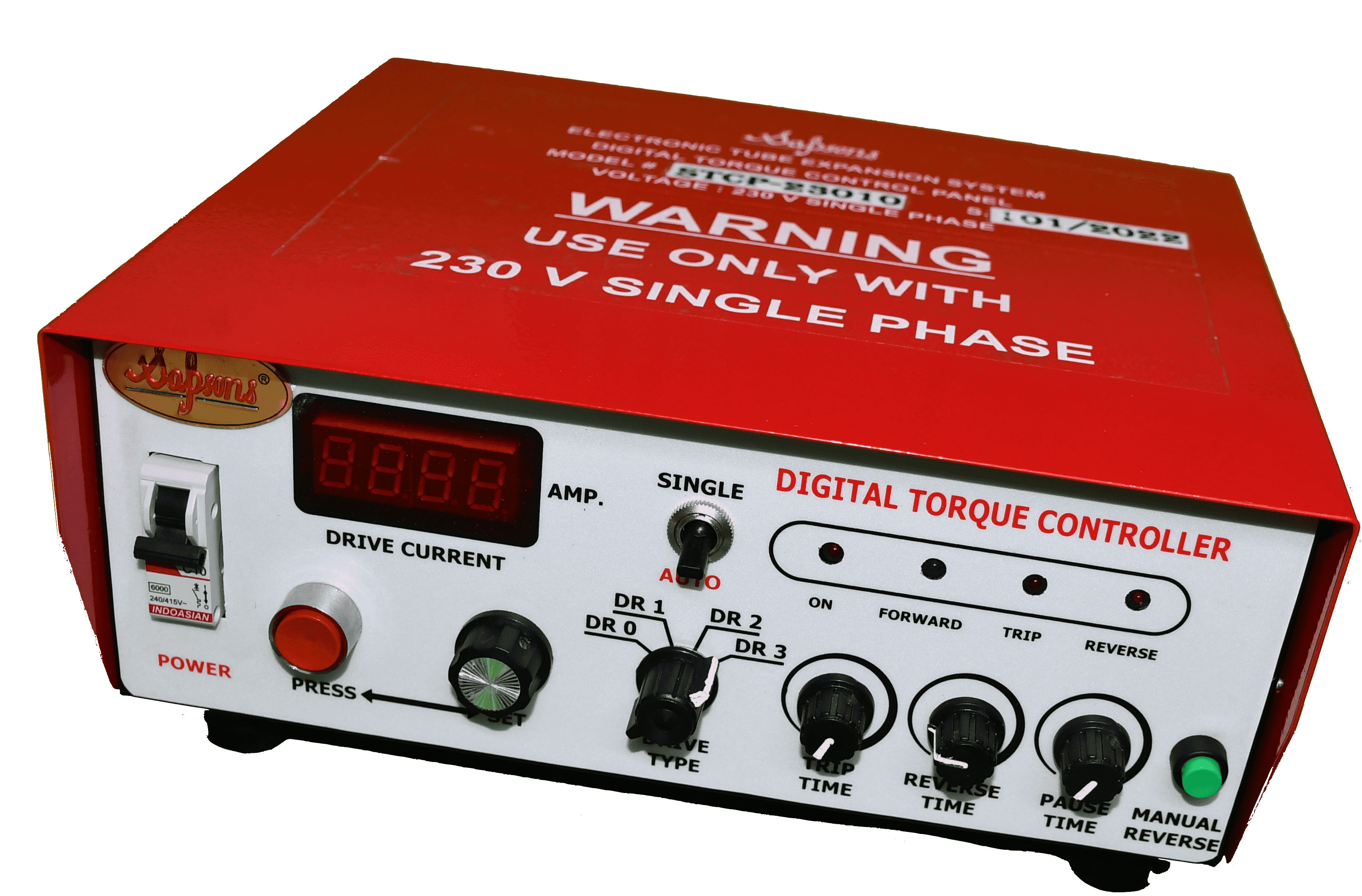

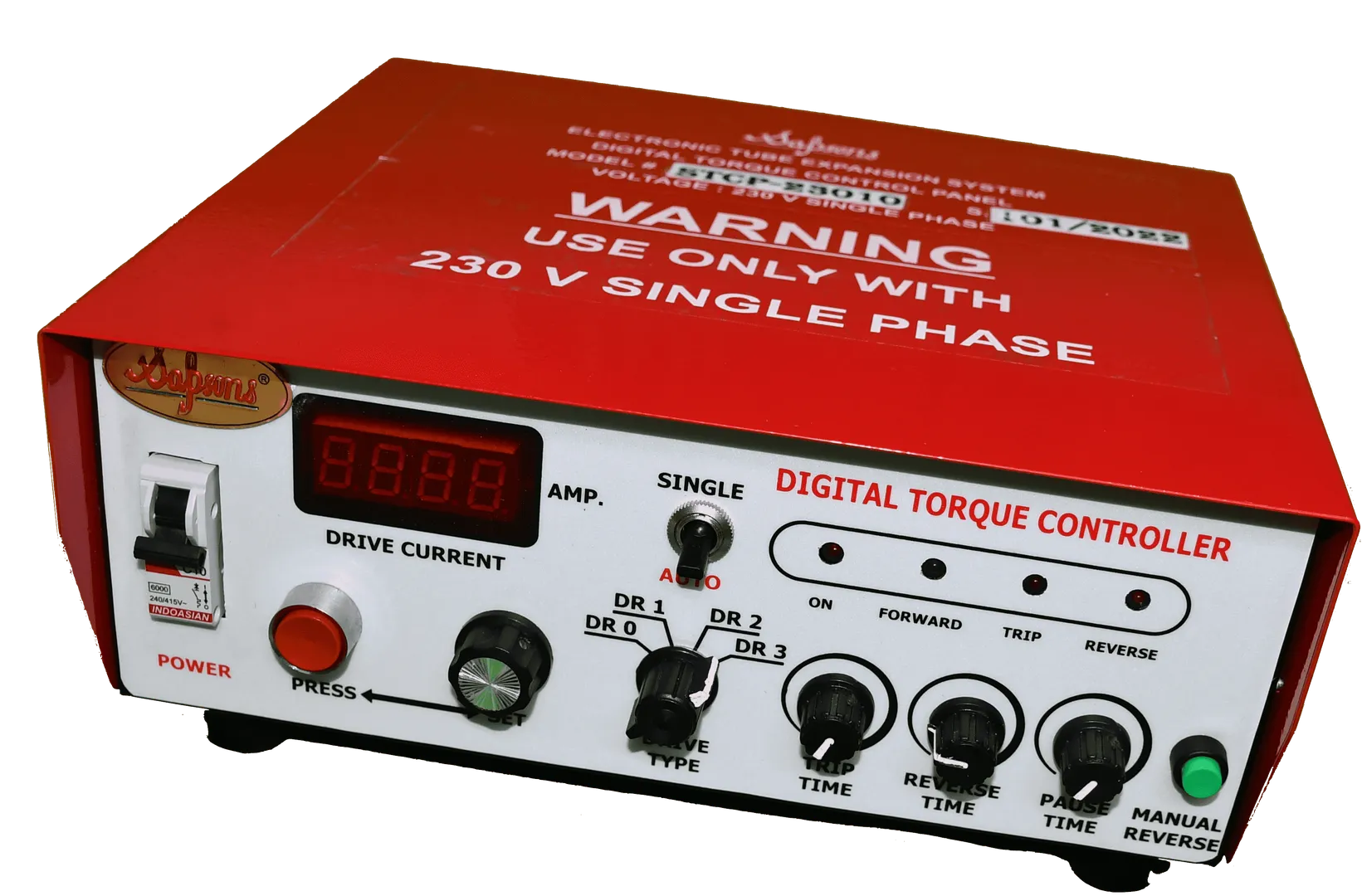

Model No. Voltage 50/60 Hz Weight Approx.(kg.) SWP-110 110V 7.5 SWP-230 230V 7.5 Tube expansion job is very critical and important process in manufacturing Heat Exchangers, Condensers and coolers, which plays vital role in the performance of the equipment. Being one of the final stage applications, over expansion as well as under expansion will lead to the rejection of equipment, thus resulting into loss of valuable man hours and material cost. SAPSONS Wattage Based Fully Automatic digital display Micro controller based Torque control Panel is designed to achieve the expansion within the acceptable parameter, at ease. It ensures the uniform drive power, irrespective of any voltage fluctuations, and transfers the same torque value to the tube expander, in every cycle and expands all the tubes equally. Features : Ø Our Digital Wattage based Torque Controller is Solid state Design without any loose parts, thus noiseless and long life. Ø User friendly Design with latest micro controller chip and One Single main circuit board for easy maintenance. Ø Protection from auto start of drive, in case of power failure, to ensure the safety of operator. Ø Digital torque settings calibrated very accurately (Resolution 1 watt ) for precise torque setting and repetitive uniform expansion. Ø Unique slow start feature enables the long life of carbon brush and the electric drive. Ø Auto recognition of Connected drive thru LED display in the panel and respective wattage range is programmed automatically , to avoid over loading. Ø Setting wattage , drive current, line voltage and drive actual wattage or either displayed or can be seen thru manual press button. Ø Trip , reverse and pause time can be adjusted as per requirement, and emergency manual reverse thru push button. Ø Options for Operation of Drive is available thru Foot or Hand . Ø Both Single cycle mode ( Forward , trip & reverse ) and Auto repeat mode ( Forward , Trip, Reverse with pre-set time, Pause with pre-set time and again repeating the cycle ) is available for the convenience of Tube expansion. Ø Physical operative condition of the drive can be seen thru LED indicators. ( i.e.. forward, reverse and trip) Ø In-built Short circuit protection and Miniature Circuit Breaker (MCB) provides the protection of both Panel and drive against voltage fluctuation or short circuits. Ø Very easy to replace the main PCB by any one. Ø Designed to work between 180 to 270 volts. Ø In-built design to protect the drive from overloading ( Drawing more current). Ø Automatic digital display warning in case of tripping . Ø User friendly design to replace the spares instantly, to minimise the downtime.
