SAPSONS make Structural Wrenches are very unique tools used for tightening of bolts and nuts at a height on steel structures. Having a wrench head at one end and a spike at the other, it is also used for gasket hole alignment with ease, while working at extreme heights.

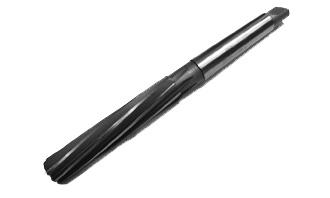

Tube Sheet Hole Reamers SAPSONS High Speed Steel CRYO PROCESSED long fluted Machine Reamer to IS : 5445 having virtually parallel cutting edges with bevel level lead integral with taper shank, ideal for the smooth and accurate Reaming of clearance holes in Tube Sheets, Condenser and Heat Exchangers, Tube Sheet Reamers to meet "TEMA" specifications. SAPSONS High Speed Steel CRYO PROCESSED long fluted Machine Reamer to IS : 5445 having virtually parallel cutting edges with bevel level lead integral with taper shank, ideal for the smooth and accurate Reaming of clearance holes in Tube Sheets, Condensers and Heat Exchangers, Tube Sheet Reamers to meet "TEMA" specifications.

Inserting the tubes in to the Tube sheet and Baffle plates is one of the very important activity , in manufacturing of Heat Exchangers, Condensers , Chiller etc., during which the tube ends often get damaged, result into the rejection of complete tubes , most of the time, particularly in Non-Ferrous tubes. Our Tube Guides are designed to protect the tube ends and simplifying the tube insertion process. The Conical shape of the nose allows the Tube end to self align it to the holes in the baffles plates and the tube sheet. Made out of Aluminium nose with Nylon bristle tails, which hold the Guide into the tube ID ., firmly, while insertion. It can be re-used. Sizes Available For ½” To 2.1/2” OD Tubes.

SAPSONS Hydraulic Cylinders are recognized for its high quality and standard. Our Large and Small Hydraulic Cylinders find various applications in different industries. Available in Single acting with Spring Return, Load Return, Flat Jacks, Low Profile, and Double Acting, Center Hole, Spring Return, Pull, Aluminum Cylinders. We also offer Custom built Hydraulic Cylinders as per the specification and application of our customer.

Bolt tensioners are one of the unique tool to tighten the Flanges with uniform Gasket compression through out the joint. Hydraulic bolt tensioners are best option , in compare to conventional Hydraulic torquing , particularly where the high pressure joints are concerned…It helps to achieve leak free joints, high accuracy , better productivity and improving the life of Gasket joints. SAPSONS’ bolt Tensioners are synonymous to longer life, better performance, less maintenance, and most essentially, value for money. With the latest technology seals used for less down time, SBT Series Bolt Tensioners are user-friendly and versatile in their design and operations and helps in completing the job in shorter time periods. Available for both general purpose as well as for special applications, these tools find a wide applicability in Nuclear Power Plants, Wind Mills, Gas plants, Refineries, Petrochemicals Sector, Oil rigs, Construction industries, Tunneling & Mining, Hydro Power and thermal Power plants. List of Consumable Spares: * Thread Puller * Load Cell * Bridge * Nut Driver How to Use: 1. Slide The Nut Driver Into The Nut. 2. Place The Bridge And Load Cell, Over The Stud 3. Tighten The Thread Puller Over The Stud Into Each Load Cell Until Securely In Contact With The Cylinder Piston. 4. Connect The Hydraulic Hoses To All The Tensioners, As Well To The Pump Manifold. 5. Ensure That The Hoses Are Connected Firmly At Both The Ends. 6. Apply Hydraulic Pressure To The Load Cell ,Which Actuates The Hydraulic Load Cells And Apply Even Load Across The Flange By All The Interconnected Bolt Tensioners. 7. Rotate The Nut Driver Using A Tommy Bar, Till It Touches The Flange Surface Firmly. 8. Release The Tool Pressure And The Bolt Tensioning Procedure Is Complete. 9. Repeat The Same Procedure, To Tighten The Alternative Studs… To be able to deliver a leak free bolted assembly you must apply the correct amount of compressive load to the sealing surface or gasket. Salient Features of Sapsons Bolt Tensioner: * Versatile Design: SBT Series Standard Variable Tensioners Are Designed To Provide A Wide Range Of Flexibility, Covering Stud Sizes 3/4″ To 5.3/4″. Different Stud Sizes Are Accommodated By Simply Changing Adaptor Kit Consisting Of Puller, Bridge & Nut Driver, While Utilizing The Same Load Cell. * High Strength Alloy Steel: The SBT Series Tensioner Operates At A Maximum Pressure Of 1500 Bar & Utilizes High Strength AISl 4340 Steel Parts For Long Lasting Performance. * Stroke Indicator: The SBT Series Tensioner Has An Exceptional Stroke Of 15 Mm. Integral Stroke Indicator Allows Piston Stroke To Be Viewed & Measured Indication Of Stroke Is Provisioned With Over Stroke Limit Indication. * Safe Design: The SBT Series Tensioners Are Designed So That In Event Of Over-Stroke, The High-Pressure Fluid Will Be Released From The Inner Side Of The Load Cell, & Thus Saving The Operator From Possible Exposure. * Multi-Tensioning: The SBT Series Load Cell Is Provisioned With Two Connections & This Acts As Manifold For Multi-Tensioning Applications. By Using SAPSONS High Pressure Link Hoses, Any Number Of Bolt Tensioners Can Be Connected & Tightened Simultaneously. This Ensures Equal Tightening Of All Bolts In The Assy. & Reduce The Work Time. * Anti-Roll Seals: Low Frictions, Anti-Roll Seats & Rigid Backup Rings Incorporated For Improved Life And Reliability. * Floating Piston: The Unique Piston Design Allows 2° Tilt Without Any Loss Of Load, Preventing Piston Seizure Or Damage Of Piston Bore.

SAPSONS Stud Tighteners also known as Stud Drivers is used for speedier tightening of threaded studs with the help of an impact wrench. This is ideal for use in the assembly and maintenance of engines. The range covers stud diameters M5 to M36 (metric) & 1/4" (6.35mm) to 1.1/2" (38.1) UNF/BSF (SAE/BRITISH) in 3/8" to 1" square drives. The tool has a cross hole and groove for locking pin and ring arrangement. Stud Tighteners to suit BSW, BSF, UNC OR UNF Threaded studs also available on request. Extra long Deep Stud tighteners also can be supplied on request. FEATURES: Offered in various ranges from 3/8" to 1" Sq.Drive Sizes from M-5 to M-42 1/4" to1.1/2" in UNC/UNF/BSF/BSW

Hydraulic Flange Spreader : Hydraulic flange spreaders are industrial tools used to separate (spread) flanges safely and efficiently, especially during maintenance, gasket replacement, inspection, or flange joint disassembly in piping systems. They are widely used in oil & gas, petrochemical, power plants, marine, and process industries.

SAPSONS Automatic Grooving Tool besides Catering to various applications for Internal Grooving is specially designed for Matching Grooves in Tube Sheet Holes to aid in Locking Rolled Tubes into Position during Tube Expansion. It incorporates the Proven and accepted Principle of an eccentric Tool Holder turning on its own Axis. As the Tool moves into the work piece/ Tube Sheet, the Pilot nose contacts the face of the work piece/ Tube Sheet, the cutter is now in the position to cut. Continued movement of the Tool starts the feed stroke which actuates the cutter and feeds it readily into the work. The location of cut is controlled by a quick lock Adjustable Collar, the depth of cut is also controlled by a Quick Lock-Stop Nut, which permits simple, fast and accurate adjustments. Features: 1. Accurate and Quick 2. Covers wide range of bores by simply changing cutters & pilot nose 3. User friendly easy to adjust length & depth of cut 4. Automatic two in one design 5. Form cutter and tool bit with different groove configuration can be supplied

Castellated slugging wrenches and sockets are heavy-duty tools engineered for high-impact applications where traditional wrenches cannot deliver the required torque. These tools feature a castellated (slotted) head design, specifically intended to fit over slotted or castle nuts that require alignment for cotter pins or safety wire locking. Built from premium-grade alloy steel, these tools are designed to be struck with a hammer (slugged) to generate greater torque, making them ideal for loosening or tightening large, stubborn fasteners in demanding industrial environments. The castellated profile ensures a secure grip on specialized nuts, preventing slippage and damage during operation. These tools are commonly used in power plants, refineries, petrochemical facilities, mining operations, and heavy equipment maintenance where reliability and safety are critical. Castellated Slugging Wrenches : Available from 2' to 6' Sizes Castellated Sockets : Available in following sizes : 1.1/2 in. Sq. Drive 2.1/2 in. Sq. Drive 3.1/2 in. Sq. Drive
