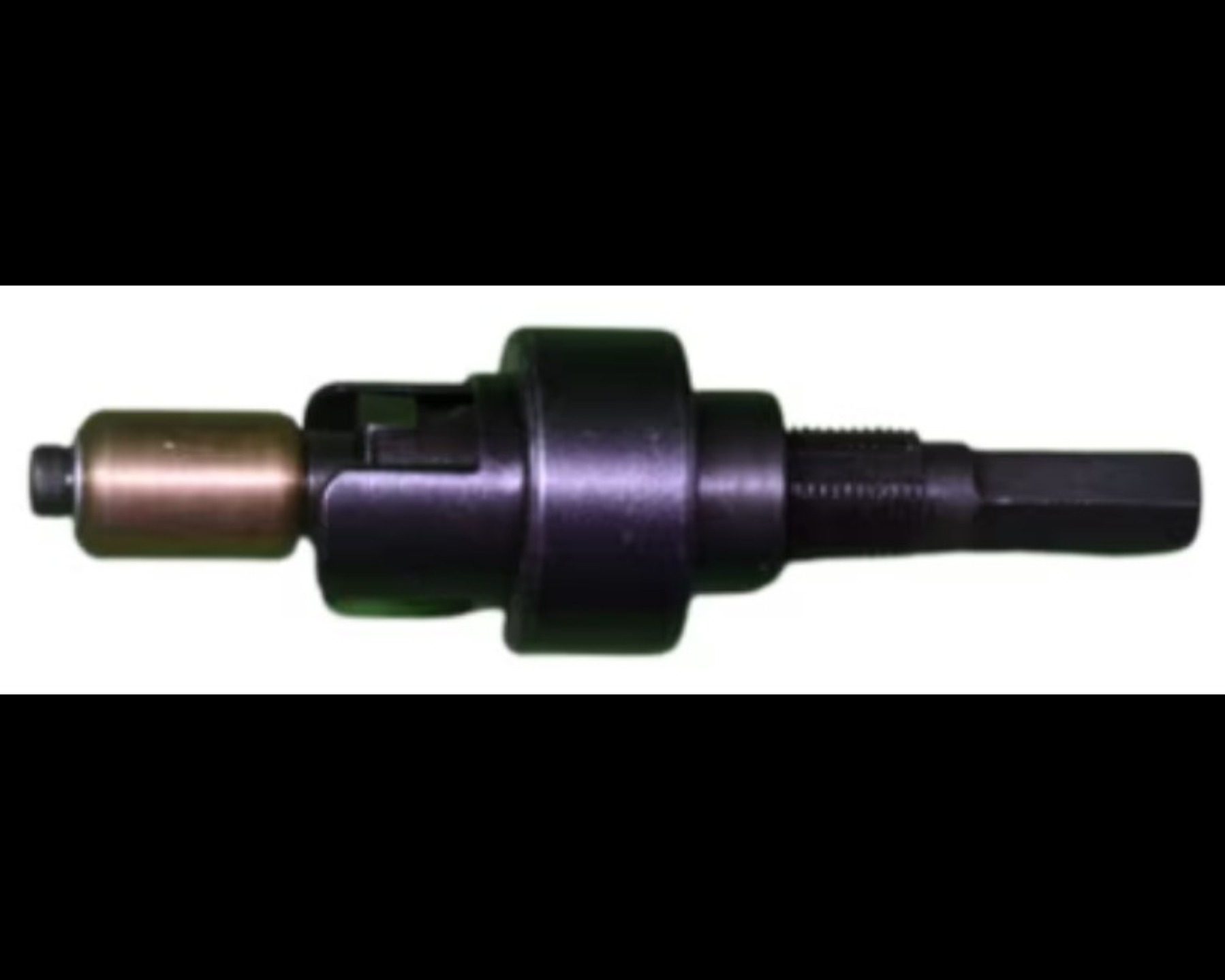

FB Series Tube End Facer – Description & Summary
1. Description
Trimming of Tube ends in Condensers, Chillers, Heat Exchangers is one of the very important application, which needs proper tool. We have made it very simple with the SAPSONS tube end facers, which is available with Square , Flat and Round tool bits. It has the Hexagonal shank, to conveniently use with both Pneumatic and Electric power tools. Except in 3/8” OD tubes, One tool can be used for various thickness of tubes of same OD, by simply changing the Pilot Bush.
The FB Series Tube End Facer is a specialized industrial tool used to machine and smooth the ends of tubes. It is mainly used in industries such as heat exchangers, condensers, boilers, and piping systems to prepare tube ends before installation, welding, or expansion.
The tool works by removing a small layer of metal from the tube end, making the surface flat, smooth, and perpendicular to the tube axis. This process is called tube facing. Proper facing ensures accurate tube projection and a clean surface for sealing or welding.
The FB series tools usually contain Titanium Nitride (TiN) coated cutting bits, which increase durability and provide a longer service life. The cutting bit has two cutting edges and can be reversed, allowing it to be used on both sides and effectively doubling tool life.
These tools are designed for high-speed production work and are commonly driven by electric or pneumatic drills. They are available in different models for tube sizes ranging from 3/8 inch to 2½ inches outer diameter (O.D.
2. Key Features
• High-speed production tool for industrial tube finishing.
• Titanium Nitride coated tool bit for longer life.
• Reversible cutting edge (double-sided blade).
• Provides smooth and accurate tube end finish.
• Available in multiple models for different tube diameters.
• Suitable for carbon steel, non-ferrous, and stainless steel tubes.
3. Working Principle
1. The tool is inserted into the tube with a pilot guide that centers it.
2. The machine rotates the cutting bit.
3. The cutting edge removes excess material from the tube end.
4. The result is a flat and clean tube surface ready for further processing.
4. Applications
FB Series Tube End Facers are used in:
• Heat exchanger tube installation
• Boiler tube maintenance
• Condenser tube repair
• Pipe fabrication and welding preparation
• Industrial maintenance and shutdown work
• Tube End Facing / Trimming
• Weld Trimming
• Tube Flushing
Sizes Available: 3/8” (9.5mm) to 2.1/2” (63.5mm)
Summery:
The FB Series Tube End Facer is a precision tool used to machine and smooth the ends of tubes. It removes a small amount of metal to create a flat, clean, and square tube end. This helps ensure proper fit, alignment, and sealing during welding or tube installation. The tool uses durable cutting bits and can be driven by electric or pneumatic drills. It is commonly used in heat exchangers, boilers, condensers, and piping maintenance.
