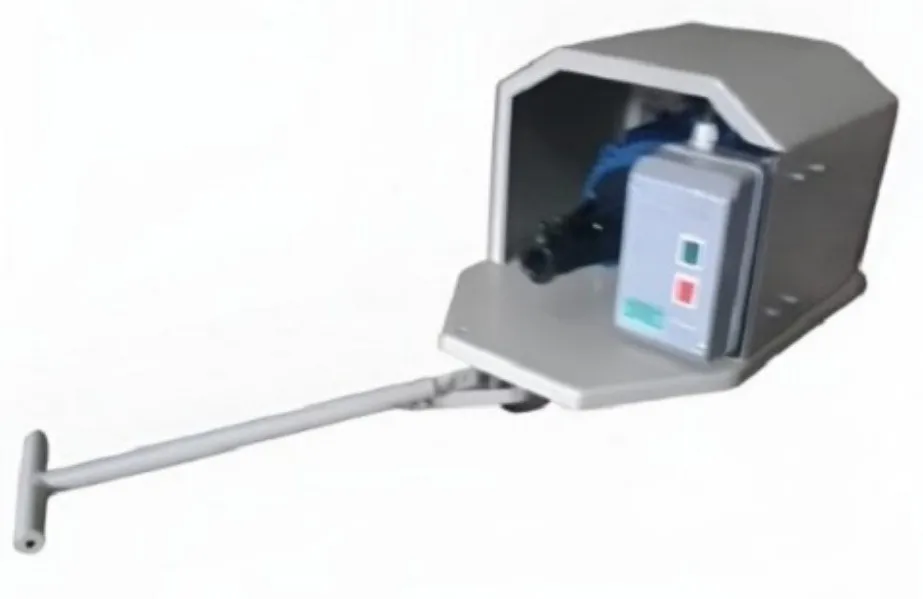

SAPSONS Flexible Shaft Machines are portable industrial tube-cleaning machines designed to remove scale, deposits, sludge and blockages from the inside of tubes used in boilers, heat exchangers, condensers, evaporators, air heaters and sugar-processing equipment.
Description-
The machine uses an electric motor to transmit rotary power through a heavy-duty flexible shaft to a brush, cutter or other tube-cleaning tool. Because the shaft is flexible, it can enter both straight and curved/bent tubes while protecting the tube's internal surface.
Main components:
• TEFC electric motor – provides continuous rotary power.
• Flexible shaft – transfers torque from the motor to the cleaning tool.
• Inner wire core – multi-layer steel-wire construction for flexibility and high torque transmission.
• Outer casing – galvanized steel casing with anti-friction lining that protects the inner core.
• Handpiece – connects the shaft to brushes or tool heads.
• Motor coupling – connects the flexible shaft to the drive unit.
• Cleaning tools/tool heads – used for descaling, cleaning and opening blocked tubes.
Key Specifications
Feature SAPSONS Flexible Shaft Machine
Motor TEFC, squirrel-cage AC motor
Motor capacity 3 HP, 5 HP & 7.5 HP
Electrical supply 440 V, 3-phase, 50 Hz
Speed 1440 or 2880 RPM
Protection Overload, under-voltage & single-phase protection
Starting Push-button starter
Power cable Approx. 20 ft
Shaft OD 25, 32 & 36 mm
Shaft core 12, 16 & 19 mm
Standard shaft length 6–22 m
Longer lengths Available on request.
Applications
SAPSONS Flexible Shaft Machines are particularly suitable for:
• Boiler tube cleaning
• Heat exchanger tube cleaning
• Condenser and chiller maintenance
• Evaporator cleaning
• Air-heater tube cleaning
• Sugar-plant equipment
• Petrochemical and refinery equipment
• Power-plant maintenance
• Removal of hard scale, sludge and deposits from tubes.
Advantages
1. Portable and rugged – suitable for industrial maintenance work.
2. High torque transmission – capable of driving heavy-duty cleaning tools.
3. Works through bends – flexible shafts can reach curved tube sections.
4. Reduced tube damage – the outer casing protects the shaft and tube interior.
5. Low maintenance – designed for reliable, continuous service.
6. Multiple shaft options – different diameters and lengths are available.
7. Interchangeable tools – different brushes, cutters and descaling heads can be selected according to the deposit and tube condition.
