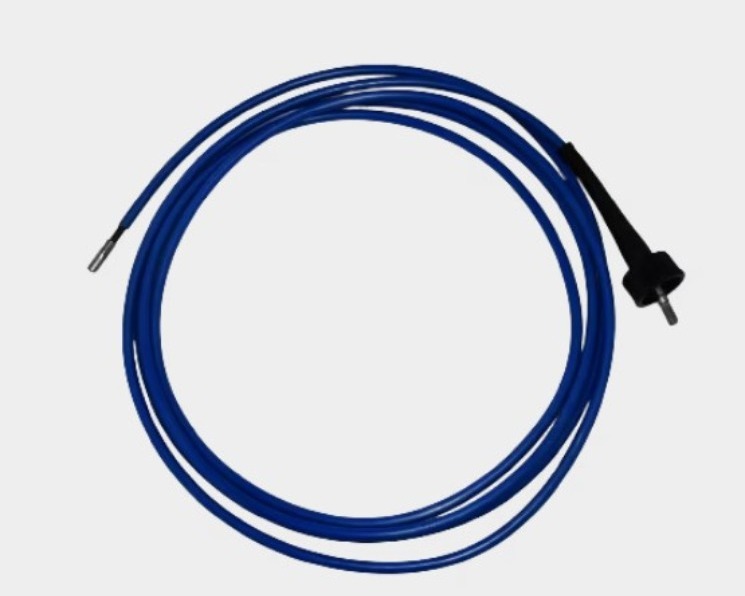

Heavy Duty Flexible Shafts

SAPSONS Heavy Duty Flexible Shafts are specially engineered industrial cleaning shafts designed for efficient tube and pipe cleaning applications in boilers, condensers, heat exchangers, evaporators, air heaters, and other processing equipment. These shafts are capable of transmitting high rotary power from the drive machine to the cleaning tool while flexibly moving through straight or bent tubes without damaging the internal surface. Construction & Components The SAPSONS Heavy Duty Flexible Shaft consists of four major components: • Inner Wire Core – The primary working element made from multiple layers of high-strength wires wound in alternating directions around a central wire for superior torque transmission and flexibility. • Outer Casing – Manufactured from galvanized steel strip with anti-friction internal lining to protect the core and resist wear and torque. • Handpiece – Attached at one end of the shaft for connecting brushes, cutters, or tool heads. • Motor Coupling – Fixed at the opposite end for connection to the power drive unit using threaded or shear-pin arrangements. Key Features : • High flexibility for navigating curved or bent tubes • Excellent torque transmission capability • Rugged and durable construction • Anti-friction protective casing • Suitable for heavy-duty industrial cleaning applications • Available in multiple diameters and customized lengths • Compatible with various tube cleaning brushes and tool heads Available Sizes : SAPSONS Heavy Duty Flexible Shafts are generally available in: • Outer Diameter (OD): 25 mm, 32 mm, and 36 mm • Inner Core Sizes: 12 mm, 16 mm, and 19 mm • Standard Lengths: 6 to 22 meters • Custom longer lengths available on request. Available in 25mm (1”), 32mm (1.1/4”) and 36mm (1.3/8”) OD with 12mm (1/2”), 16mm (5/16”) and 19 mm (3/4”) inner core respectively, with various length of 6 to 22 mtrs. Long. Longer length is also available on request. Applications : These flexible shafts are widely used for: • Boiler tube cleaning • Heat exchanger maintenance • Condenser tube descaling • Sugar plant equipment cleaning • HVAC and chiller tube cleaning • Removal of scale, sludge, and hard deposits from industrial tubes. Advantages : • Improves equipment efficiency and heat transfer • Reduces downtime and maintenance cost • Ensures safe cleaning without damaging tube interiors • Provides long service life with minimal maintenance • Suitable for continuous industrial operation. Summary of SAPSONS Heavy Duty Flexible Shafts : SAPSONS Heavy Duty Flexible Shafts are industrial-grade tube cleaning shafts designed to transmit rotary power efficiently through straight and curved tubes without damaging the inner surface. These shafts are widely used in boilers, heat exchangers, condensers, evaporators, and other processing equipment for removing scale, sludge, and hard deposits. The shaft assembly consists of four main components: • Inner wire core • Outer protective casing • Handpiece • Motor coupling The inner core is made of multi-layered high-strength wires for excellent torque transmission and flexibility, while the galvanized outer casing with anti-friction lining protects the shaft during operation. Key features include: • High flexibility for bent tubes • Strong torque capacity • Durable construction • Smooth and safe tube cleaning • Compatibility with brushes and tool heads • Availability in multiple sizes and lengths SAPSONS Heavy Duty Flexible Shafts are Available in 25mm (1”), 32mm (1.1/4”) and 36mm (1.3/8”) OD with 12mm (1/2”), 16mm (5/16”) and 19 mm (3/4”) inner core respectively, with various length of 6 to 22 mtrs. Long. custom lengths also available on request.
