Description
FEATURES & APPLICATIONS :

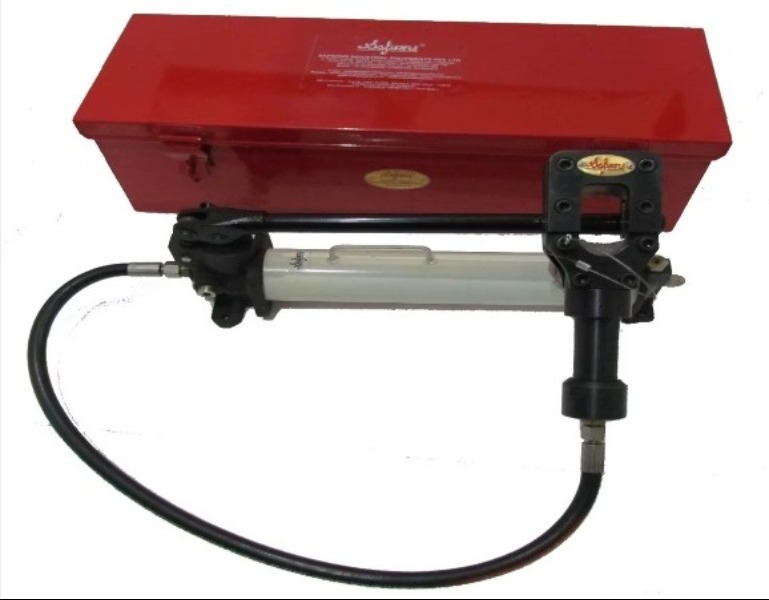

• Used to cut conductors up to 40 MM DIA
• Operation similar to a hydraulic jack
• Knob-handle is turned to enable lineman to operate pump handle
• When cut is completed, knob is turned in opposite direction to allow cutting head to open
• Epoxiglass pole, handle and hydraulic hose have been tested upto 700 bar working pressure.
• Hydraulic oil grade 68 is used in Hand pump.
• Hose has a minimum burst strength of 15, 000 PSI
• Features include jaws designed to cut without flattening conductor.
• Jaws are made out of special alloy steel for long and trouble free application
• Well balanced, requiring minimum effort to cut large conductors.
