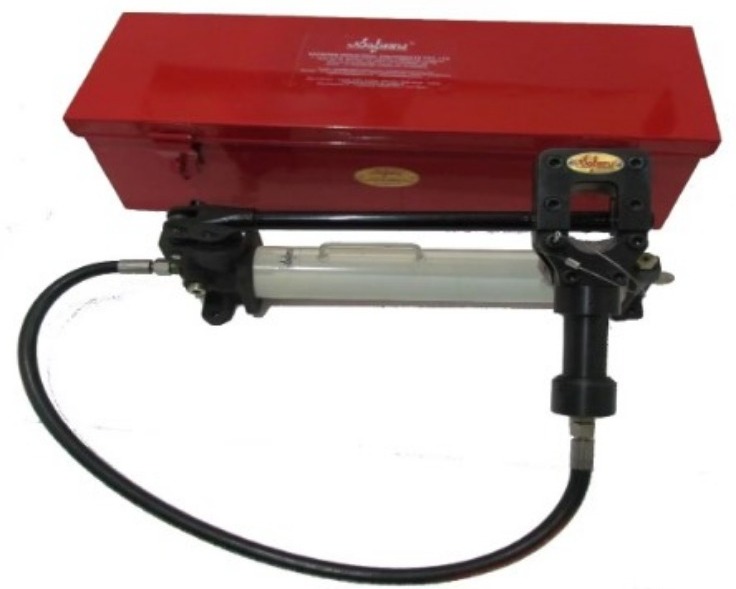

The SAPSONS Heavy Duty Hydraulic ACSR Conductor Cutter is a heavy-duty hydraulic tool designed for cutting ACSR (Aluminium Conductor Steel Reinforced) conductors used in overhead transmission and distribution lines. Manufactured by SAPSONS, this cutter is engineered for utility, transmission line, and electrical maintenance applications.
Description
The cutter is capable of cutting conductors up to 40 mm diameter and operates similarly to a hydraulic jack, enabling smooth and controlled cutting with minimum manual effort. It is specially designed to deliver clean cuts without flattening or damaging the conductor strands.
Key Features :
• Suitable for cutting ACSR conductors up to 40 mm DIA
• Hydraulic jack-type operation for easy handling
• Knob-handle mechanism enables smooth pump operation
• Reverse knob action opens the cutting head after completion
• Epoxiglass pole, handle, and hydraulic hose tested up to 700 bar working pressure
• Hydraulic hose minimum burst strength of 15, 000 PSI
• Uses Hydraulic Oil Grade 68 in the hand pump
• Special alloy steel jaws for long service life and reliable performance
• Balanced construction requiring minimum operator effort
• Designed to cut large conductors cleanly without flattening them
Applications :
• Overhead transmission line work
• Electrical utility maintenance
• Maintenance and replacement of ACSR conductors.
• Utility and power distribution projects.
• EHV (Extra High Voltage) transmission-line work.
Advantages :
• Heavy-duty and durable construction
• Safe and efficient hydraulic operation
• Reduced operator fatigue
• Suitable for field operations and rugged environments
• Precision cutting for transmission conductors
The SAPSONS Heavy Duty Hydraulic ACSR Conductor Cutter is a specialized Hydraulic Tool designed for cutting ACSR (Aluminium Conductor Steel Reinforced) conductors used in overhead transmission and distribution lines. It is engineered to provide clean, efficient cuts with minimal operator effort.
In Summary,
The SAPSONS Heavy Duty Hydraulic ACSR Conductor Cutter is a robust hydraulic tool designed for cutting ACSR (Aluminium Conductor Steel Reinforced) conductors used in transmission and distribution lines. It can cut conductors up to 40 mm diameter with minimal effort and provides smooth, clean cutting without damaging the conductor strands. The tool operates like a hydraulic jack and features special alloy steel jaws for durability and long service life. It is equipped with a high-pressure hydraulic system tested up to 700 bar, making it suitable for heavy-duty field applications in power and utility industries.
Description
The cutter is capable of cutting conductors up to 40 mm diameter and operates similarly to a hydraulic jack, enabling smooth and controlled cutting with minimum manual effort. It is specially designed to deliver clean cuts without flattening or damaging the conductor strands.
Key Features :
• Suitable for cutting ACSR conductors up to 40 mm DIA
• Hydraulic jack-type operation for easy handling
• Knob-handle mechanism enables smooth pump operation
• Reverse knob action opens the cutting head after completion
• Epoxiglass pole, handle, and hydraulic hose tested up to 700 bar working pressure
• Hydraulic hose minimum burst strength of 15, 000 PSI
• Uses Hydraulic Oil Grade 68 in the hand pump
• Special alloy steel jaws for long service life and reliable performance
• Balanced construction requiring minimum operator effort
• Designed to cut large conductors cleanly without flattening them
Applications :
• Overhead transmission line work
• Electrical utility maintenance
• Maintenance and replacement of ACSR conductors.
• Utility and power distribution projects.
• EHV (Extra High Voltage) transmission-line work.
Advantages :
• Heavy-duty and durable construction
• Safe and efficient hydraulic operation
• Reduced operator fatigue
• Suitable for field operations and rugged environments
• Precision cutting for transmission conductors
The SAPSONS Heavy Duty Hydraulic ACSR Conductor Cutter is a specialized Hydraulic Tool designed for cutting ACSR (Aluminium Conductor Steel Reinforced) conductors used in overhead transmission and distribution lines. It is engineered to provide clean, efficient cuts with minimal operator effort.
In Summary,
The SAPSONS Heavy Duty Hydraulic ACSR Conductor Cutter is a robust hydraulic tool designed for cutting ACSR (Aluminium Conductor Steel Reinforced) conductors used in transmission and distribution lines. It can cut conductors up to 40 mm diameter with minimal effort and provides smooth, clean cutting without damaging the conductor strands. The tool operates like a hydraulic jack and features special alloy steel jaws for durability and long service life. It is equipped with a high-pressure hydraulic system tested up to 700 bar, making it suitable for heavy-duty field applications in power and utility industries.
