Description :

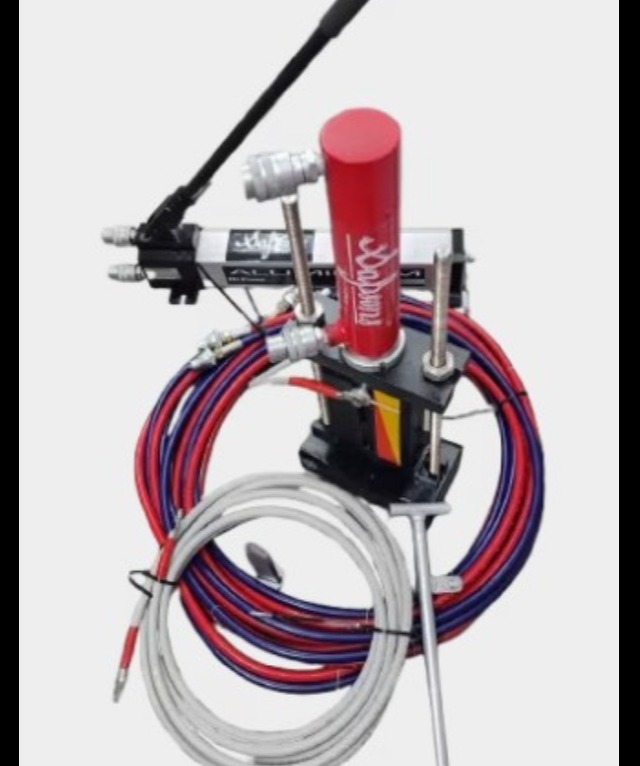

A Hydraulic cable spiking tool uses hydraulic pressure to drive a hardened metal spike through an electrical cable. If the cable is live, the spike will safely create a controlled short circuit to ground, immediately tripping protective systems (like circuit breakers). This confirms the cable’s status and prevents accidental electrocution.
Key Components:
• Hydraulic pump (manual or powered)
• Insulated hydraulic hose
• Spiking head with a hardened steel spike
• Protective housing for operator safety
• Remote operation mechanism (to keep distance from the cable)
How It Works :-
1. The tool is positioned around the cable.
2. The operator activates the hydraulic system (often from a safe distance).
3. The spike is driven through the cable.
4. If the cable is live, a fault occurs and protection systems trip.
5. If no reaction occurs, the cable is confirmed de-energized.
Summary :
A Hydraulic Cable Spiking Tool is a critical safety instrument used in high-voltage electrical environments. It ensures worker safety by positively identifying dead cables before cutting, using a controlled and remote-operated spiking mechanism. It is widely used by utility companies, electrical contractors, and maintenance teams to prevent accidents and ensure safe cable handling.
