Description:
Hydraulic cylinders and hydraulic jacks are mechanical devices that use hydraulic pressure (liquid pressure) to generate large linear force and motion. They operate based on the principle of Pascal’s Law, which states that pressure applied to a confined fluid is transmitted equally in all directions.
A hydraulic cylinder converts hydraulic energy into linear mechanical force and movement, commonly used in heavy machinery and industrial equipment.
A hydraulic jack is a lifting device that uses hydraulic pressure to lift heavy loads, such as vehicles or machinery.
Both devices typically use hydraulic oil as the working fluid.
Main Components:
Typical components of a hydraulic cylinder/jack include:
1. Cylinder barrel – The main body where the piston moves.
2. Piston – Moves inside the cylinder due to fluid pressure.
3. Piston rod – Connects the piston to the external load.
4. Seals – Prevent leakage of hydraulic fluid.
5. Hydraulic fluid (oil) – Transfers force within the system.
6. Pump – Creates hydraulic pressure.
7. Reservoir – Stores the hydraulic fluid.
Working Principle:
1. Hydraulic fluid is pumped into the cylinder chamber.
2. The pressure acts on the piston surface.
3. Due to Pascal’s law, a small input force produces a large output force.
4. The piston moves outward, lifting or pushing the load.
5. When the fluid is released, the piston returns to its original position.
Types:
Hydraulic Cylinders
• Single-acting cylinder – Pressure applied in one direction only.
• Double-acting cylinder – Pressure applied in both directions for forward and backward movement.
Hydraulic Jacks
• Bottle jack – Vertical, compact design used for vehicles.
• Floor jack – Used in garages and workshops.
• Toe jack – Used to lift heavy machinery from low clearance.
Applications
Hydraulic cylinders and jacks are widely used in:
• Construction equipment (excavators, cranes)
• Automotive lifting systems
• Industrial machines
• Aircraft landing gear systems
• Agricultural machinery
Advantages:
• Produces very high force
• Smooth and precise movement
• Compact design
• Can lift very heavy loads
Limitations:
• Possible oil leakage
• Requires regular maintenance
• Performance affected by temperature changes

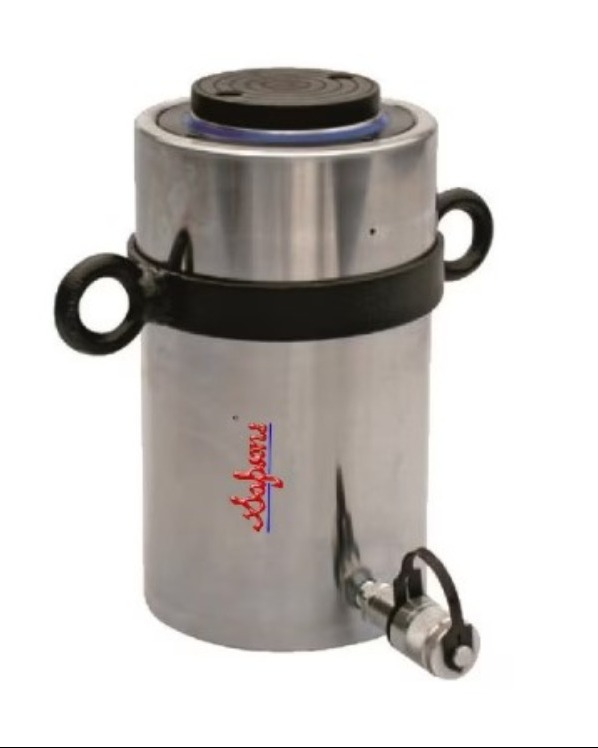

SAPSONS Hydraulic Cylinders are recognized for its high quality and standard. Our Large and Small Hydraulic Cylinders find various applications in different industries. Available in Single acting with Spring Return, Load Return, Flat Jacks, Low Profile, and Double Acting, Center Hole, Spring Return, Pull, Aluminum Cylinders.
Summary:
Hydraulic cylinders and hydraulic jacks are devices that use pressurized fluid to generate strong linear force. Based on Pascal’s law, they allow small input forces to lift or move heavy loads efficiently, making them essential in industries such as construction, automotive, and manufacturing.
We also offer Custom built Hydraulic Cylinders as per the specification and application of our customer.
