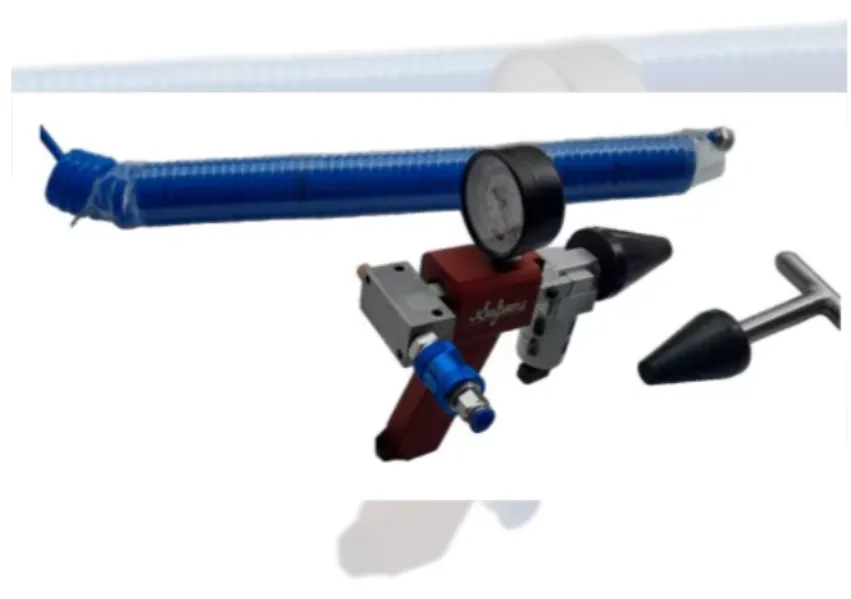

The SAPSONS Vacuum Tube Leak Tester is a portable tube-testing instrument designed to quickly detect leaks in individual tubes used in heat exchangers, condensers, boilers, chillers, evaporators, and other tubular equipment. It works by sealing one end of the tube and using compressed air to create a vacuum inside it. The built-in vacuum gauge is then monitored: a stable vacuum indicates a leak-free tube, while a dropping vacuum indicates leakage.
Key Features
• Portable and lightweight design, approximately 2 kg.
• Suitable for tube sizes from 1/4 inch to 3 inches OD (6.3–76.2 mm).
• Requires approximately 90 psi (6 bar) compressed air.
• Built-in analog vacuum gauge for easy monitoring.
• Interchangeable tube seals accommodate different tube diameters.
• Simple operation and suitable for maintenance and shutdown inspections.
Applications
The tester is useful for leak detection in:
• Surface condensers
• Shell-and-tube heat exchangers
• Boilers
• Chillers
• Evaporators
• Process cooling equipment
Key Features
• Portable and lightweight design, approximately 2 kg.
• Suitable for tube sizes from 1/4 inch to 3 inches OD (6.3–76.2 mm).
• Requires approximately 90 psi (6 bar) compressed air.
• Built-in analog vacuum gauge for easy monitoring.
• Interchangeable tube seals accommodate different tube diameters.
• Simple operation and suitable for maintenance and shutdown inspections.
Applications
The tester is useful for leak detection in:
• Surface condensers
• Shell-and-tube heat exchangers
• Boilers
• Chillers
• Evaporators
• Process cooling equipment
