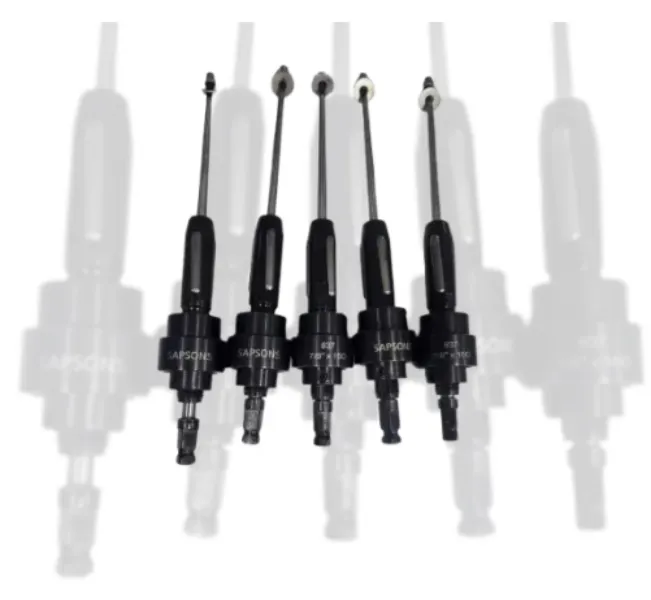

Tube Expander - 800 SERIES

The 800 Series is designed primarily for medium-size tubes used in heat-transfer and industrial equipment. The expander uses a rolling mechanism in which rollers are driven against the inside wall of the tube. As the tool rotates, the rollers expand the tube uniformly against the tube sheet.

It is suitable for applications such as:
• Heat exchangers
• Condensers
• Boilers and pressure vessels
• Oil coolers
• Chillers and HVAC equipment
• Feedwater heaters
• General industrial tube installation and maintenance
The series is available with different roller lengths and configurations to suit the required tube expansion depth.

Working Principle

The tube expander is inserted into the tube and driven by a suitable rotating drive. The internal rollers rotate and press against the tube wall, causing the tube to expand outward into the tube-sheet hole. This controlled expansion produces a firm mechanical fit and helps prevent leakage.

Key Features

• Mechanical 3-roller adjustable expansion design.
• Designed for consistent and uniform tube expansion.
• Suitable for medium-size industrial tubes.
• Available with different roller lengths.
• Can be used with suitable tube-rolling drives.
• Durable construction for repeated industrial use.
• Designed to produce strong, leak-resistant tube-to-tube-sheet joints.
